Circuit Protection > PTC Resettable Fuses

SMD030F-2 - Littelfuse

PTC Resettable Fuse 0.3A(hold) 0.6A(trip) 60VDC 10A 1.7W 3s 1.2Ohm SMD Solder Pad 2920 T/R

Technical Details

Ambient Temperature Range High	85°C
China RoHS	Compliant
Country of Origin	Mainland China
Current Rating	10A
Export Control Classification Number (ECCN) Code	EAR99
Height	3.18mm
Hold Current	300mA
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	2010-11-19
Length	7.98mm
Lifecycle Status	Production
Max Current Rating	10A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	4.8Ω
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	1.2Ω
Mount	Surface Mount
Number of Terminals	2
Operating Supply Voltage	60V
Packaging	Tape & Reel
Power Dissipation	1.7W
REACH SVHC	Yes
Resistance	1.2Ω
RoHS	Compliant
Time to Trip	3s
Trip Current	600mA
Voltage Rating	60V
Width	5.44mm
Working Voltage	60V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse SMD030F-2 | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

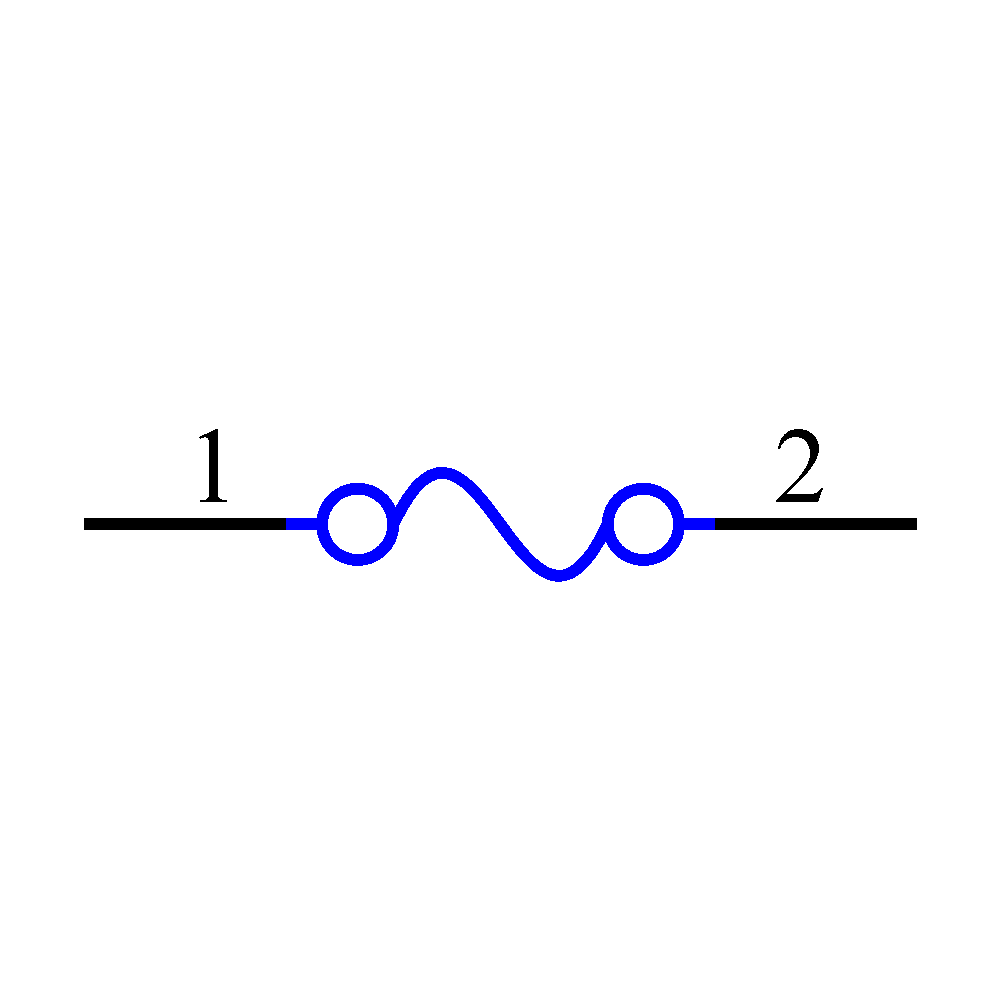

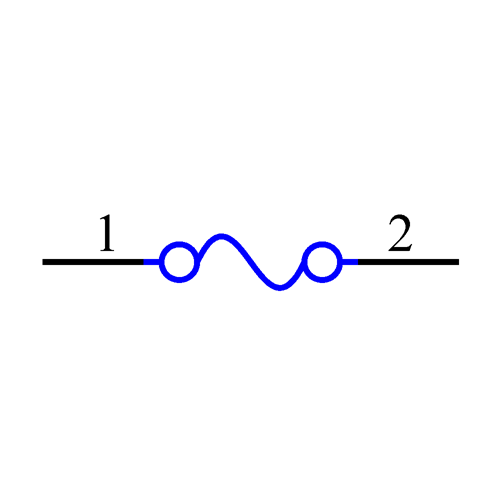

Symbol

SMD030F-2 Symbol - Littelfuse

SMD030F-2 Symbol - Littelfuse

SMD030F-2 Symbol - Littelfuse

SMD030F-2 Symbol - Littelfuse

‹ ›

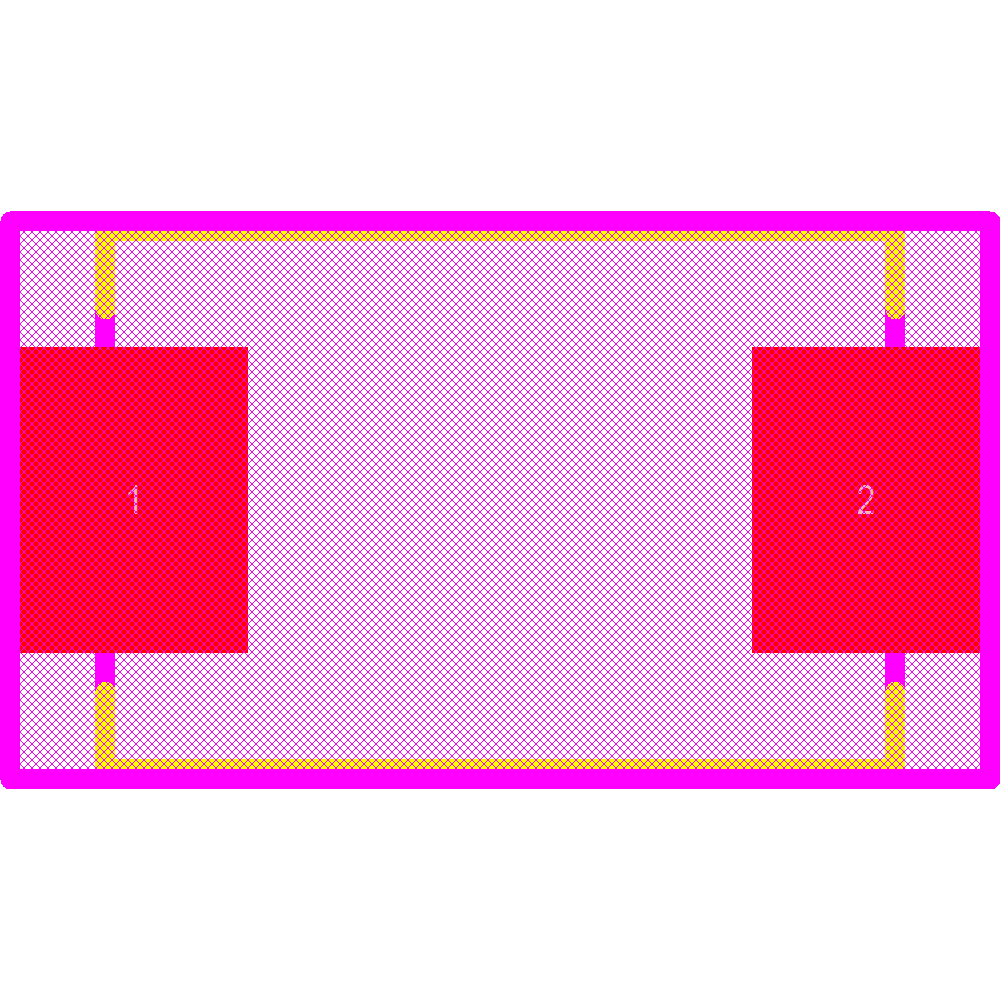

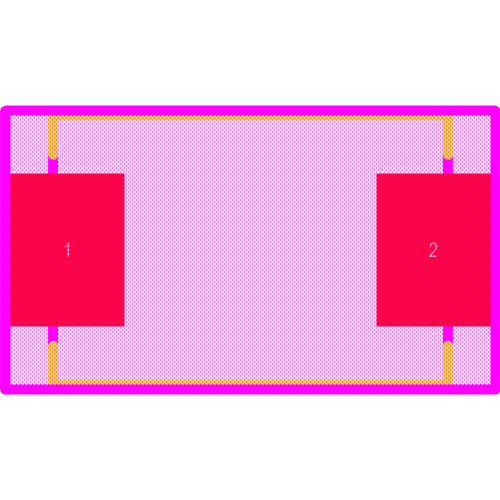

Footprint
