Circuit Protection > PTC Resettable Fuses

SMD075F-2 - Littelfuse

PTC Resettable Fuse 1.1A(hold) 1.5A(trip) 30V 40A 1.7W 0.35Ohm SMD Solder Pad 2920 T/R

Technical Details

Ambient Temperature Range High	85°C
Current Rating	40A
Export Control Classification Number (ECCN) Code	EAR99
Height	3.18mm
Hold Current	750mA
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	2010-11-02
Length	7.98mm
Lifecycle Status	Production
Max Current Rating	40A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	1Ω
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	350mΩ
Mount	Surface Mount
Number of Terminals	2
Operating Supply Voltage	30V
Packaging	Tape & Reel
Power Dissipation	1.7W
REACH SVHC	Yes
Resistance	350mΩ
RoHS	Compliant
Time to Trip	300ms
Trip Current	1.5A
Voltage Rating	30V
Width	5.44mm
Working Voltage	30V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse SMD075F-2 | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

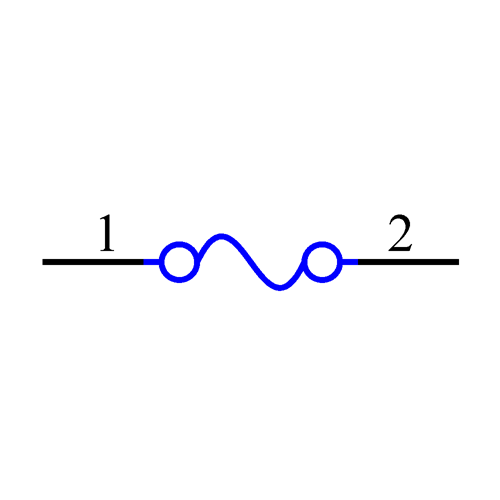

SMD075F-2 Symbol - Littelfuse

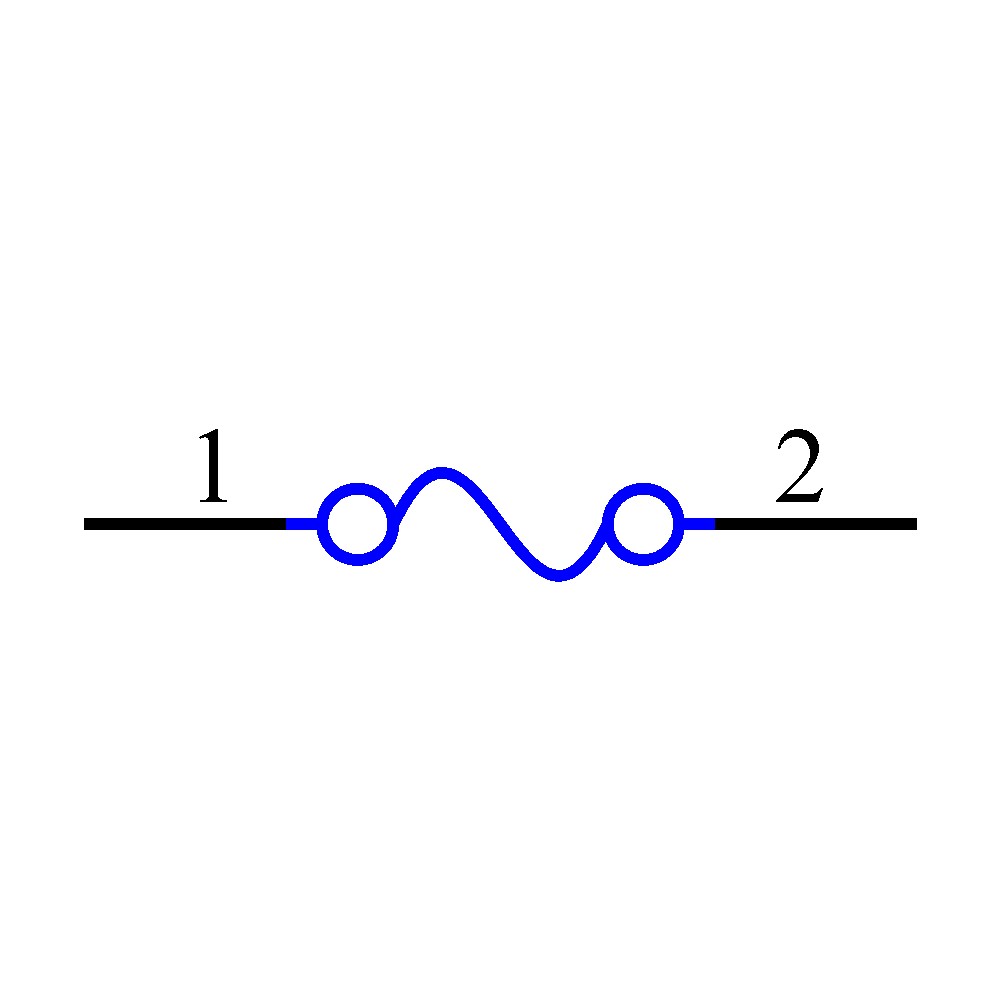

SMD075F-2 Symbol - Littelfuse

SMD075F-2 Symbol - Littelfuse

SMD075F-2 Symbol - Littelfuse

‹ ›

Footprint

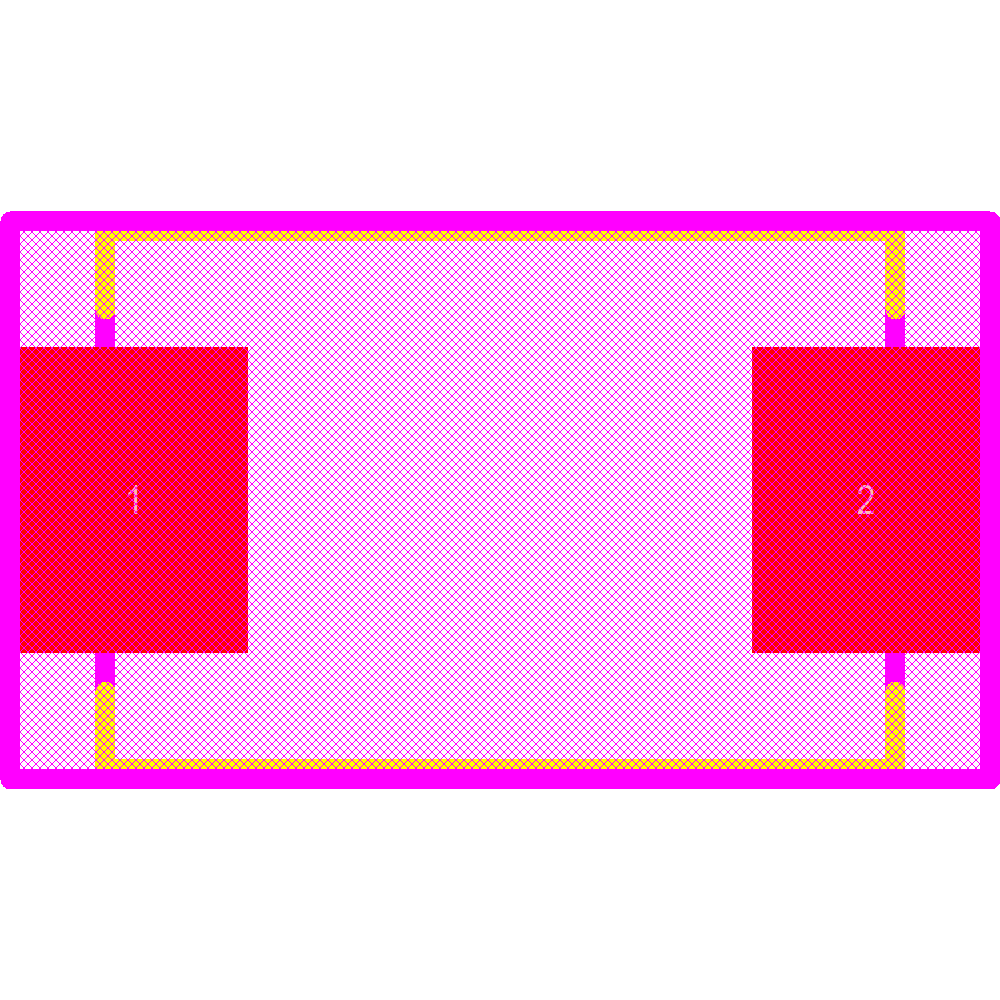

SMD075F-2 Footprint - Littelfuse

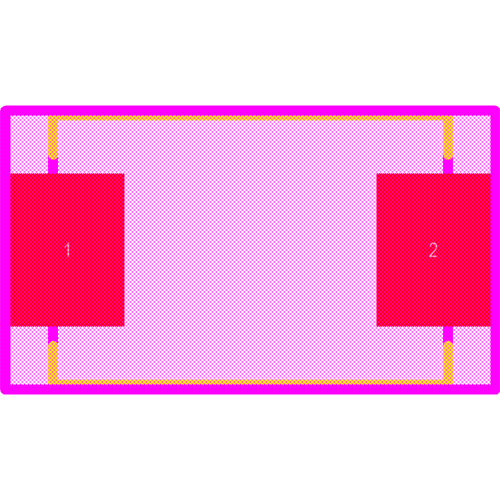

SMD075F-2 Footprint - Littelfuse
