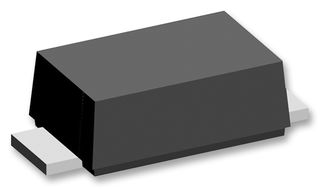

SMF22A - Littelfuse
ESD protection diodes / TVS diodes; LITTELFUSE; SMF22A; 35.5 V; 5.6 A; 22 V; 24.4 V - 26.9 V
Technical Details
| Breakdown Voltage | 25.65V |
| China RoHS | Non-Compliant |
| Clamping Voltage | 35.5V |
| Composition | Zener |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2012-03-01 |
| Lead Free | Contains Lead |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 26.9V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 5.6A |
| Min Breakdown Voltage | 24.4V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Peak Pulse Current | 5.6A |
| Peak Pulse Power | 1kW |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 22V |
| Reverse Voltage | 22V |
| RoHS | Compliant |
| Schedule B | 8541100080 |
| Termination | SMD/SMT |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
