SP0503BAHTG - Littelfuse
SP050xBA Series 8.5 V 30 pF Triple Uni-Directional TVS Avalanche Diode-SOT143-4
Technical Details
| Breakdown Voltage | 5.5V |
| Capacitance | 30pF |
| Case/Package | SOT-143 |
| China RoHS | Compliant |
| Clamping Voltage | 6.8V |
| Composition | Zener |
| Depth | 1.4mm |
| Diode Type | Avalanche |
| Direction | Unidirectional |
| Element Configuration | Common Anode |
| ESD Protection | Yes |
| Height | 1.22mm |
| Lead Free | Lead Free |
| Leakage Current | 100nA |
| Length | 3.04mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 225mW |
| Max Reverse Leakage Current | 100nA |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 3 |
| Number of Elements | 3 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Number of Unidirectional Channels | 3 |
| Operating Supply Voltage | 5.5V |
| Peak Pulse Power | 225mW |
| Polarity | Unidirectional |
| Power Dissipation | 225mW |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5.5V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Termination | SMD/SMT |
| Voltage Rating (DC) | 5V |
| Width | 1.4mm |
| Working Voltage | 5.5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

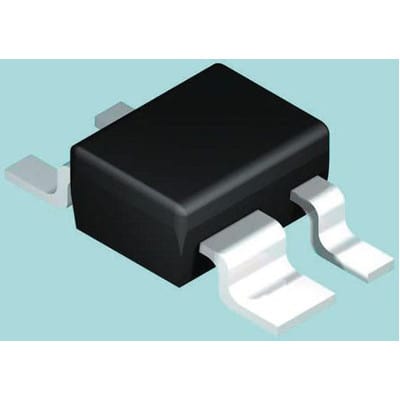

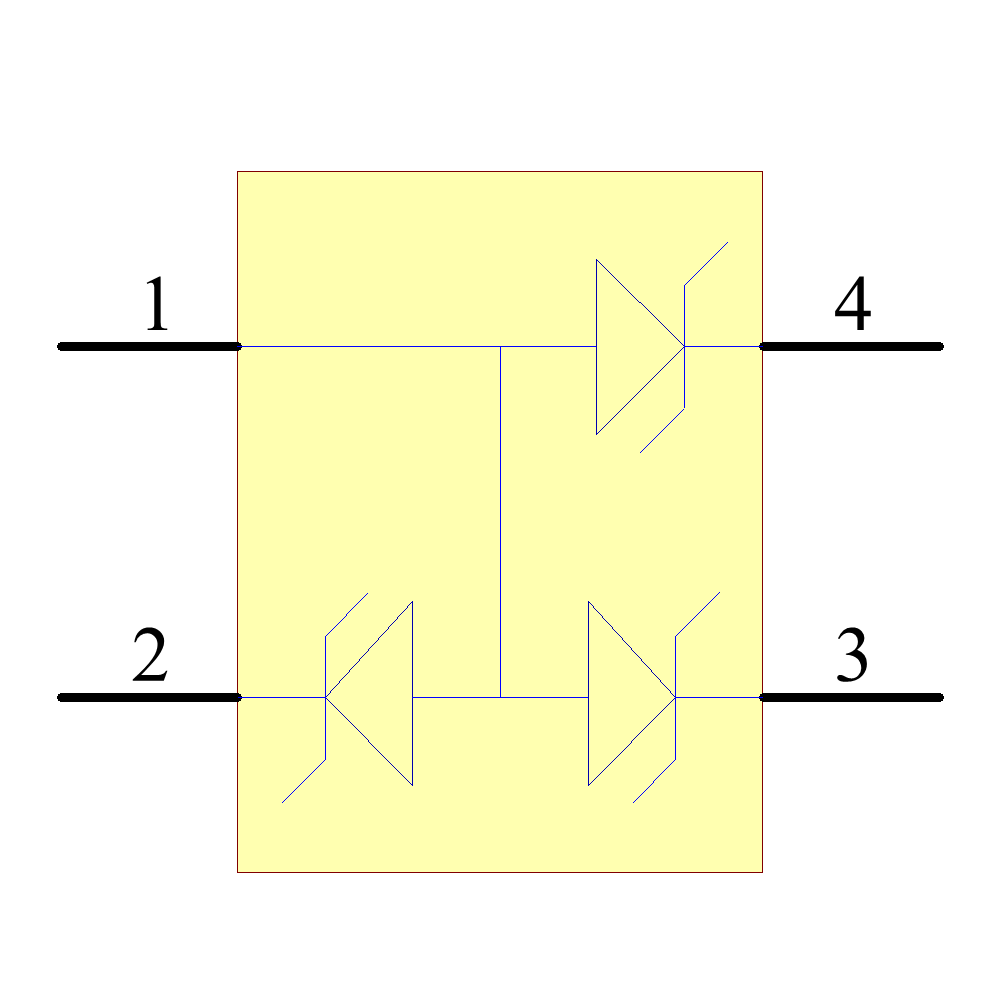

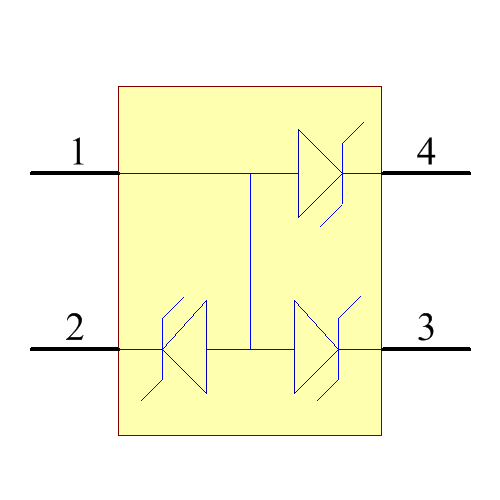

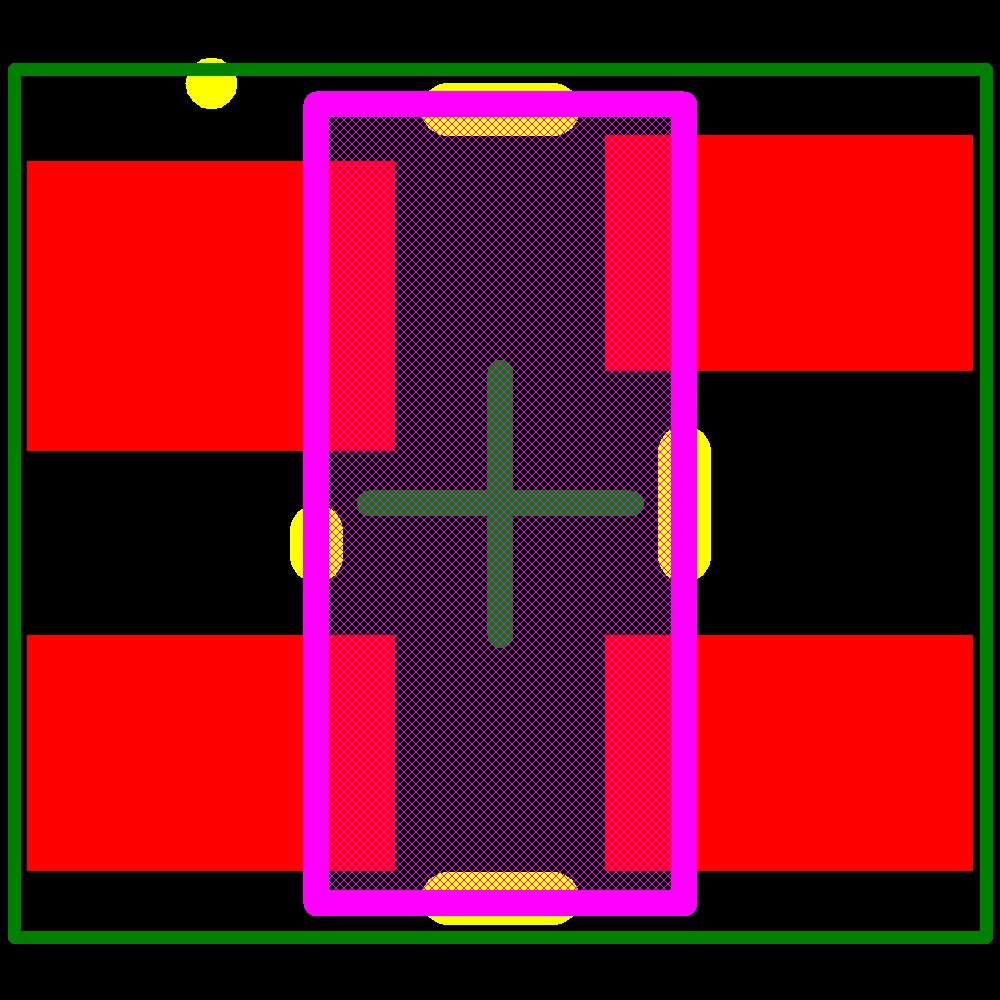

Images
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Littelfuse | Obsolete | ||
| Comchip | Obsolete | ||
| Diodes Inc. | Production | ||
| Protek Devices | Production | ||
| Littelfuse | Production | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Production | ||
| Semtech | Production | ||
| Alpha & Omega Semiconductor | Obsolete | ||
| Alpha & Omega Semiconductor | Obsolete |
