SP1001-04JTG - Littelfuse
SP1001 Series 13 V 2 A 8 pF Quad Uni-Directional TVS Diode Array - SC-70-5
Technical Details
| Breakdown Voltage | 6.7V |
| Capacitance | 8pF |
| Case/Package | SC |
| Clamping Voltage | 9.7V |
| Composition | Zener |
| Depth | 1.35mm |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 500nA |
| Length | 2.25mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 150°C |
| Max Surge Current | 2A |
| Min Breakdown Voltage | 7V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Pins | 5 |
| Number of Terminals | 5 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 5.5V |
| Packaging | Cut Tape |
| Peak Pulse Current | 2A |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5.5V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Termination | SMD/SMT |
| Working Voltage | 5.5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

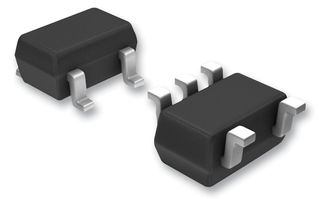

Images
Farnell
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Littelfuse | Production | ||
| Protek Devices | Obsolete | ||
| Renesas | Obsolete | ||
| Semtech | Production | ||
| Semtech | Production | ||
| Protek Devices | Production | ||
| Semtech | Obsolete | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| NXP Semiconductors | Obsolete |
