SR05-02CTG - Littelfuse
SR05 Series 2 Channel 25 A 5 V 6 pF Lightning Protection TVS Diode Array-SOD-143
Technical Details
| Breakdown Voltage | 6V |
| Capacitance | 6pF |
| Case/Package | SOT-143 |
| Clamping Voltage | 18V |
| Depth | 1.4mm |
| Direction | Unidirectional |
| Element Configuration | Dual |
| Height | 1.22mm |
| Leakage Current | 5µA |
| Length | 3.04mm |
| Lifecycle Status | Obsolete |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 450W |
| Max Surge Current | 25A |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 2 |
| Number of Channels | 2 |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Operating Supply Voltage | 5V |
| Packaging | Cut Tape |
| Peak Pulse Current | 25A |
| Peak Pulse Power | 450W |
| Polarity | Unidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Termination | SMD/SMT |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

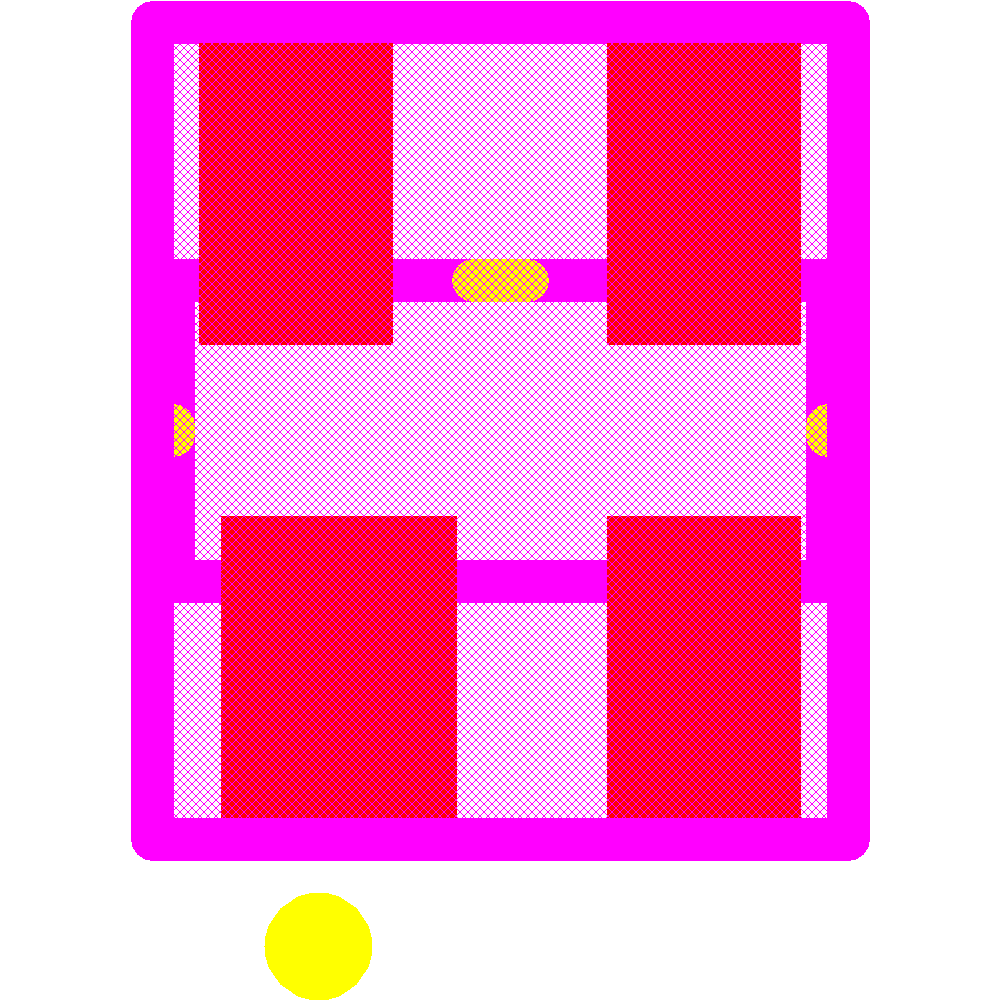

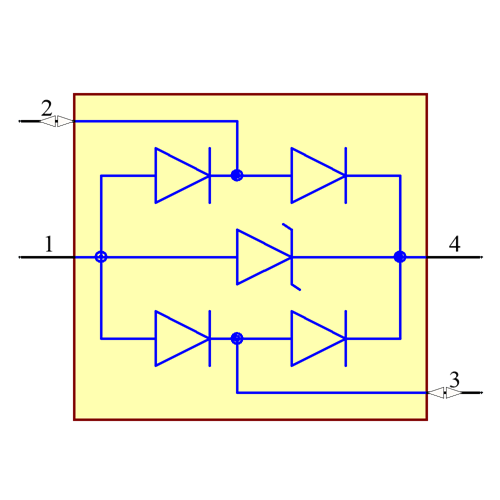

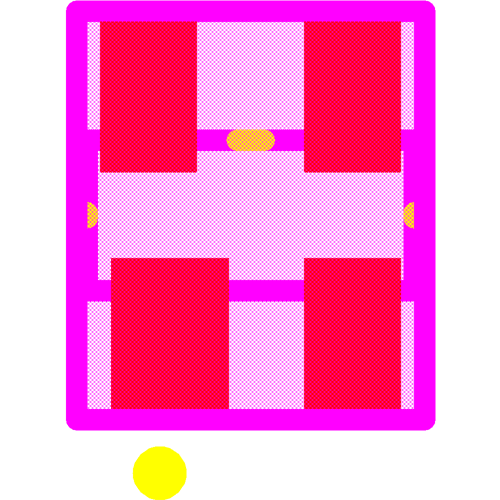

Images
Onlinecomponents.com
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Littelfuse | Production | ||
| Comchip | Obsolete | ||
| Diodes Inc. | Production | ||
| Protek Devices | Production | ||
| Littelfuse | Production | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Production | ||
| Semtech | Production | ||
| Alpha & Omega Semiconductor | Obsolete | ||
| Alpha & Omega Semiconductor | Obsolete |
