TI National Semiconductor - LM324M/NOPB

Op Amp Quad Low Power Amplifier ±16V/32V 14-Pin SOIC Tube

 Datasheet at TI.com

Technical Details

Amplifier Type GENERAL PURPOSE
Bandwidth 1MHz
Case/Package SOIC
Common Mode Rejection Ratio 65dB
Dual Supply Voltage 9V
Gain Bandwidth Product 1MHz
Height 1.45mm
Input Bias Current 45nA
Input Offset Voltage (Vos) 2mV
Lead Free Lead Free
Length 8.64mm
Max Dual Supply Voltage 16V
Min Dual Supply Voltage 1.5V
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Max Supply Voltage 32V
Min Supply Voltage 3V
Mount Surface Mount
Number of Amplifiers 4
Number of Channels 4
Number of Circuits 4
Number of Elements 4
Number of Pins 14
Operating Supply Current 1.5mA
Output Current per Channel 40mA
Packaging Rail/Tube
Power Dissipation 800mW
Power Supply Rejection Ratio (PSRR) 65dB
Reach SVHC Compliant No
RoHS Compliant Yes
Slew Rate 0.5V/µs
Supply Current 1.5mA
Technology BIPOLAR
Unity Gain Bandwidth Product 1MHz
Voltage Gain 100dB
Width 3.91mm

Compliance

   RoHS : Compliant

Images

TI National Semiconductor LM324M/NOPB | Texas Instruments

Texas Instruments

TI National Semiconductor LM324M/NOPB | Rs

Rs

TI National Semiconductor LM324M/NOPB | Farnell

Farnell

TI National Semiconductor LM324M/NOPB | Element14

Element14

TI National Semiconductor LM324M/NOPB | Distrelec

Distrelec

TI National Semiconductor LM324M/NOPB | Rochester Electronics

Rochester Electronics

Datasheets

Texas Instruments National Semiconductor
Element14
Distrelec
Arrow Electronics
Conrad

Lifecycle Status Indicator

   Volume Production

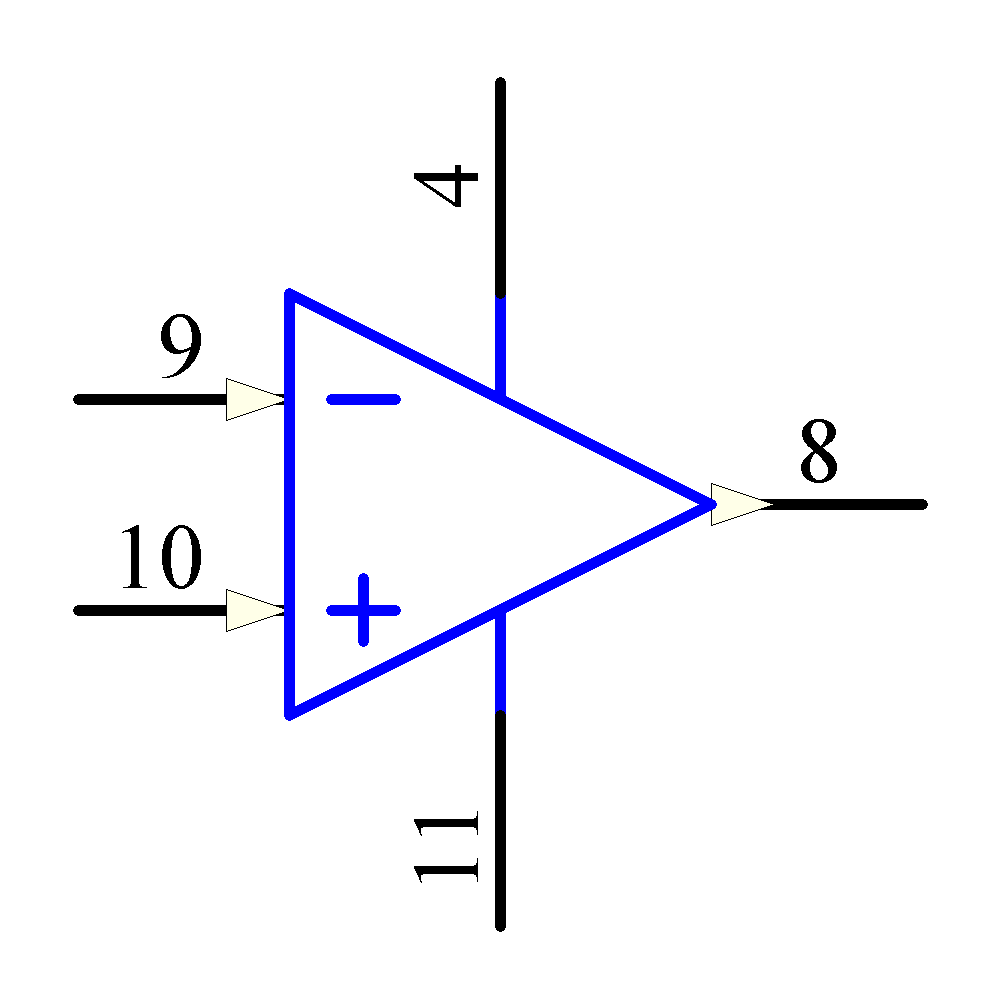

Symbol
