TI National Semiconductor - LM431BIM/NOPB

LM431BIM/NOPB - TI National Semiconductor

V-Ref Adjustable 2.495V to 37V 100mA 8-Pin SOIC N Rail

 Datasheet at TI.com

Technical Details

Case/Package SOIC N
Cathode Current 1mA
Height 1.75mm
Lead Free Lead Free
Length 4.9mm
Max Input Voltage 37V
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Max Output Current 100mA
Max Output Voltage 37V
Min Output Voltage 2.495V
Mount Surface Mount
Number of Pins 8
Output Current 100mA
Output Type Adjustable
Output Voltage 37V
Package Quantity 95
Packaging Rail/Tube
Radiation Hardening No
Reference Type Shunt, Adjustable
RoHS Compliant Yes
Temperature Coefficient 50ppm/°C
Thickness 1.58mm
Tolerance 1%
Voltage 37V
Width 3.91mm

Compliance

   RoHS : Compliant
   Radiation Hardening : No

Images

TI National Semiconductor LM431BIM/NOPB | Texas Instruments

Texas Instruments

Datasheets

Texas Instruments National Semiconductor
Verical
Arrow Electronics
Jameco

Lifecycle Status Indicator

   Volume Production
Symbol

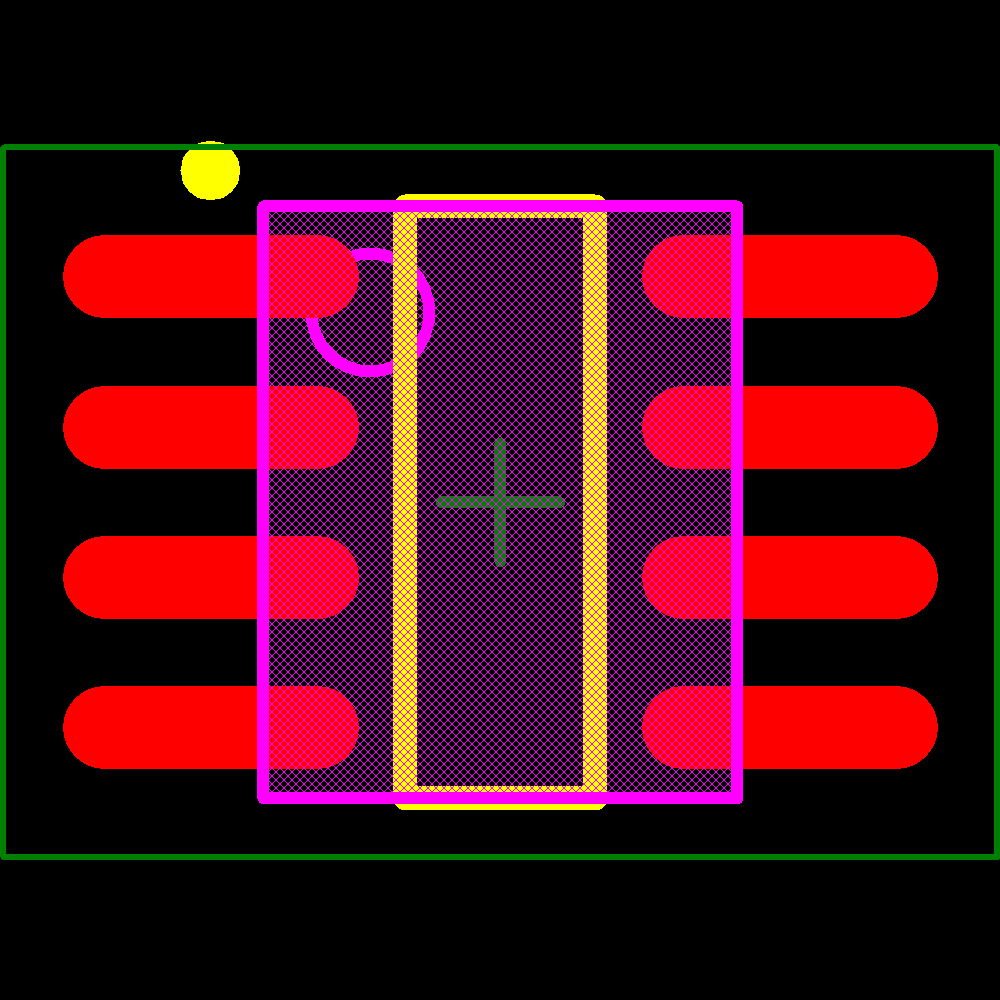

Footprint
