Optoelectronics  >  LEDs

Lumex - SML-LX0402SUGC-TR

SML-LX0402SUGC-TR - Lumex

LED Low-Power Uni-Color Green 574nm 2.2V 2-Pin Chip 0402(1006Metric) T/R

 Datasheets

Technical Details

Approvals CSA, UL
Case/Package 0402
Case Code (Imperial) 0402
Case Code (Metric) 1005
China RoHS Compliant
Color Green
Dominant Wavelength 574nm
Forward Current 25mA
Forward Voltage 2.6V
Height 500µm
Illumination Color Green
Lead Free Lead Free
Length 1mm
Lens Color Clear, Colorless
Lens Style Clear
Lens Transparency Clear
Lifecycle Status Production
Luminous Intensity 45mcd
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Mount Surface Mount
Number of Circuits 1
Number of LEDs 1
Number of Pins 2
Number of Terminals 2
Packaging Cut Tape
Peak Wavelength 574nm
Power Dissipation 100mW
REACH SVHC Yes
Reverse Voltage 5V
RoHS Compliant
Schedule B 8541402000, 8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|8541402000|85
Shape Rectangular
Terminal Pitch 1.1mm
Test Current 20mA
Viewing Angle 120°
Wavelength 574nm
Width 500µm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

Lumex SML-LX0402SUGC-TR | Master Electronics

Master Electronics

Datasheets

 Verical
 Verical
 Master Electronics

Lifecycle Status Indicator

   Production

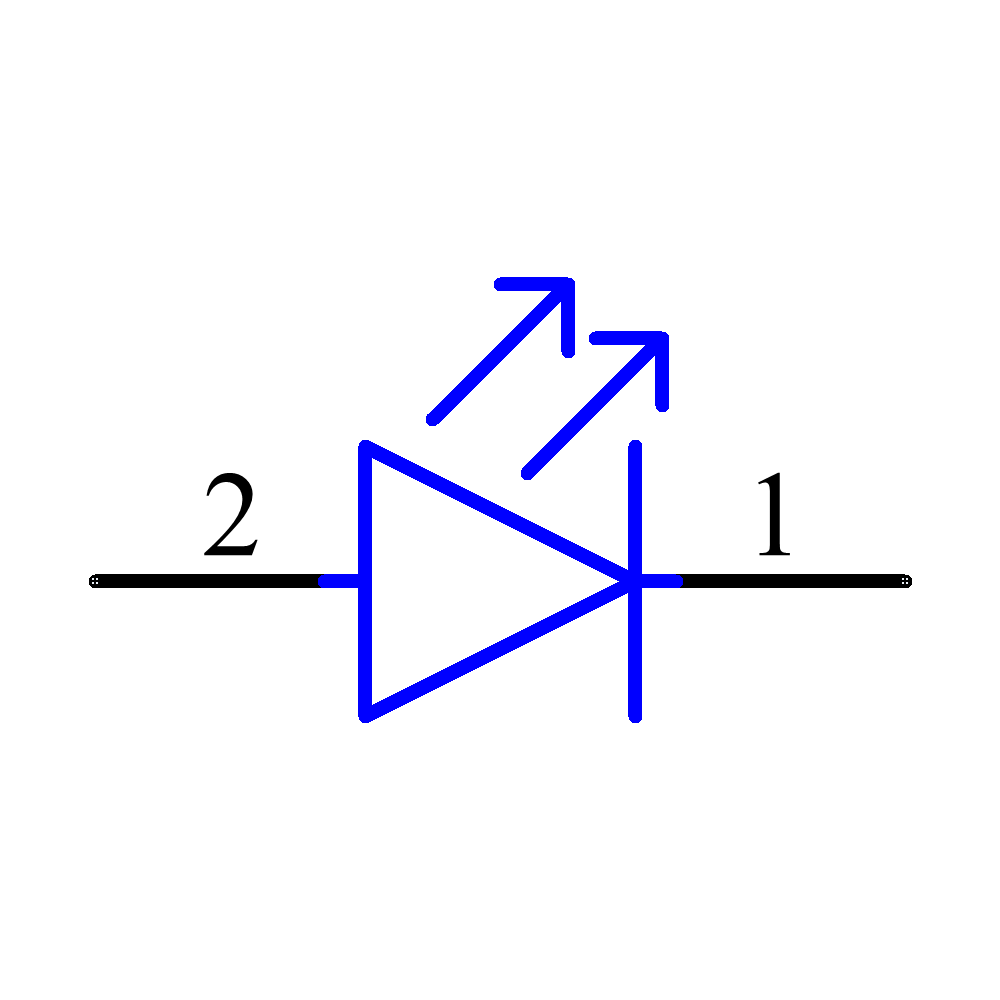

Symbol

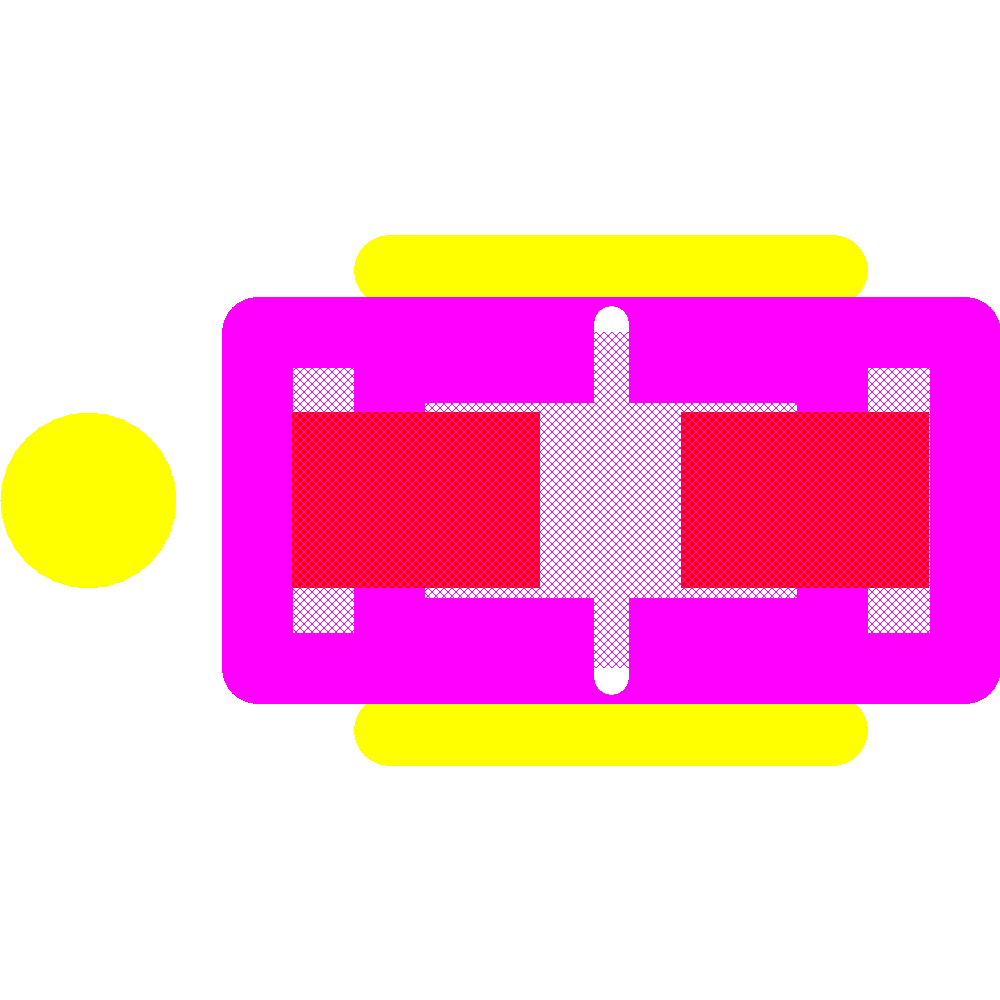

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Stanley Electric
PY1111C-TR
Obsolete
Panasonic
LNJ312G8LRA
Obsolete
Lumex
SSL-LX15GC
Obsolete
Lumex
SML-LX1206GW-TR
Production
Kingbright
AP2012SGC
Production
Lumex
SSL-LX15GC-TR
Obsolete
Toshiba
TLGU1002
Obsolete
Stanley Electric
PY1112H-TR
Obsolete
Kingbright
KPH-1608SGC
Production
Panasonic
LNJ308G8TRA
Obsolete

See more alternatives See less alternatives
