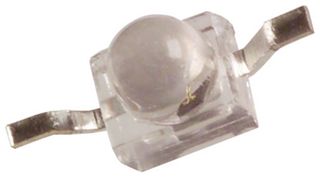

SSL-LXA228GC-TR31 - Lumex
Surface-Mount/Axial Led Lamp, green, clear, led-8D Rohs Compliant: Yes |Lumex SSL-LXA228GC-TR31
Technical Details
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Color | Green |
| Forward Current | 30mA |
| Forward Voltage | 2.8V |
| Height | 2.8mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Illumination Color | Green |
| Introduction Date | 1996-11-01 |
| Lead Free | Lead Free |
| Length | 2.5mm |
| Lens Style | Clear |
| Lens Transparency | Clear |
| Lifecycle Status | Obsolete |
| Luminous Intensity | 30mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Peak Wavelength | 565nm |
| Power Rating | 100mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8541402000, 8541402000|8541402000|8541402000|8541402000|8541402000 |
| Shape | Round |
| Terminal Pitch | 5.4mm |
| Test Current | 20mA |
| Viewing Angle | 25° |
| Wavelength | 565nm |
| Width | 2mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images

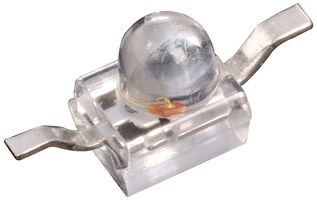

element14 APAC
