Technical Details
| Body Material | Ceramic |
| Continuous Drain Current (ID) | 16A |
| Current Rating | 16A |
| Drain to Source Breakdown Voltage | 125V |
| Drain to Source Voltage (Vdss) | 125V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ELV | Compliant |
| Frequency | 150MHz |
| Gain | 17dB |
| Gate to Source Voltage (Vgs) | 40V |
| Introduction Date | 1994-02-01 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Frequency | 150MHz |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 300W |
| Min Breakdown Voltage | 125V |
| Min Operating Temperature | -65°C |
| Mount | Screw |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Output Power | 150W |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Test Current | 250mA |
| Test Voltage | 50V |
| Voltage Rating | 125V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

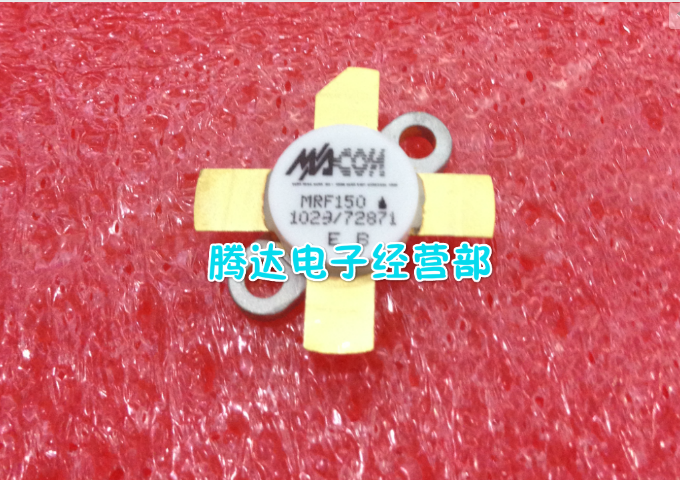

Images
