Technical Details
| Body Material | Ceramic |
| Continuous Drain Current (ID) | 8A |
| Current Rating | 8A |
| Drain to Source Breakdown Voltage | 65V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 500MHz |
| Gate to Source Voltage (Vgs) | 20V |
| Introduction Date | 2001-07-27 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 175W |
| Min Breakdown Voltage | 65V |
| Min Operating Temperature | -65°C |
| Mount | Screw |
| Number of Elements | 2 |
| Number of Pins | 5 |
| Number of Terminals | 4 |
| Output Power | 40W |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Test Current | 100mA |
| Test Voltage | 28V |
| Voltage Rating | 65V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

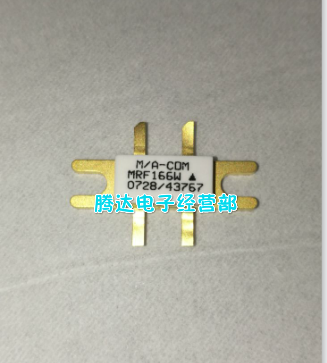

Images
