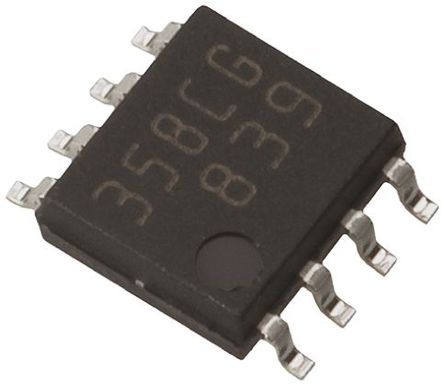

MX25L2006EM1I-12G - Macronix
NOR Flash Serial 3V/3.3V 2M-bit 2M/1M x 1/2-bit 8ns 8-Pin SOP / IC FLASH 2MBIT 86MHZ 8SOP
Technical Details
| Case/Package | SOP |
| Country of Origin | Taiwan |
| Density | 2Mb |
| Export Control Classification Number (ECCN) Code | 3A991.B.1.A |
| Frequency | 86MHz |
| Height - Seated (Max) | 1.75mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.00.51 |
| Interface | Serial |
| Introduction Date | 2010-04-13 |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | NRND |
| Max Frequency | 86MHz |
| Max Operating Temperature | 85°C |
| Max Supply Current | 20mA |
| Max Supply Voltage | 3.6V |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Circuits | 1 |
| Number of Terminals | 8 |
| Operating Supply Voltage | 3V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542320070, 8542320070|8542320070|8542320070|8542320070|8542320070 |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
