MX25L51245GMI-08G - Macronix
Flash - Nor Memory IC 512MBIT Spi - Quad I/o, Qpi, Dtr 166 Mhz 16-SOP
Technical Details
| Ambient Temperature Range High | 85°C |
| Case/Package | SOP |
| Country of Origin | Taiwan |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 133MHz |
| Height | 2.65mm |
| Height - Seated (Max) | 2.65mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.00.51 |
| Interface | Serial |
| Introduction Date | 2016-02-23 |
| Length | 10.3mm |
| Lifecycle Status | Production |
| Max Frequency | 166MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 64MB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Nominal Supply Current | 30mA |
| Number of Circuits | 1 |
| Number of Terminals | 16 |
| Operating Supply Voltage | 3V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542320070, 8542320070|8542320070|8542320070|8542320070|8542320070 |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Width | 7.52mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

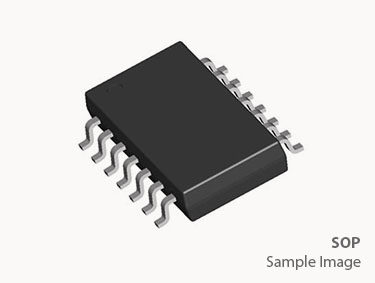

Images
