MAX3222CDBR - Texas Instruments

IC TRANSCEIVER FULL 2/2 20SSOP

Datasheet at TI.com

Technical Details

Case/Package	SSOP
Data Rate	250Kbps
Lead Free	Lead Free
Logic Function	Transceiver, Receiver
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	5.5V
Min Supply Voltage	3V
Mount	Surface Mount
Number of Drivers	2
Number of Pins	20
Number of Receivers	2
Number of Transceivers	1
Number of Transmitters	2
Operating Supply Current	1mA
Operating Supply Voltage	5V
Output Current	60mA
Output Voltage	5.4V
Package Quantity	1
Packaging	Tape and Reel
Radiation Hardening	No
Reach SVHC Compliant	No
Receiver Hysteresis	300mV
RoHS Compliant	Yes
Simplex/Duplex	Full Duplex
Supply Current	1mA
Weight	0.005527oz

Compliance

RoHS : Compliant

Radiation Hardening : No

Images

Texas Instruments MAX3222CDBR | Mouser

Mouser

Texas Instruments MAX3222CDBR | Rs

Rs

Datasheets

Texas Instruments

Official datasheet

Official datasheet

Official datasheet

Verical

MAX3222CDBR datasheet (pdf, 673.4 KB)

Element14

MAX3222CDBR datasheet (pdf)

Mouser

MAX3222CDBR datasheet (pdf)

Arrow Electronics

MAX3222CDBR datasheet (pdf)

Conrad

MAX3222CDBR datasheet (pdf)

Lifecycle Status Indicator

Obsolete

Symbol

MAX3222CDBR Symbol - Texas Instruments

Footprint

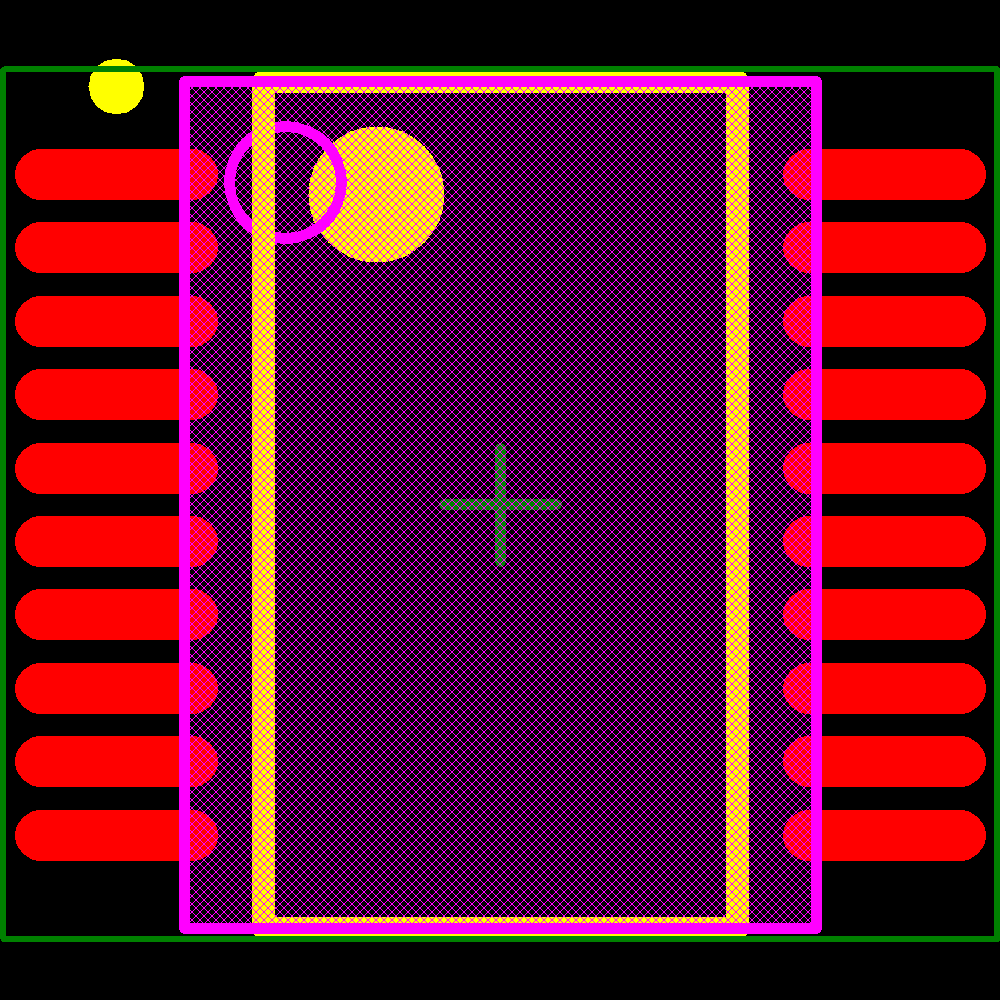

MAX3222CDBR Footprint - Texas Instruments
