Technical Details
| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Common Anode |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 8Ω |
| Introduction Date | 2008-01-03 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 300mW |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Tape and Reel |
| Peak Reverse Current | 100pA |
| Polarity | Unidirectional |
| REACH SVHC | Yes |
| Reference Voltage | 6.8V |
| RoHS | Compliant |
| Tolerance | 5% |
| Voltage Tolerance | 5.88% |
| Zener Current | 5mA |
| Zener Voltage | 6.8V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

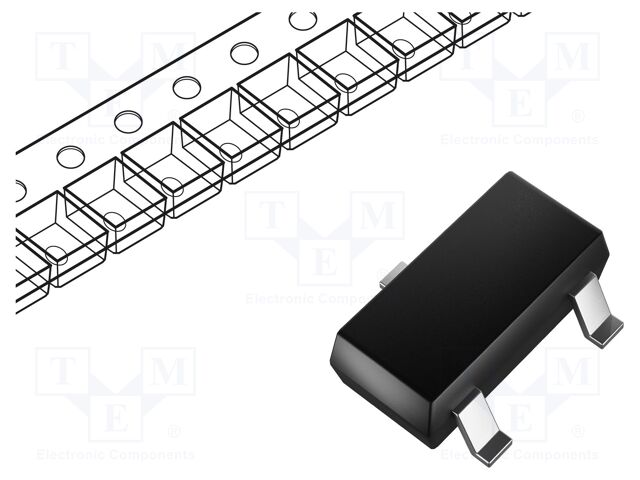

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Vishay | Production | ||
| Taiwan Semiconductor | Production | ||
| Diodes Inc. | Production | ||
| Vishay | Obsolete | ||
| Panjit | Production | ||
| Vishay | Production | ||
| Vishay | Production | ||
| Vishay | Production | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete |
