BC847CW-TP - MCC
Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon
Technical Details
| Case/Package | SOT-323 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 45V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Voltage (VCEO) | 45V |
| Country of Origin | Mainland China |
| Current Rating | 100mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 6V |
| Frequency | 100MHz |
| Gain Bandwidth Product | 100MHz |
| hFE Min | 420 |
| Introduction Date | 2004-04-05 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 45V |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | NPN |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080 |
| Transition Frequency | 100MHz |
| Voltage Rating (DC) | 50V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

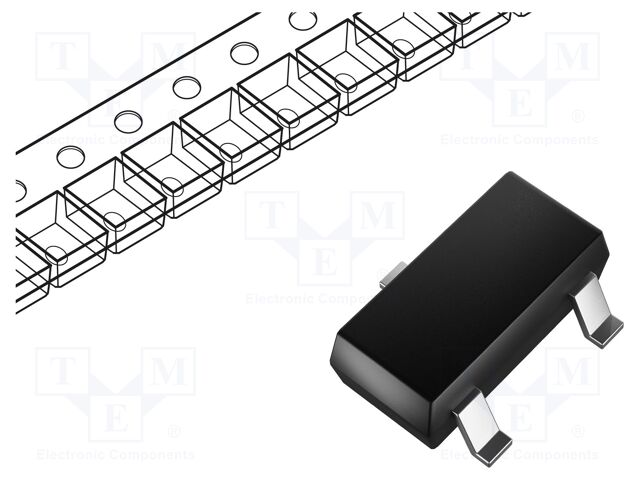

Images
