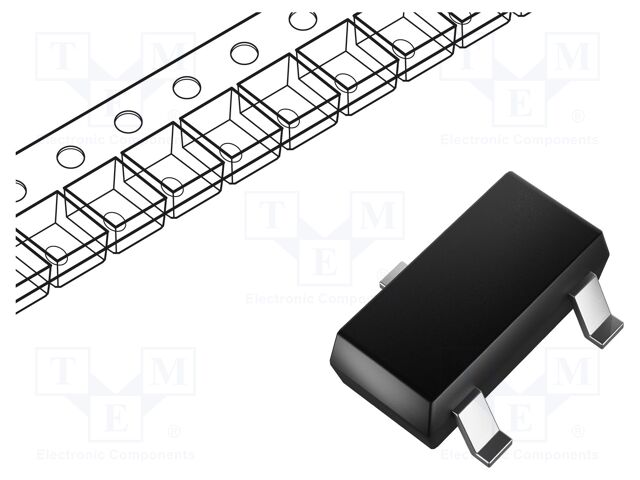

BC848A-TP - MCC
Tape & Reel (TR) Surface Mount NPN SINGLE Bipolar (BJT) Transistor 110 @ 2mA 5V 100mA 225mW 100MHz
Technical Details
| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 30V |
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Voltage (VCEO) | 30V |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Emitter Base Voltage (VEBO) | 6V |
| Frequency | 100MHz |
| Gain Bandwidth Product | 100MHz |
| hFE Min | 110 |
| Introduction Date | 2002-04-09 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 30V |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | NPN |
| Power Dissipation | 225mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 100MHz |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
