Technical Details
| Case/Package | SOT-89 |
| China RoHS | Compliant |
| Country of Origin | Mainland China |
| Dropout Voltage | 1.7V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 1.6mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2006-09-28 |
| Lead Free | Lead Free |
| Length | 4.495mm |
| Lifecycle Status | Production |
| Max Input Voltage | 20V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 120°C |
| Min Input Voltage | 7V |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Number of Terminals | 3 |
| Output Current | 100mA |
| Output Voltage | 5V |
| Packaging | Cut Tape |
| Polarity | Positive |
| Quiescent Current | 5.5mA |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080, 8542390000 |
| Terminal Pitch | 1.5mm |
| Voltage Tolerance | 5% |
| Width | 2.44mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

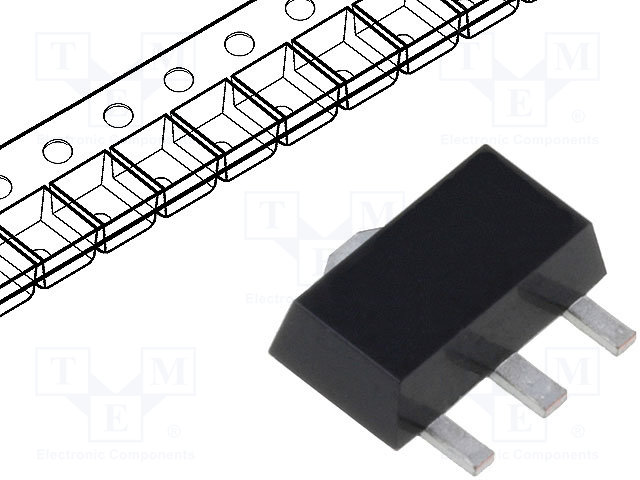

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Obsolete | ||
| NEC | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
