MCP9700A-E/TO - Microchip

MICROCHIP - MCP9700A-E/TO - Temperature Sensor IC, Voltage, ± 1°C, -40 °C, +125 °C, TO-92, 3 Pins

Technical Details

Accuracy	2%
Case/Package	TO-92
Height	4.62mm
Impedance	20R
Interface	Serial
Lead Free	Lead Free
Length	4.71mm
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Supply Voltage (DC)	5.5V
Min Supply Voltage (DC)	2.3V
Max Supply Voltage	5.5V
Min Supply Voltage	2.3V
Mount	Through Hole
Number of Pins	3
Operating Supply Current	6uA
Output	ANALOG
Output Current	100uA
Output Type	Analog, Analog Voltage, Digital
Packaging	Bag
Radiation Hardening	No
Reach SVHC Compliant	No
Resolution	8b
RoHS Compliant	Yes
Sensor Type	Temperature
Supply Current	6uA
Termination	Through Hole
Width	3.62mm

Compliance

RoHS : Compliant

Radiation Hardening : No

Images

Microchip MCP9700A-E/TO | Arrow Electronics

Arrow Electronics

Microchip MCP9700A-E/TO | Rs

Rs

Microchip MCP9700A-E/TO | microchipDIRECT

microchipDIRECT

Datasheets

Verical

MCP9700A-E/TO datasheet (pdf, 737.9 KB)

Element14

MCP9700A-E/TO datasheet (pdf, 737.9 KB)

Digikey

MCP9700A-E/TO datasheet (pdf, 737.9 KB)

Avnet

MCP9700A-E/TO datasheet (pdf, 737.9 KB)

Mouser

MCP9700A-E/TO datasheet (pdf, 446.2 KB)

Lifecycle Status Indicator

Volume Production

Loading indicators

Symbol

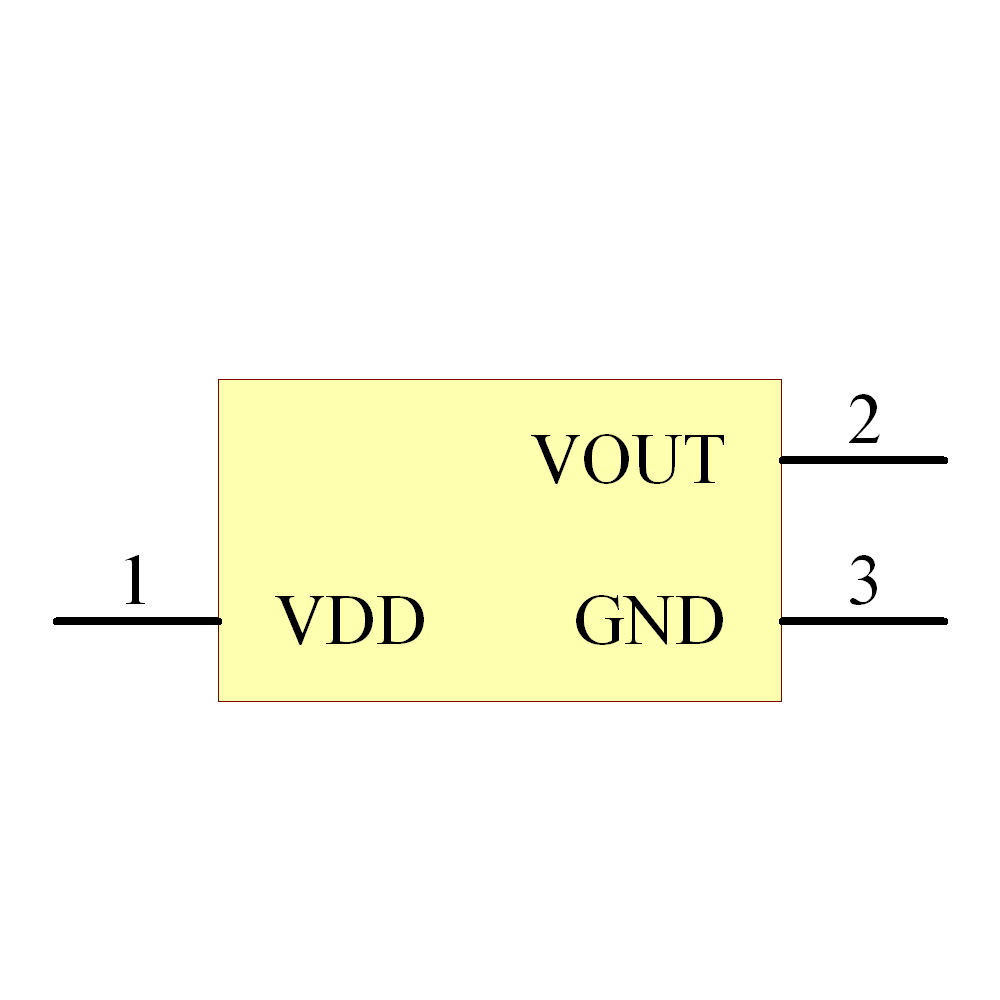

MCP9700A-E/TO Symbol - Microchip
