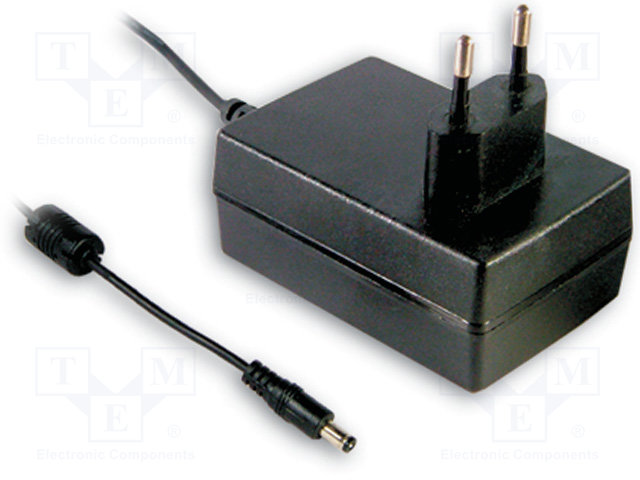

GSM18E05-P1J - Mean Well
Power Supply, Ac-dc, 5V, 3A, 100-264V in, Enclosed, Wall Plug, Medical, 15W, GSM18 Series
Technical Details
| Approvals | EN, IEC, TUV |
| Cable Length | 1.2m |
| Current - Output 1 | 3A |
| Depth | 33mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 80% |
| Height - Seated (Max) | 34mm |
| Introduction Date | 2021-09-15 |
| Length | 79mm |
| Lifecycle Status | Production |
| Max Input Voltage | 264V |
| Max Operating Temperature | 60°C |
| Max Output Current | 3A |
| Max Output Power | 15W |
| Max Output Voltage | 5.25V |
| Min Input Voltage | 80V |
| Min Operating Temperature | -25°C |
| Min Output Voltage | 4.75V |
| Mount | Wall |
| Nominal Input Voltage | 115V |
| Nominal Output Voltage | 5V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 2 |
| Output Current | 3A |
| Output Power | 15W |
| Output Voltage | 5V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Voltage - Output 1 | 5V |
| Weight | 199.999989g |
| Width | 54mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
