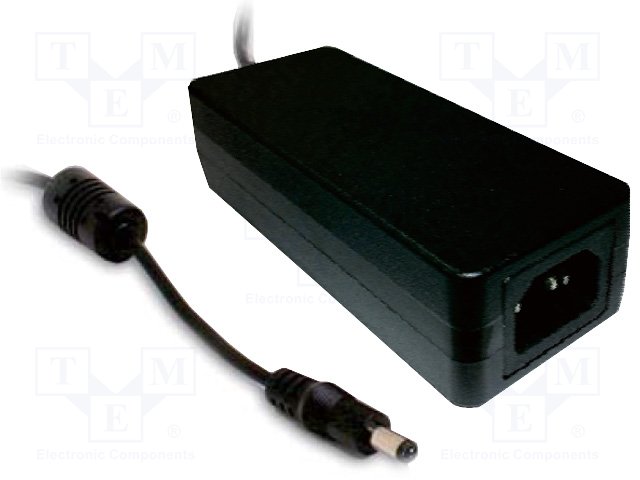

GSM60A18-P1J - Mean Well
18V 3330mA 60W Class 1 AC-DC Single Output Medical Power Supply with 2.1mm Plug
Technical Details
| Approvals | EN, IEC |
| Cable Length | 1.5m |
| Case/Package | 100 |
| Current - Output 1 | 3.33A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 89% |
| Height | 30.48mm |
| Height - Seated (Max) | 31.5mm |
| Introduction Date | 2021-09-15 |
| Length | 125mm |
| Lifecycle Status | Production |
| Max Input Current | 1.4A |
| Max Input Voltage | 264V |
| Max Operating Temperature | 70°C |
| Max Output Current | 3.33A |
| Max Output Power | 60W |
| Max Output Voltage | 18.54V |
| Min Input Voltage | 80V |
| Min Operating Temperature | -30°C |
| Min Output Voltage | 17.46V |
| Mount | Desktop |
| Nominal Input Voltage | 115V |
| Nominal Output Voltage | 18V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Output Current | 3.33A |
| Output Power | 60W |
| Output Type | Fixed |
| Output Voltage | 18V |
| Packaging | Bulk |
| Polarity | Positive |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8504409520 |
| Voltage - Output 1 | 18V |
| Weight | 320.000005g |
| Width | 50mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
