Integrated Circuits (ICs) > Memory > EEPROM

11LC080T-I/MNY - Microchip

UN I/O™ Serial EEPROM Family, 16Bytes, 100 kHz, 2.5 to 5.5V, TDFN-8, RoHS

Projected EOL Date	2034-09-17
Contact Plating	Gold
Country of Assembly	Thailand
Country of Fabrication	United States of America
Country of Origin	Thailand
Density	8kb
Export Control Classification Number (ECCN) Code	EAR99
Frequency	100kHz
Height	750µm
Harmonized Tariff Schedule (HTS) Code	8542.32.0051
Interface	Serial
Introduction Date	2008-09-17
Length	2mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	100kHz
Max Operating Temperature	85°C
Max Supply Voltage	5.5V
Memory Size	1kB
Memory Type	EEPROM
Min Operating Temperature	-40°C
Min Supply Voltage	2.5V
Mount	Surface Mount
Nominal Supply Current	5mA
Number of Pins	8
Number of Words	1024
Operating Supply Voltage	5V
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Termination	SMD/SMT
Width	3mm

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Microchip 11LC080T-I/MNY | Microchip

Microchip

Production

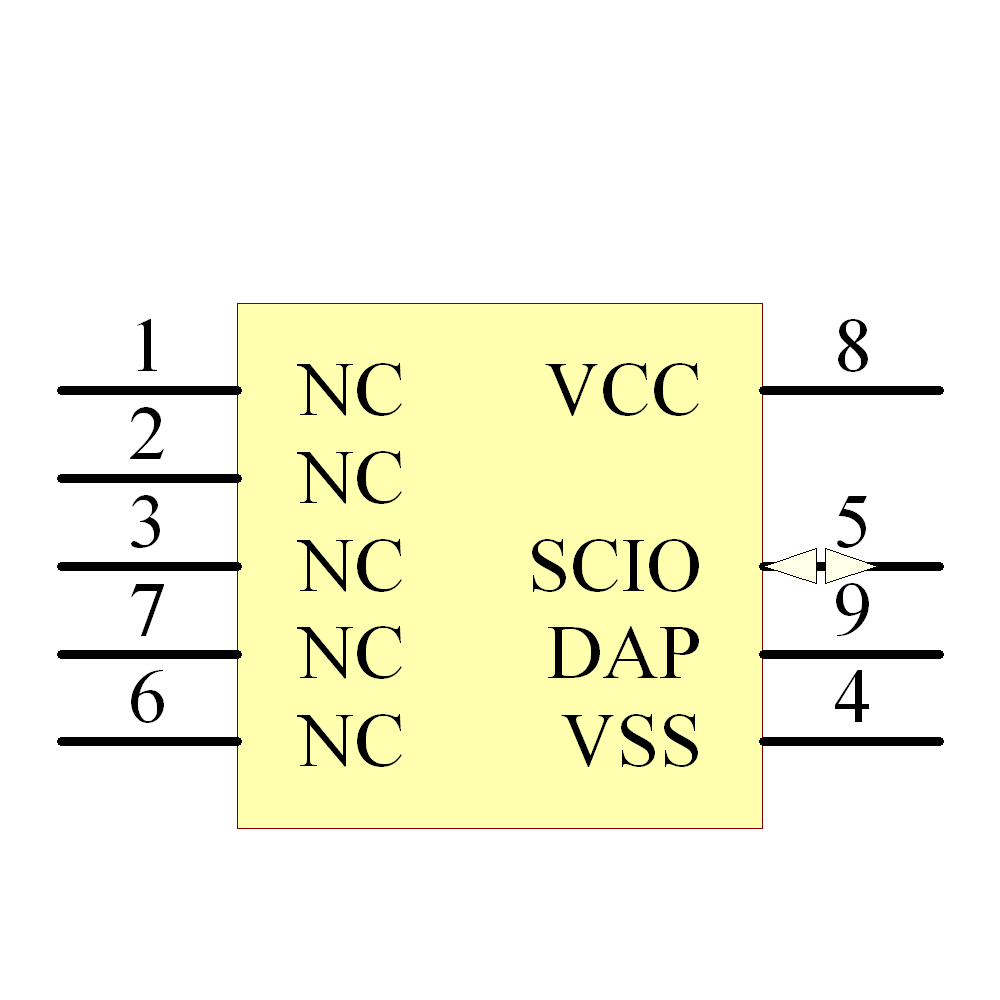

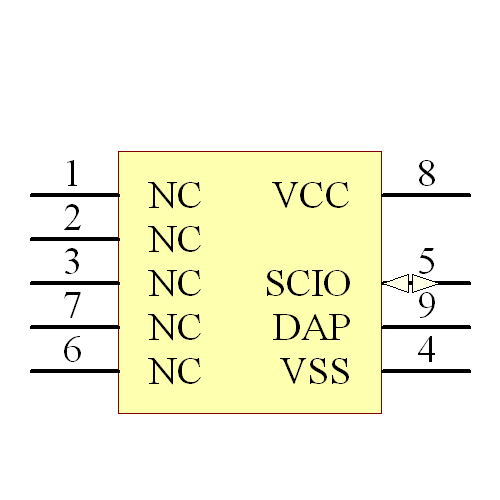

Symbol

‹ ›

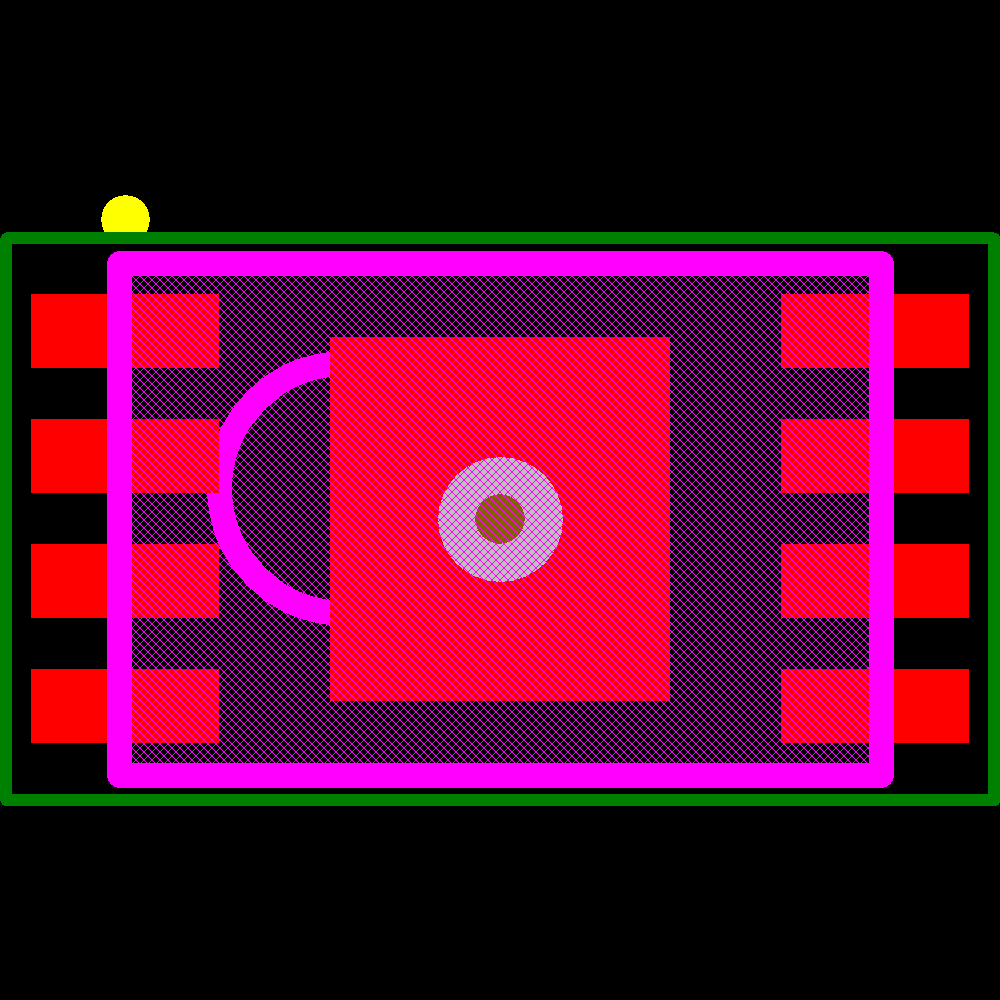

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Microchip	11LC080T-E/MNY	Production
Microchip	11LC080-E/P	Production
STMicroelectronics	M24C08-RDS6TG	Obsolete
STMicroelectronics	M24C08-RDS6G	Obsolete
Microchip	11LC080T-I/MS	Production
Microchip	11AA080T-I/MS	Production
Microchip	11AA080-I/TO	Production
Microchip	11LC080-I/MS	Production
Microchip	11LC080-I/P	Production
ROHM	BR93C76-WDW6TP	Obsolete
