Integrated Circuits (ICs) > Memory > EEPROM

24LC02B/SN - Microchip

24LC02 Series 2 Kb I2C 2 Wire (256 x 8) 2.5 V Serial EEPROM SMT - SOIC-8

Technical Details

Projected EOL Date	2034-01-01
Access Time	900ns
Case/Package	SOIC
Contact Plating	Tin
Country of Assembly	Thailand
Country of Fabrication	United States of America
Country of Origin	Thailand
Density	2kb
Export Control Classification Number (ECCN) Code	EAR99
Frequency	400kHz
Height	1.5mm
Harmonized Tariff Schedule (HTS) Code	8542.32.0051
Interface	2-Wire, I2C, Serial
Introduction Date	2002-01-01
Lead Free	Lead Free
Length	4.9mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	400kHz
Max Operating Temperature	70°C
Max Supply Voltage	5.5V
Memory Size	256B
Memory Type	EEPROM
Min Operating Temperature	0°C
Min Supply Voltage	2.5V
Mount	Surface Mount
Nominal Supply Current	3mA
Number of Pins	8
Number of Words	256
Operating Supply Voltage	2.5V
Packaging	Bulk
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542320050, 8542320050\|8542320050, 8542320050\|8542320050\|8542320050, 8542320050\|8542320050\|8542320050\|8542320050
Width	3.9mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Microchip 24LC02B/SN | Farnell

Farnell

Datasheets

Onlinecomponents.com

Lifecycle Status Indicator

Production

Symbol

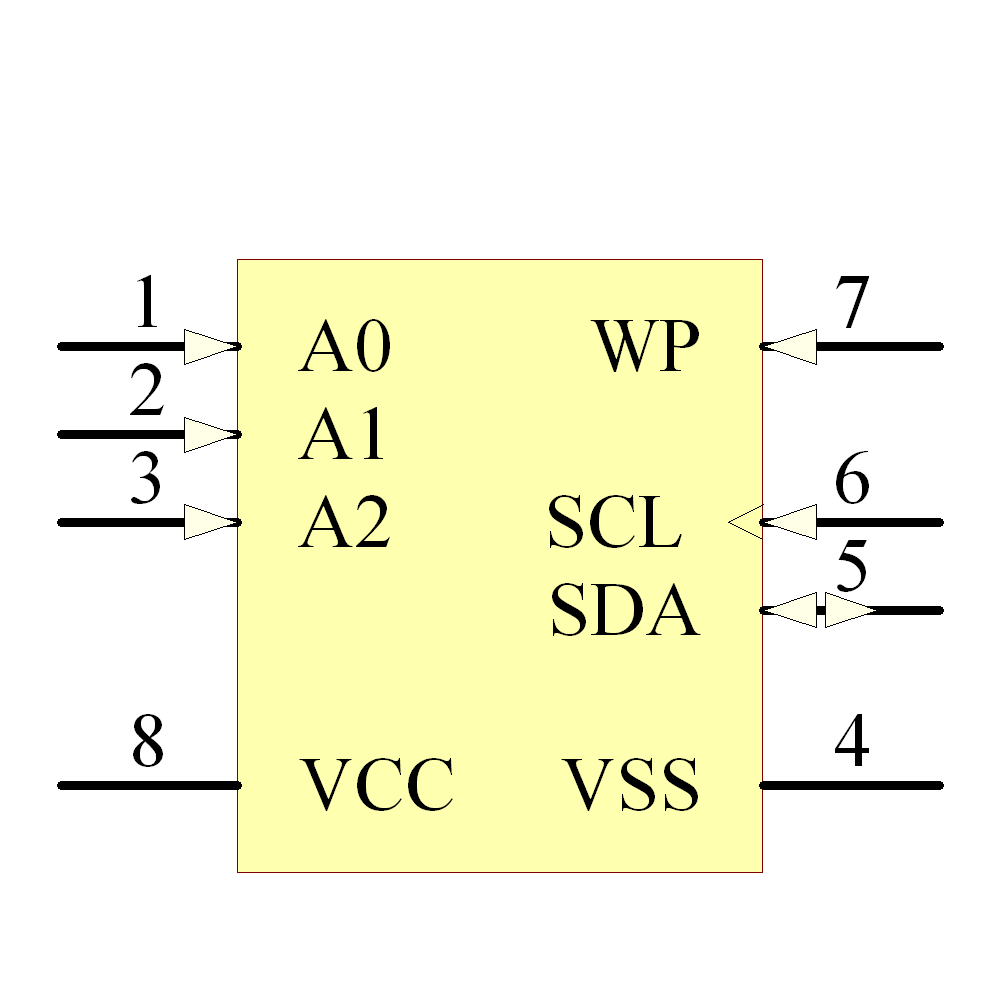

24LC02B/SN Symbol - Microchip

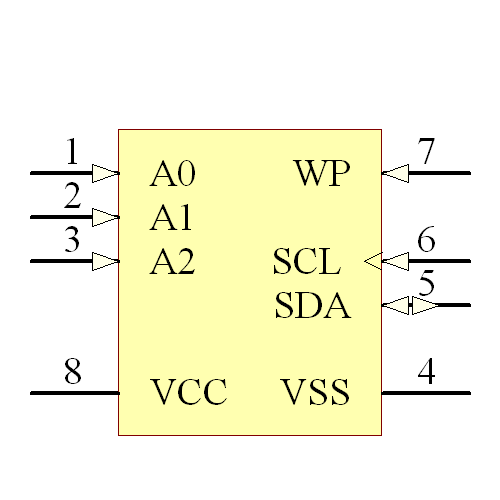

24LC02B/SN Symbol - Microchip

24LC02B/SN Symbol - Microchip

24LC02B/SN Symbol - Microchip

‹ ›

Footprint

24LC02B/SN Footprint - Microchip

24LC02B/SN Footprint - Microchip

24LC02B/SN Footprint - Microchip

24LC02B/SN Footprint - Microchip

24LC02B/SN Footprint - Microchip

24LC02B/SN Footprint - Microchip

24LC02B/SN Footprint - Microchip

24LC02B/SN Footprint - Microchip

24LC02B/SN Footprint - Microchip

24LC02B/SN Footprint - Microchip

24LC02B/SN Footprint - Microchip

24LC02B/SN Footprint - Microchip

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Microchip	24LC02BH-I/SN	Production
Microchip	24LC02BT-I/SN	Production
Microchip	24LC02B-E/SNG	Production
Atmel	AT24C02BN-SP25-T	Unknown
Microchip	24LC02B-I/SN	Production
Microchip	24LC02BHT-I/SN	Production
Microchip	24LC02BHT-E/SN	Production
Microchip	24LC02B-I/SNG	Production
Microchip	24LC02BT-E/SN	Production
Microchip	24LC02B-E/SN	Production
