24LC64T-I/MC - Microchip
24LC64 Series 64 Kb I2C 2 Wire (8K X 8) 2.5 V Serial EEPROM SMT - DFN-8
Technical Details
| Projected EOL Date | 2034-01-20 |
| Access Time | 900ns |
| Case/Package | DFN |
| Contact Plating | Tin |
| Country of Assembly | Malaysia, Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Malaysia, Thailand |
| Density | 64kb |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 400kHz |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.0051 |
| Interface | 2-Wire, I2C, Serial |
| Introduction Date | 2005-01-20 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8kB |
| Memory Type | EEPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 3mA |
| Number of Pins | 8 |
| Operating Supply Voltage | 5V |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542320050, 8542320050|8542320050|8542320050|8542320050|8542320050 |
| Termination | SMD/SMT |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

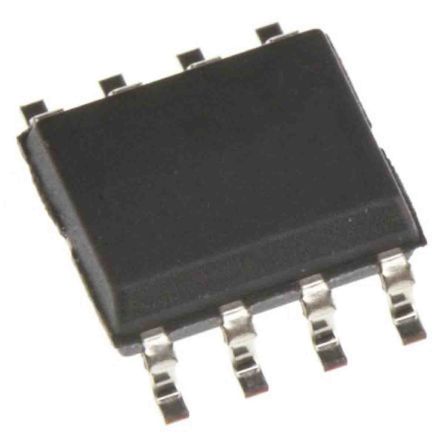

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Unknown | ||
| Microchip | Production | ||
| Microchip | Unknown | ||
| Microchip | Production | ||
| Microchip | Unknown |
