Integrated Circuits (ICs) > Memory > EEPROM

25LC1024-E/SM - Microchip

SPI Serial EEPROM Family, 8-bit, 20 MHz, 2.5 to 5.5V, -40°Cto 125°C, SOIJ-8, RoHS

Technical Details

Projected EOL Date	2034-05-15
Access Time	50ns
Case/Package	SOIC
Contact Plating	Tin
Country of Assembly	Thailand
Country of Fabrication	United States of America
Country of Origin	Thailand
Density	1Mb
Export Control Classification Number (ECCN) Code	3A991.b.1.b.2
Frequency	20MHz
Height	1.98mm
Harmonized Tariff Schedule (HTS) Code	8542.32.0051
Interface	SPI, Serial
Introduction Date	2007-05-15
Lead Free	Lead Free
Length	5.26mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	20MHz
Max Operating Temperature	125°C
Max Supply Voltage	5.5V
Memory Type	EEPROM
Min Operating Temperature	-40°C
Min Supply Voltage	2.5V
Mount	Surface Mount
Nominal Supply Current	10mA
Number of Pins	8
Number of Words	128000
Packaging	Rail/Tube
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542320050, 8542320050\|8542320050\|8542320050\|8542320050\|8542320050
Width	5.25mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Microchip 25LC1024-E/SM | Microchip

Microchip

Datasheets

Onlinecomponents.com

Lifecycle Status Indicator

Production

Symbol

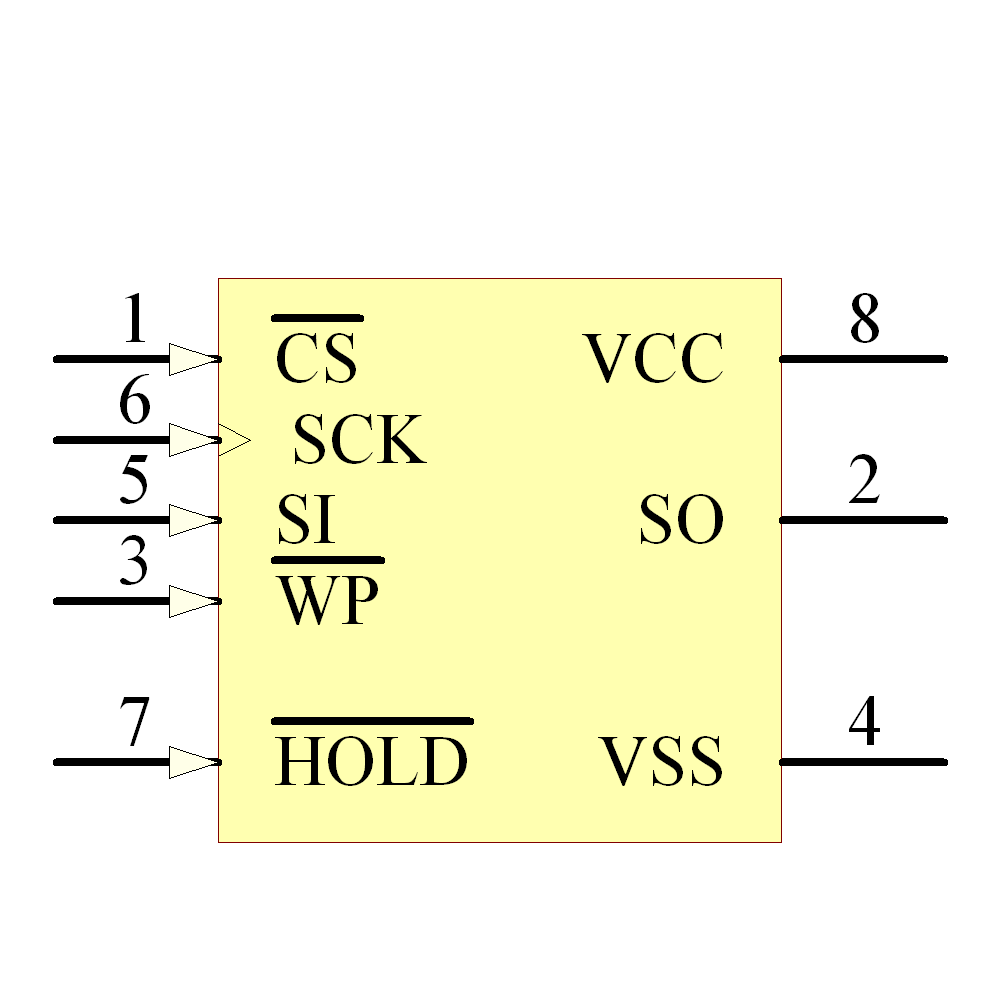

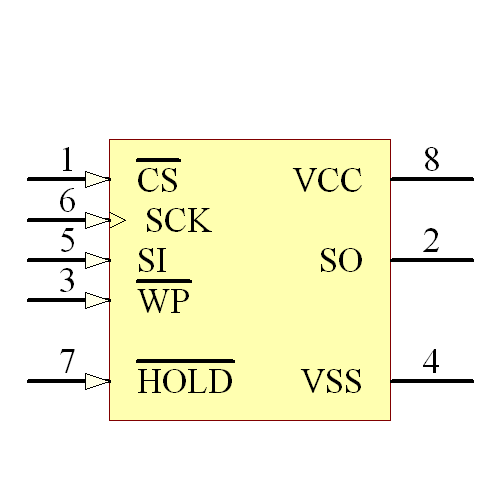

25LC1024-E/SM Symbol - Microchip

25LC1024-E/SM Symbol - Microchip

25LC1024-E/SM Symbol - Microchip

25LC1024-E/SM Symbol - Microchip

‹ ›

Footprint

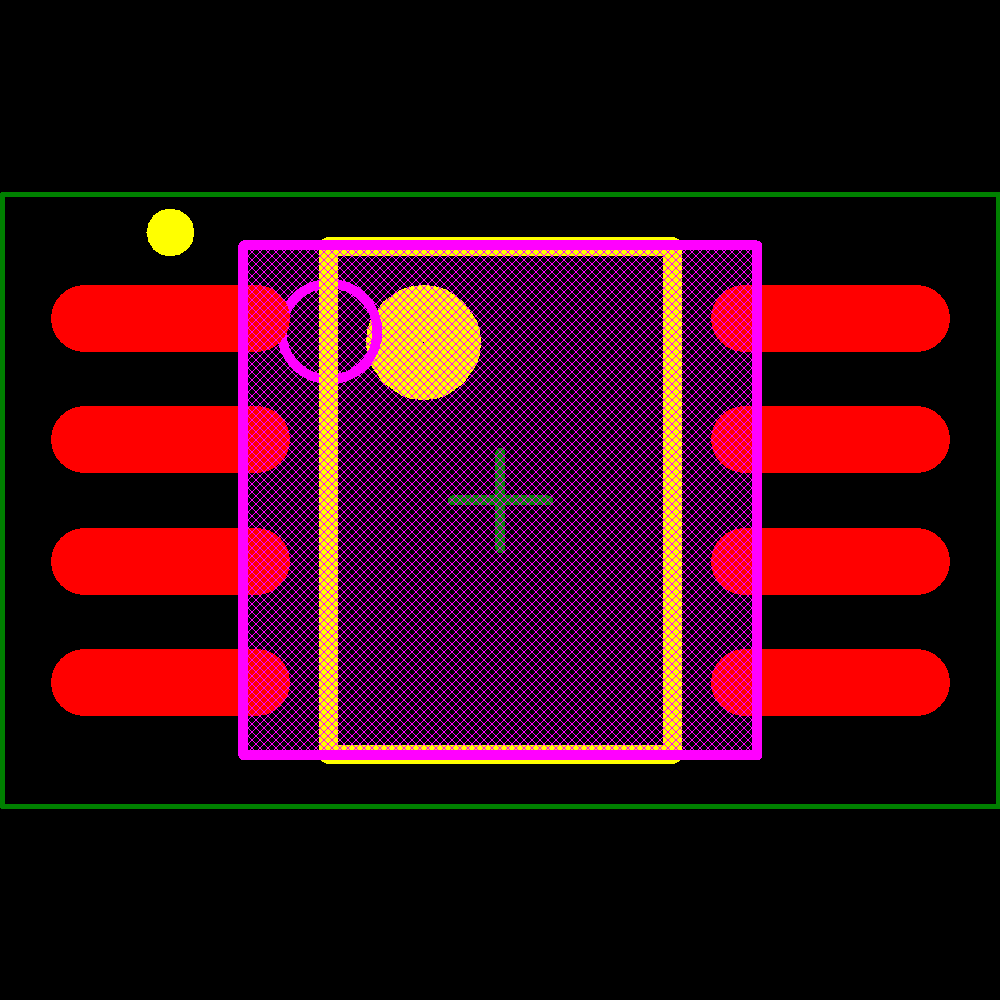

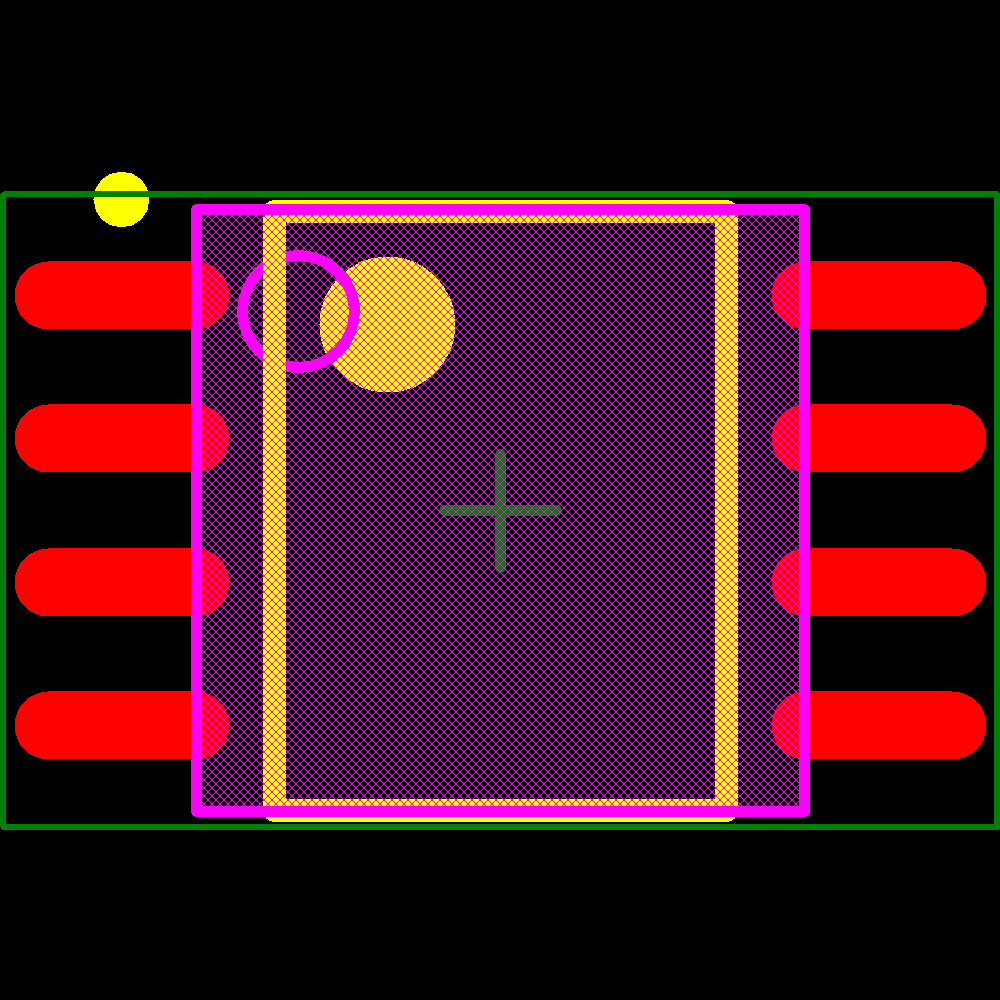

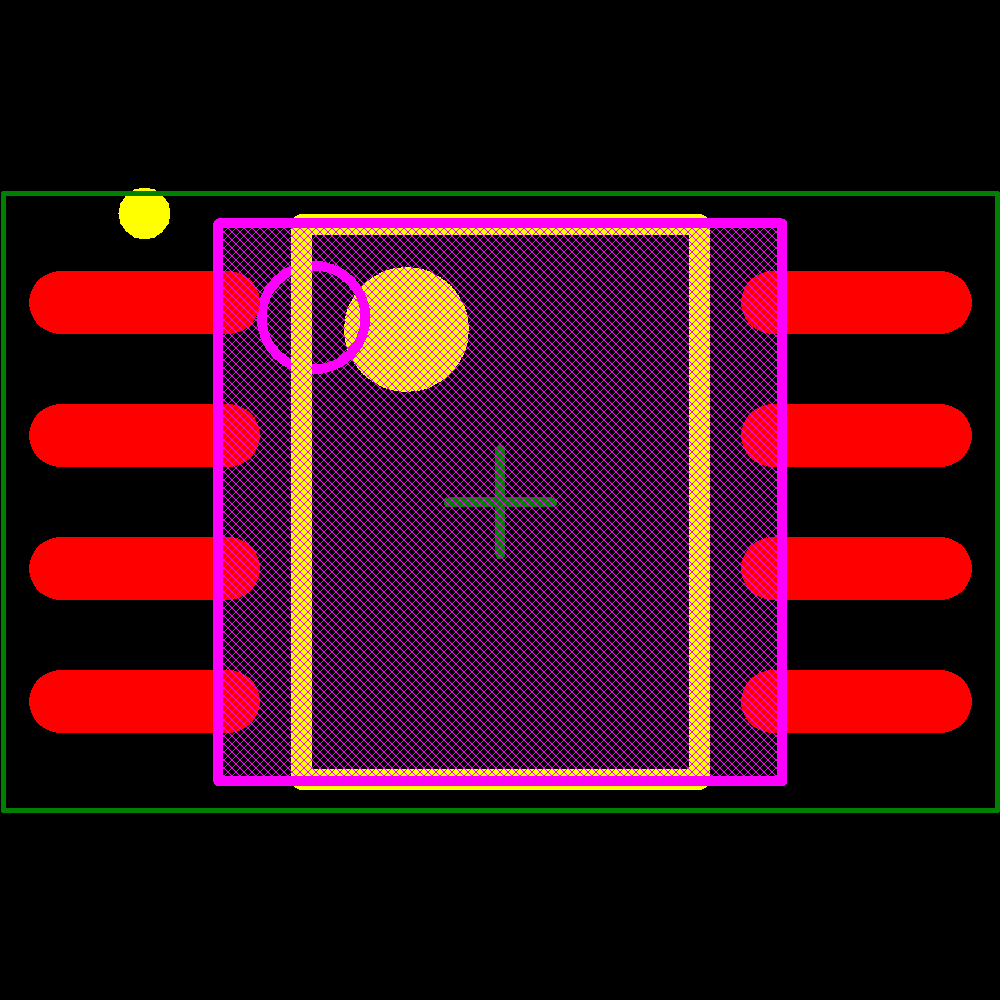

25LC1024-E/SM Footprint - Microchip

25LC1024-E/SM Footprint - Microchip

25LC1024-E/SM Footprint - Microchip

25LC1024-E/SM Footprint - Microchip

25LC1024-E/SM Footprint - Microchip

25LC1024-E/SM Footprint - Microchip

25LC1024-E/SM Footprint - Microchip

25LC1024-E/SM Footprint - Microchip

25LC1024-E/SM Footprint - Microchip

25LC1024-E/SM Footprint - Microchip

25LC1024-E/SM Footprint - Microchip

25LC1024-E/SM Footprint - Microchip

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Microchip	25LC1024T-E/SM	Production
Microchip	25LC1024-I/SM	Production
Microchip	25LC1024T-I/SM	Production
Microchip	25LC1024-E/SM16KVAO	Production
Microchip	25LC1024T-E/SM16KVAO	Production
Winbond	W25Q80BWZPIG	Obsolete
Winbond	W25X40CLUXIG	EOL
Microchip	SST25VF032B-80-4I-QAE	Unknown
Micron	M25PE10-VMP6G	Obsolete
Winbond	W25X40ALZPIG	Obsolete
