Integrated Circuits (ICs) > Memory > EEPROM

93AA56BT-I/OT - Microchip

Microwire Serial EEPROM Family, 1.8 to 5.5V, 2 MHz, -40°Cto 125°C, SOT-23-6, RoHS

Technical Details

Projected EOL Date	2034-05-23
Case/Package	SOT-23
Contact Plating	Tin
Country of Assembly	Thailand
Country of Fabrication	United States of America
Country of Origin	Thailand
Density	2kb
Export Control Classification Number (ECCN) Code	EAR99
Frequency	2MHz
Height	1.3mm
Harmonized Tariff Schedule (HTS) Code	8542.32.0051
Interface	Serial
Introduction Date	2003-05-23
Length	3.1mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	1MHz
Max Operating Temperature	85°C
Max Supply Voltage	5.5V
Memory Size	256B
Memory Type	EEPROM
Min Operating Temperature	-40°C
Min Supply Voltage	1.8V
Mount	Surface Mount
Nominal Supply Current	2mA
Number of Pins	6
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542320050, 8542320050\|8542320050, 8542320050\|8542320050\|8542320050, 8542320050\|8542320050\|8542320050\|8542320050
Termination	SMD/SMT
Width	1.8mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

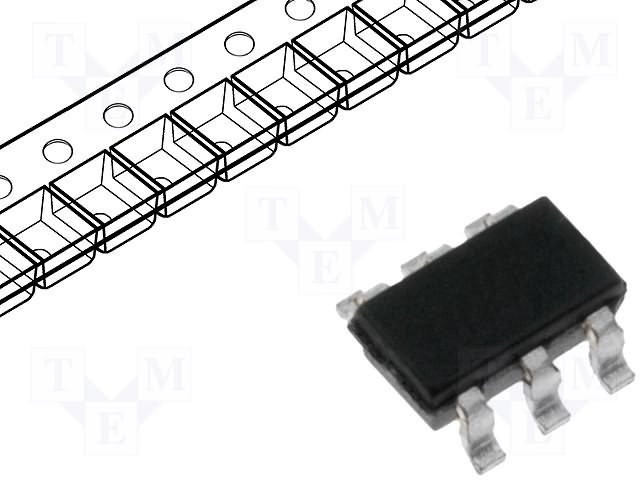

Microchip 93AA56BT-I/OT | TME

TME

Datasheets

Lifecycle Status Indicator

Production

Symbol

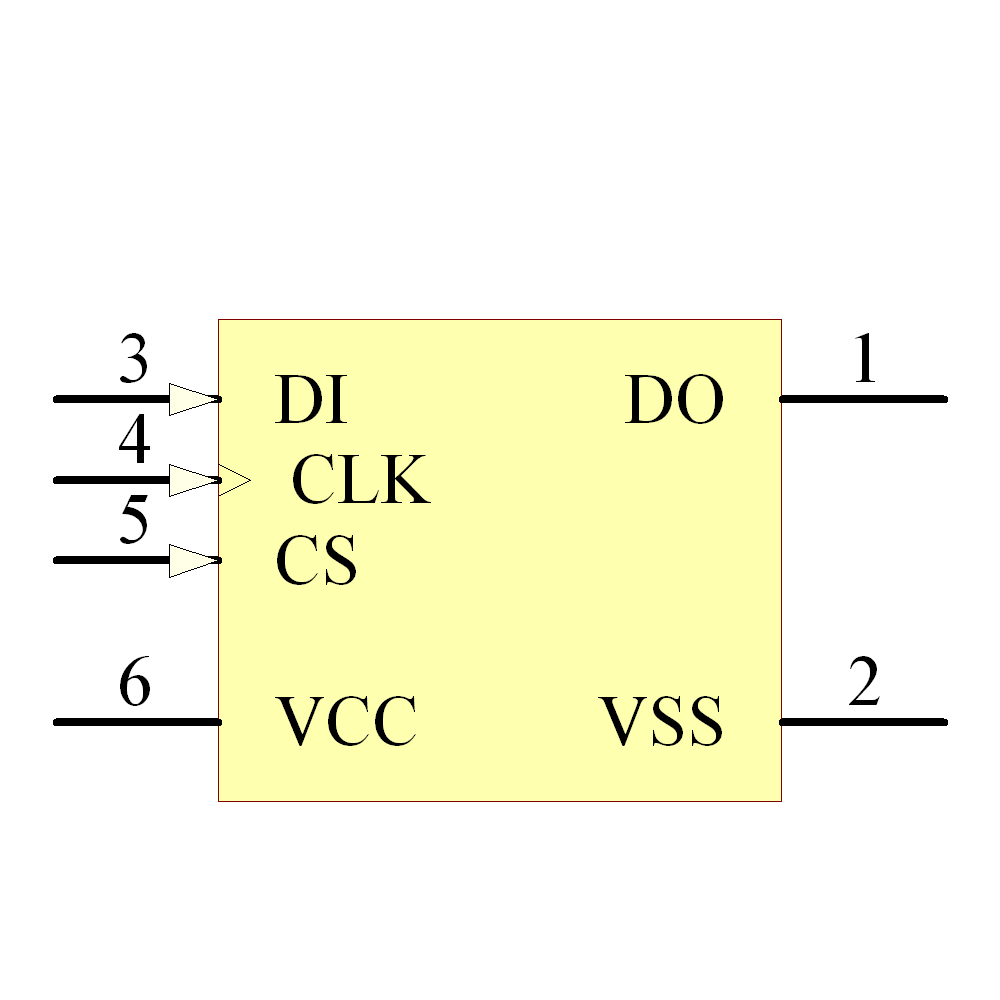

93AA56BT-I/OT Symbol - Microchip

93AA56BT-I/OT Symbol - Microchip

93AA56BT-I/OT Symbol - Microchip

93AA56BT-I/OT Symbol - Microchip

‹ ›

Footprint

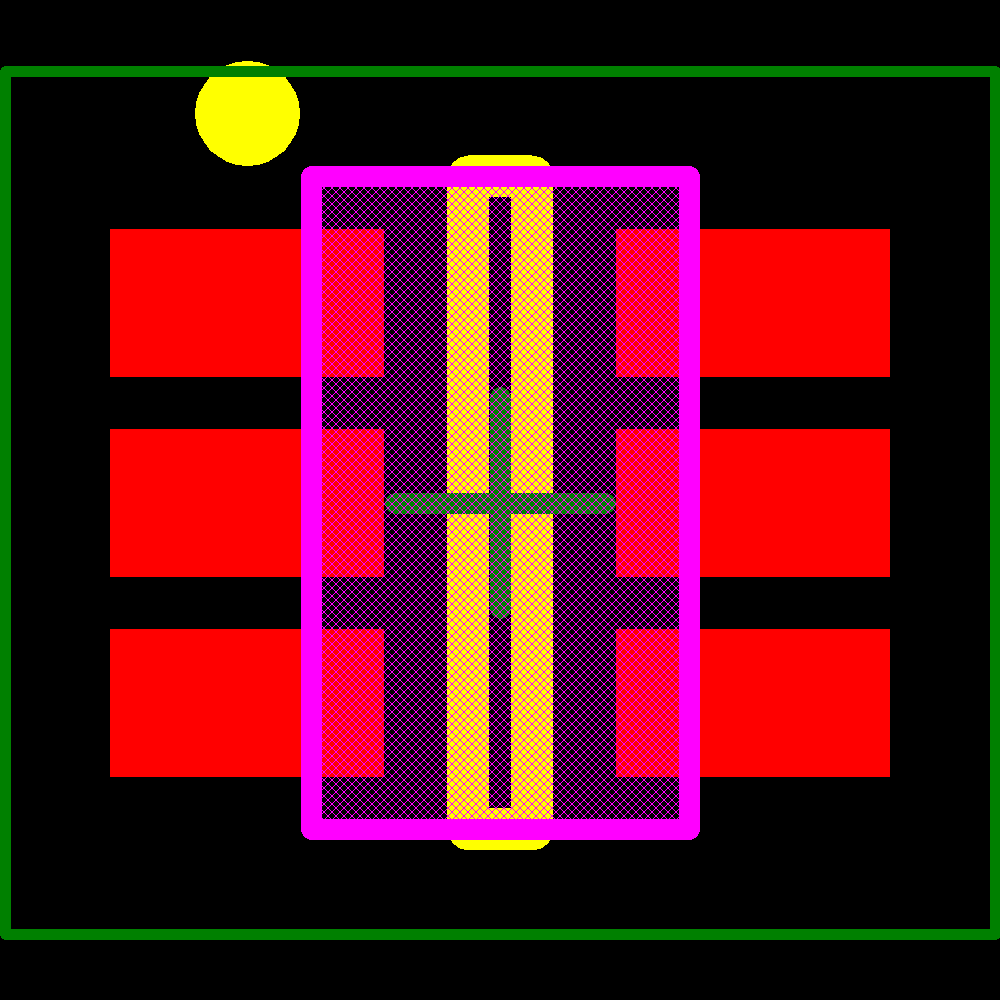

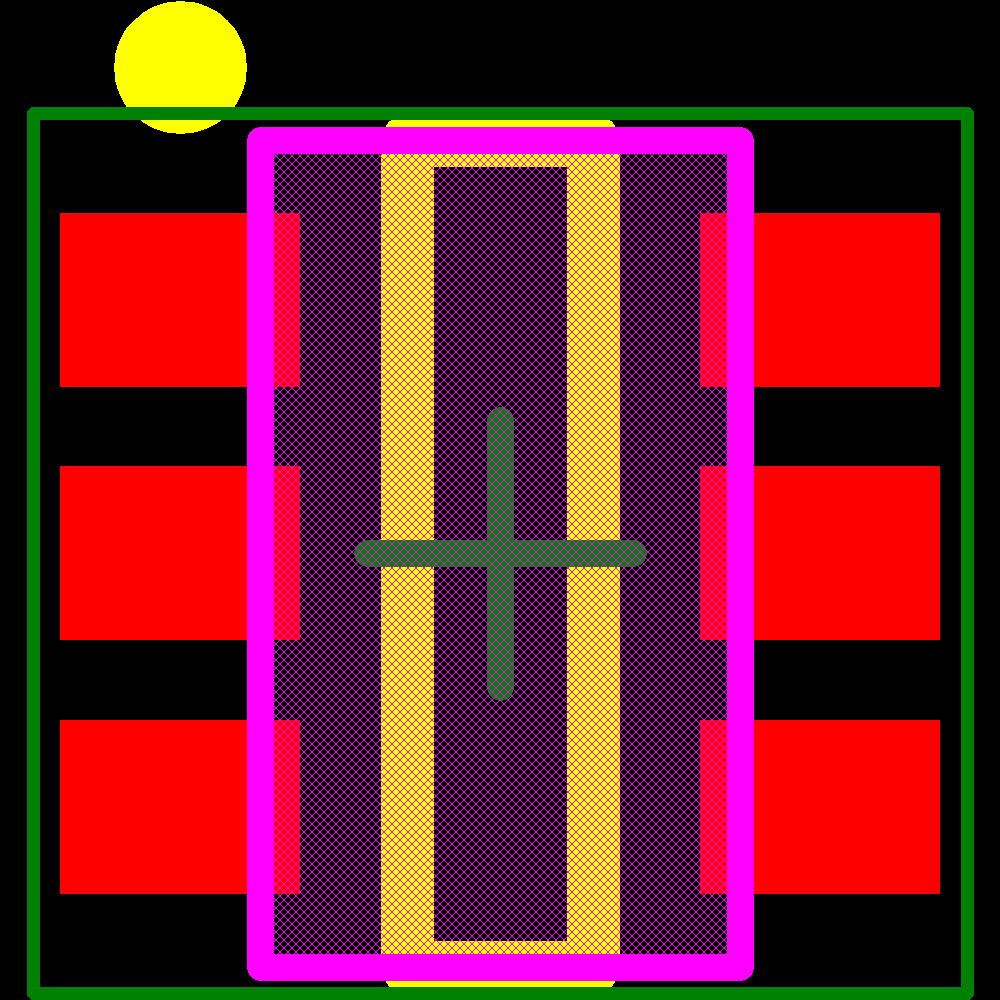

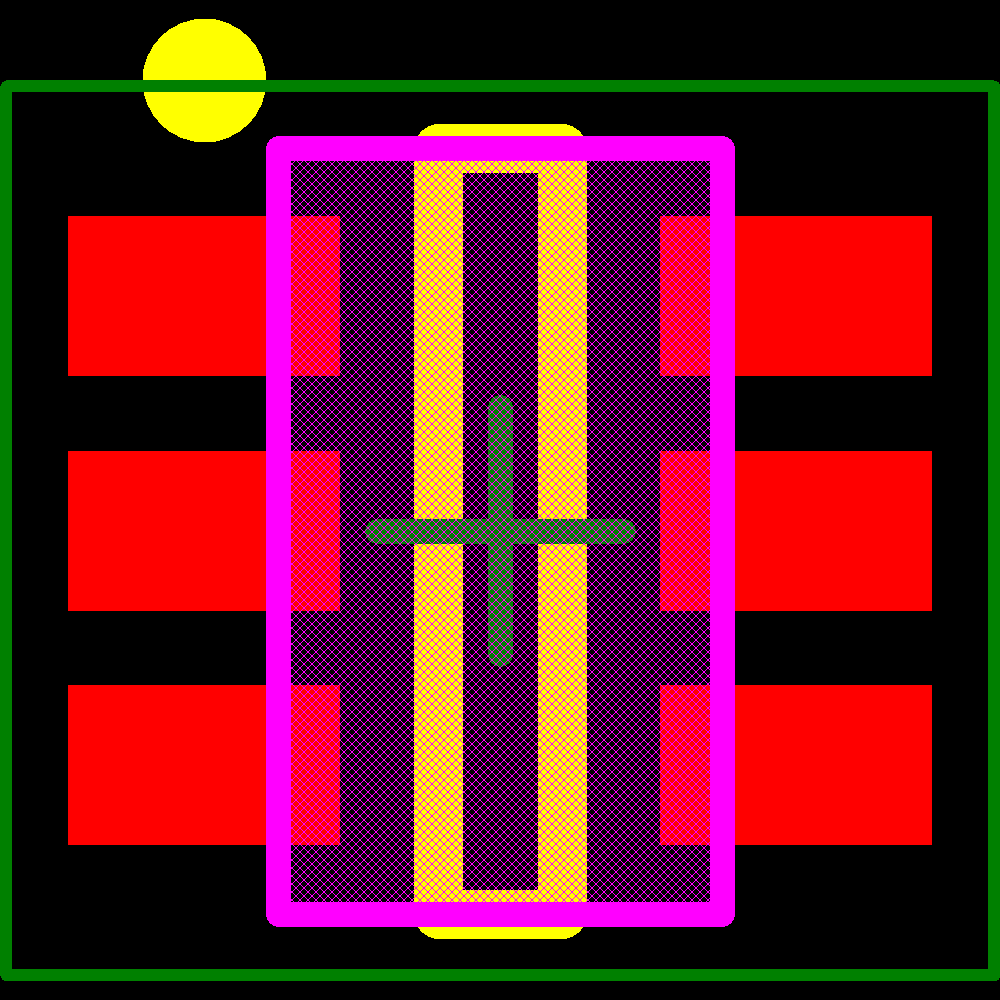

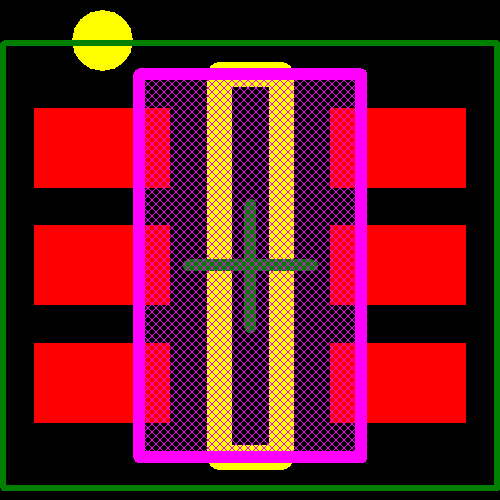

93AA56BT-I/OT Footprint - Microchip

93AA56BT-I/OT Footprint - Microchip

93AA56BT-I/OT Footprint - Microchip

93AA56BT-I/OT Footprint - Microchip

93AA56BT-I/OT Footprint - Microchip

93AA56BT-I/OT Footprint - Microchip

93AA56BT-I/OT Footprint - Microchip

93AA56BT-I/OT Footprint - Microchip

93AA56BT-I/OT Footprint - Microchip

93AA56BT-I/OT Footprint - Microchip

93AA56BT-I/OT Footprint - Microchip

93AA56BT-I/OT Footprint - Microchip

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Microchip	93AA56BT-I/OTG	Unknown
Microchip	93AA56B-I/SN	Production
Microchip	93AA56BT-I/MC	Production
Microchip	93AA56B-I/ST	Production
Microchip	93AA56BT-I/SN	Production
Microchip	93AA56BX-I/SN	Production
Microchip	93AA56BXT-I/SN	Production
Microchip	93AA56BT-I/ST	Production
Microchip	93AA56BT-I/MS	Production
Microchip	93AA56B-I/P	Production

See more alternatives See less alternatives
