93LC86BT-E/OT - Microchip
Microwire Serial EEPROM Family, 2.5Vto 5.5V' 3 MHz, -40°Cto 125°C, SOT-23-6, RoHS
Technical Details
| Projected EOL Date | 2034-01-28 |
| Access Time | 100ns |
| Contact Plating | Tin |
| Country of Assembly | Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Thailand |
| Density | 16kb |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 3MHz |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.0051 |
| Interface | Serial |
| Introduction Date | 2004-01-28 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Frequency | 3MHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Memory Type | EEPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 3mA |
| Number of Pins | 6 |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

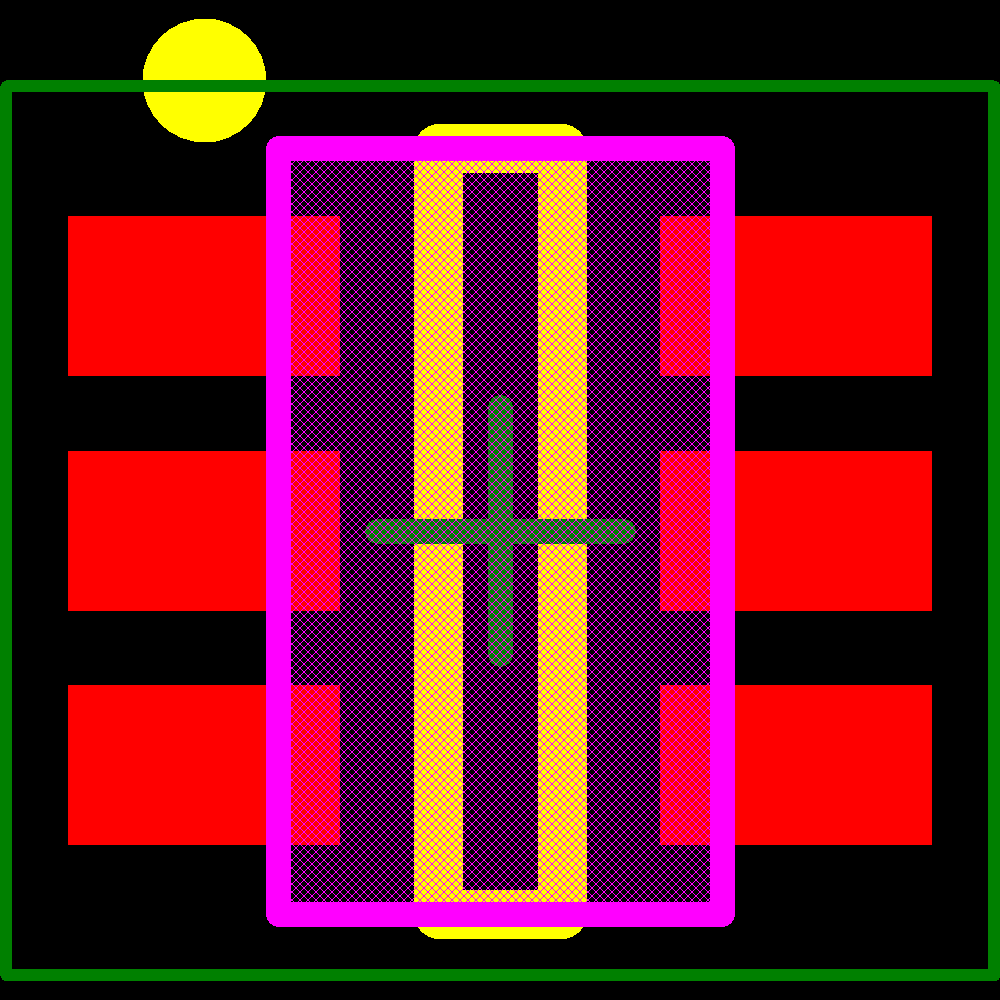

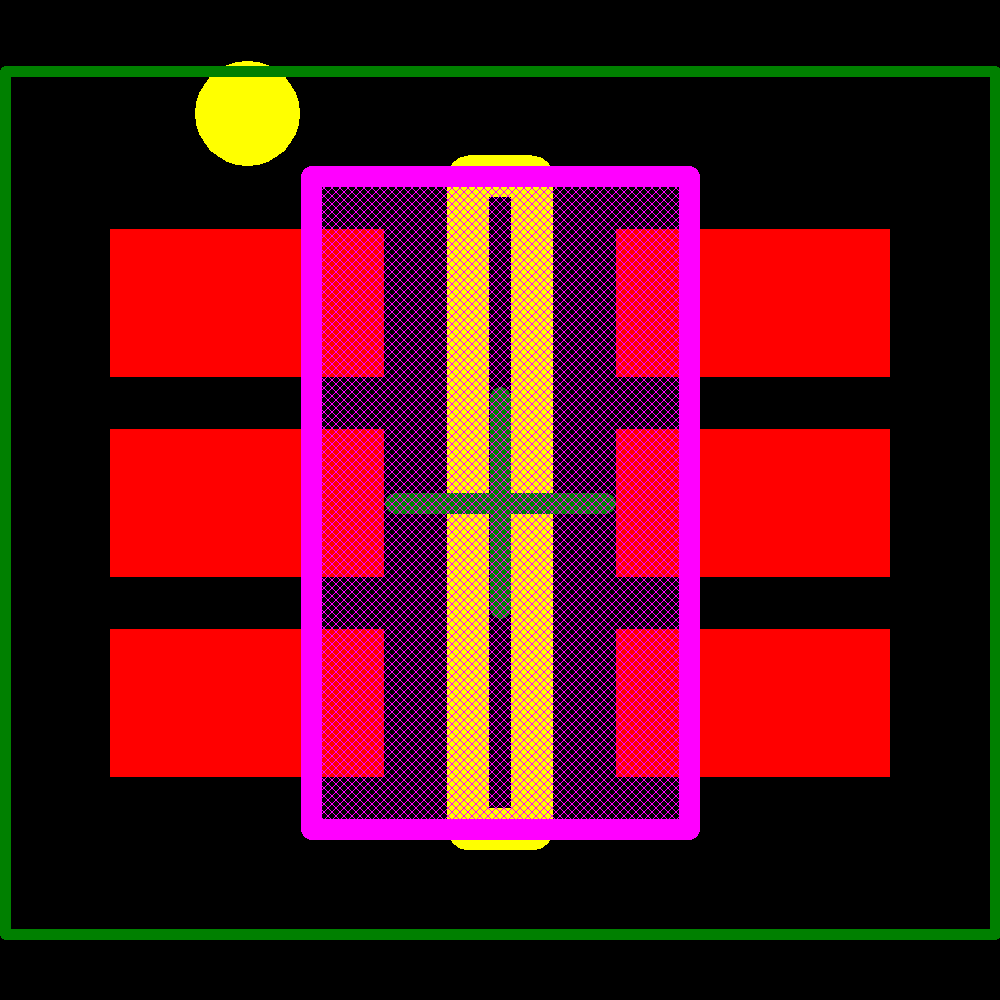

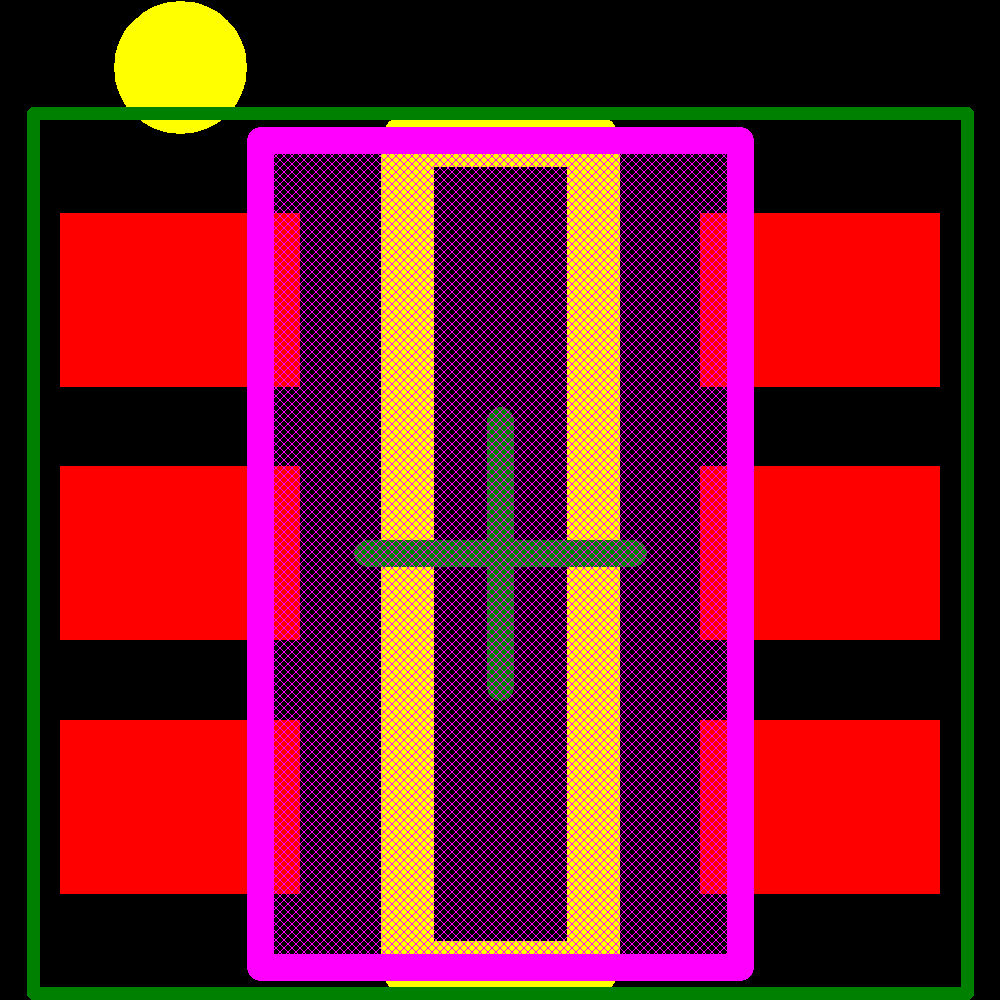

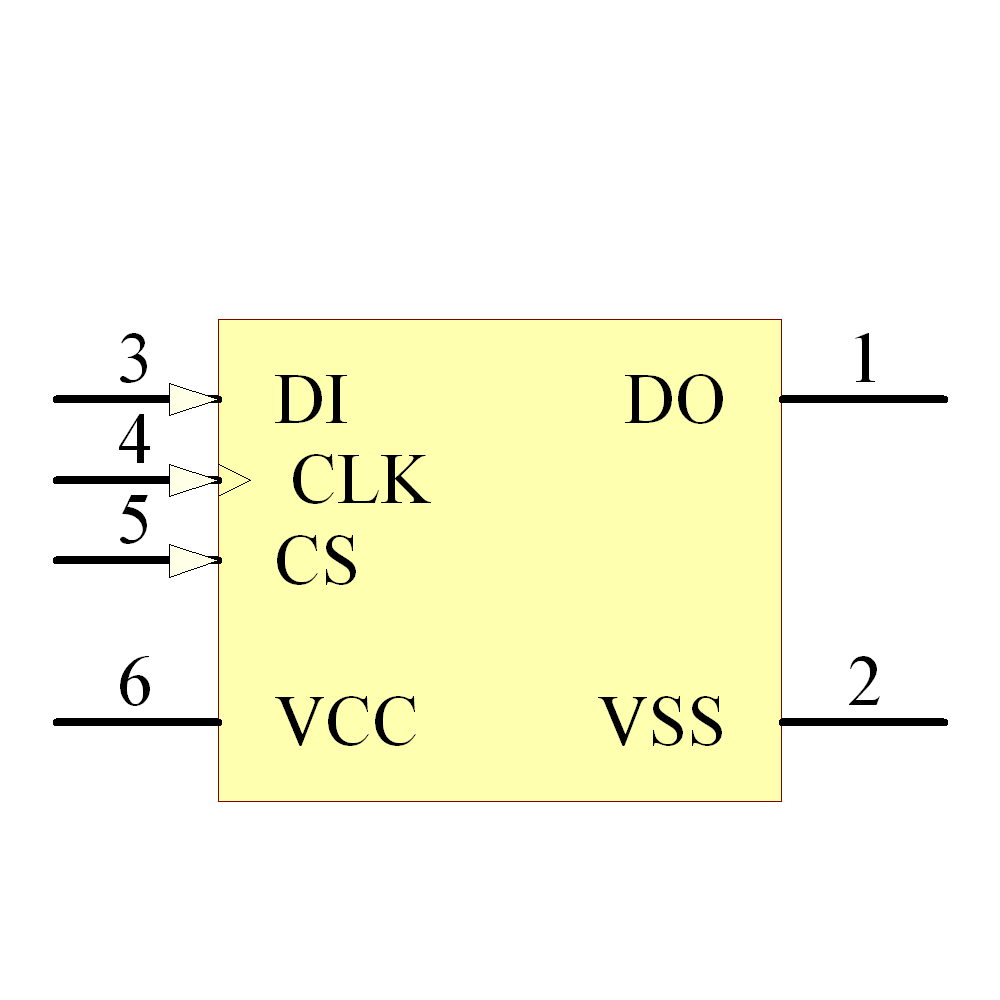

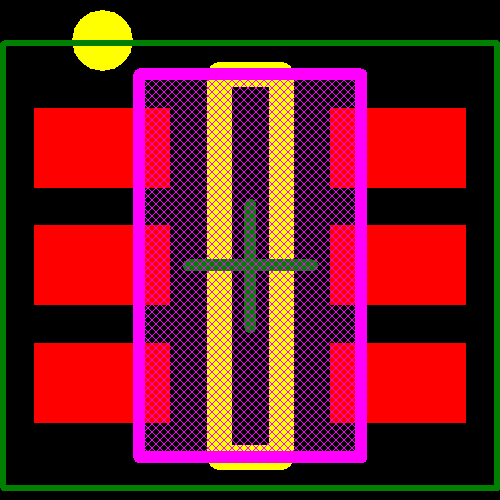

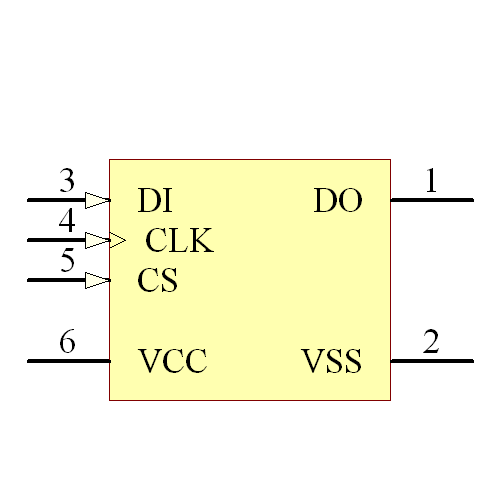

Images
Microchip
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Unknown | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| ROHM | Obsolete | ||
| Microchip | Production | ||
| Microchip | Production | ||
| ROHM | Production |
