APT33GF120BRG - Microchip
IGBT NPT Low Frequency Single 1200 V 33 A TO-247 TO-247 (B) 3-lead Tube RoHS Compliant: Yes

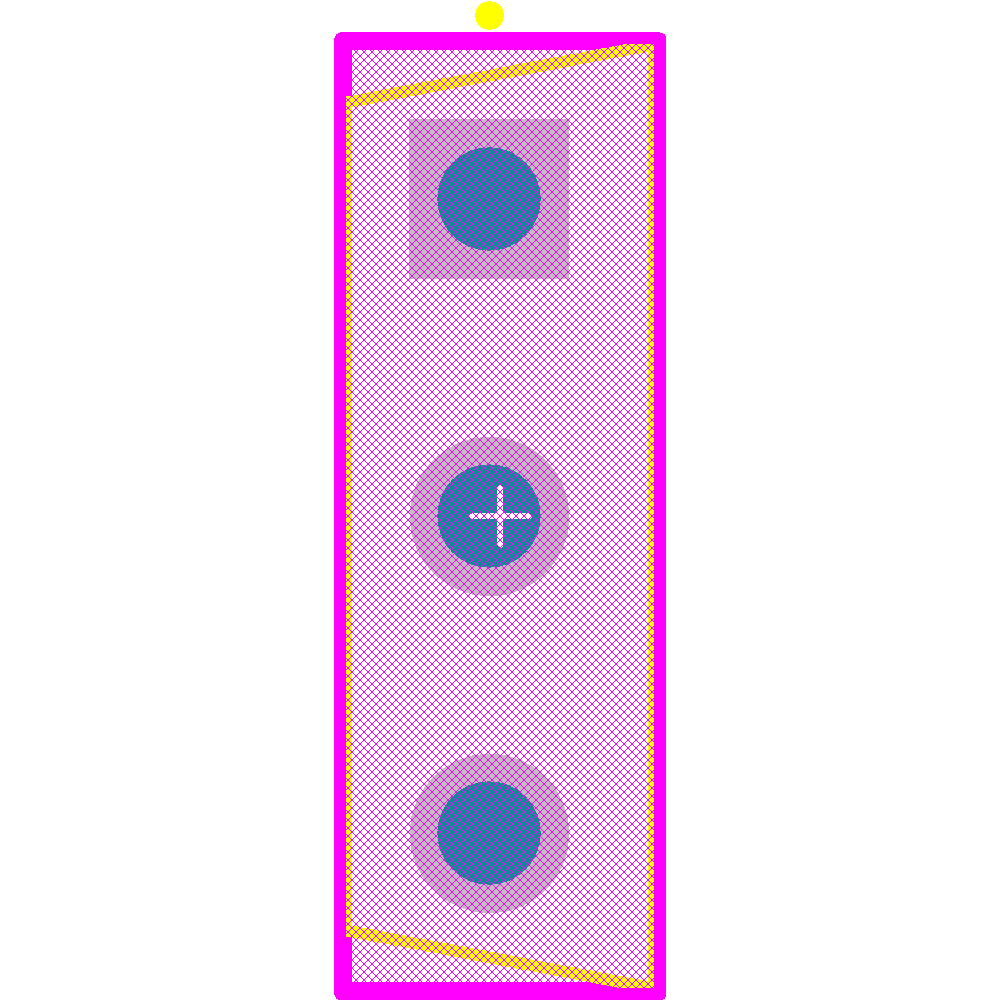

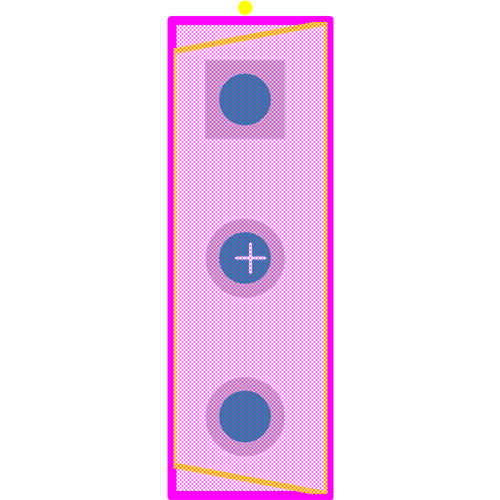

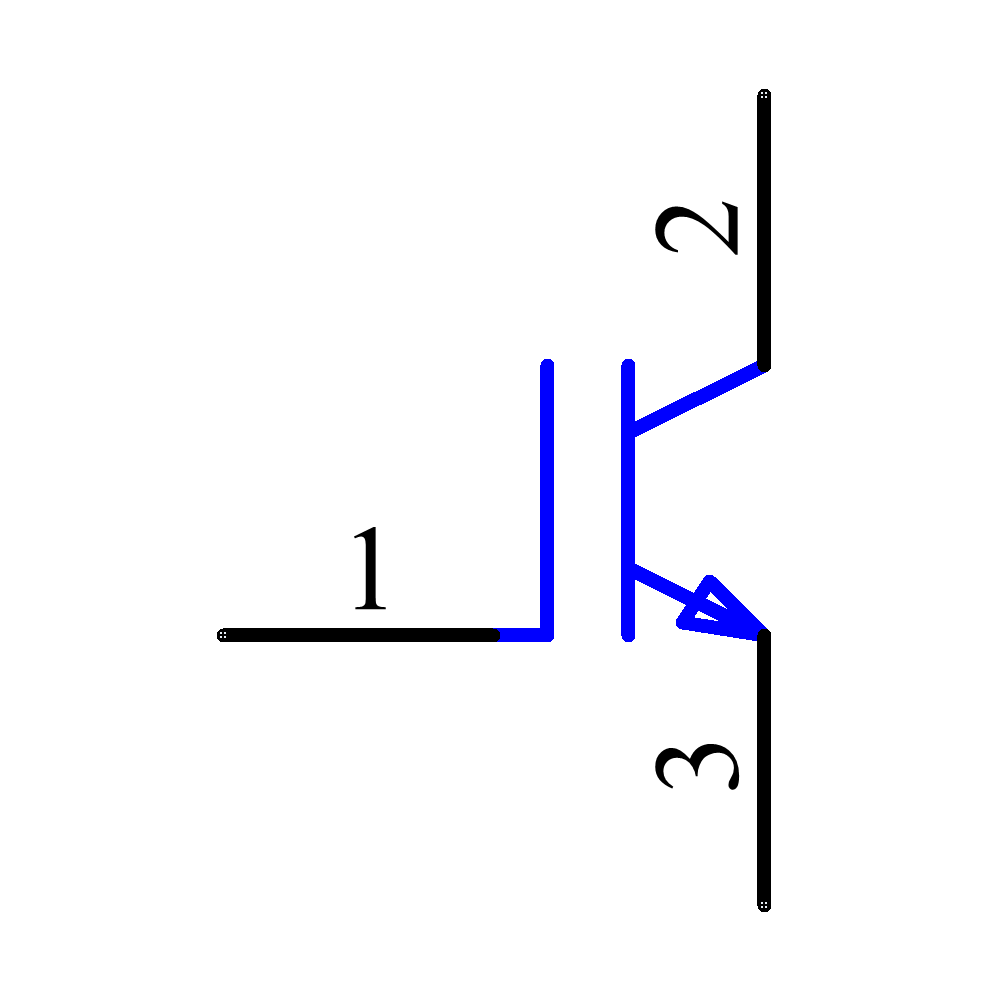

Technical Details
| Projected EOL Date | 2044-04-30 |
| Case/Package | TO-247-3 |
| Collector Emitter Breakdown Voltage | 1.2kV |
| Collector Emitter Saturation Voltage | 2.5V |
| Collector Emitter Voltage (VCEO) | 1.2kV |
| Continuous Collector Current | 52A |
| Country of Assembly | Philippines |
| Country of Fabrication | Malaysia |
| Country of Origin | PHL |
| Current Rating | 33A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Height | 25.96mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.0095 |
| Lead Free | Lead Free |
| Length | 21.46mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Collector Current | 52A |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 297W |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Pins | 3 |
| Power Dissipation | 297W |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8541290080 |
| Turn-Off Delay Time | 170ns |
| Turn-On Delay Time | 24ns |
| Voltage Rating (DC) | 1.2kV |
| Weight | 38.000013g |
| Width | 16.26mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
