APT43M60L - Microchip
MOSFET N-CH 600V 45A TO264 N-Channel 600 V 45A (Tc) 780W (Tc) Through Hole TO-264 [L]
Technical Details
| Projected EOL Date | 2025-11-07 |
| Case/Package | TO-264 |
| Continuous Drain Current (ID) | 45A |
| Country of Assembly | Philippines |
| Country of Fabrication | Japan, United States of America |
| Country of Origin | PHL |
| Current Rating | 43A |
| Drain to Source Breakdown Voltage | 600V |
| Drain to Source Resistance | 130mΩ |
| Drain to Source Voltage (Vdss) | 600V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 44ns |
| Gate to Source Voltage (Vgs) | 30V |
| Height | 29.18mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.0095 |
| Input Capacitance | 8.59nF |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PHAS |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 780W |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Power Dissipation | 780W |
| Radiation Hardening | No |
| Rds On Max | 150mΩ |
| Rise Time | 55ns |
| RoHS | Compliant |
| Schedule B | 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080 |
| Turn-Off Delay Time | 145ns |
| Turn-On Delay Time | 48ns |
| Voltage Rating (DC) | 600V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

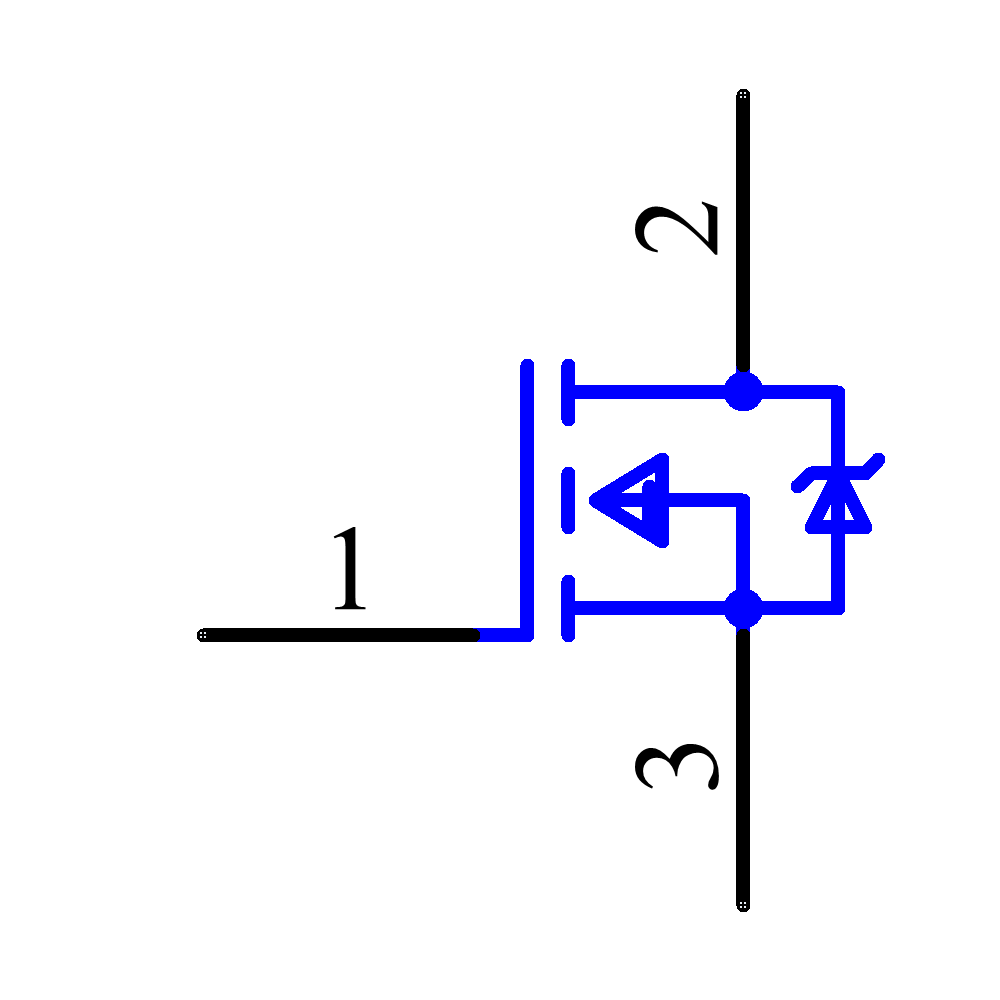

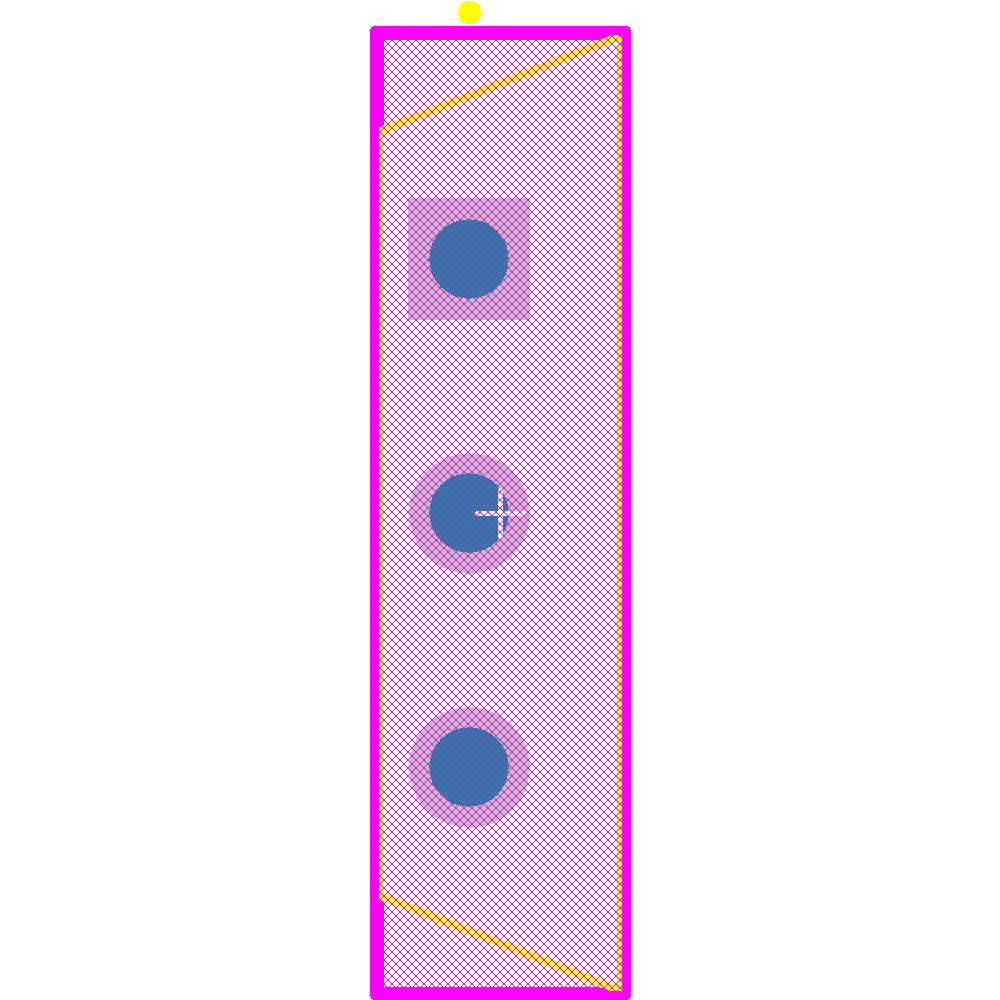

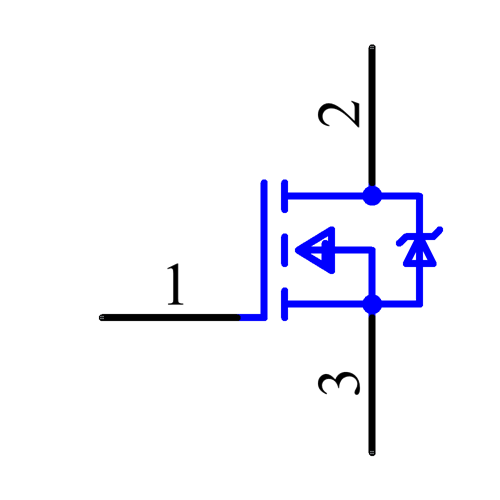

Images
