AT86RF212-ZU - Microchip
Low Power 800/900 MHz Transceiver for IEEE 802.15.4- 2006, ZigbeeTM, and ISM Applications
Technical Details
| Case/Package | QFN |
| Current - Receiving | 9.2mA |
| Current - Transmitting | 25mA |
| Data Rate | 1Mbps |
| Depth | 5mm |
| Height | 1mm |
| Interface | SPI |
| Length | 5mm |
| Max Frequency | 928.5MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128B |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Pins | 32 |
| Number of Receivers | 1 |
| Number of Timers/Counters | 0 |
| Number of Transmitters | 1 |
| Number of UART Channels | 0 |
| Operating Supply Voltage | 3V |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Sensitivity (dBm) | -110dBm |
| Voltage | 3V |
| Width | 5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

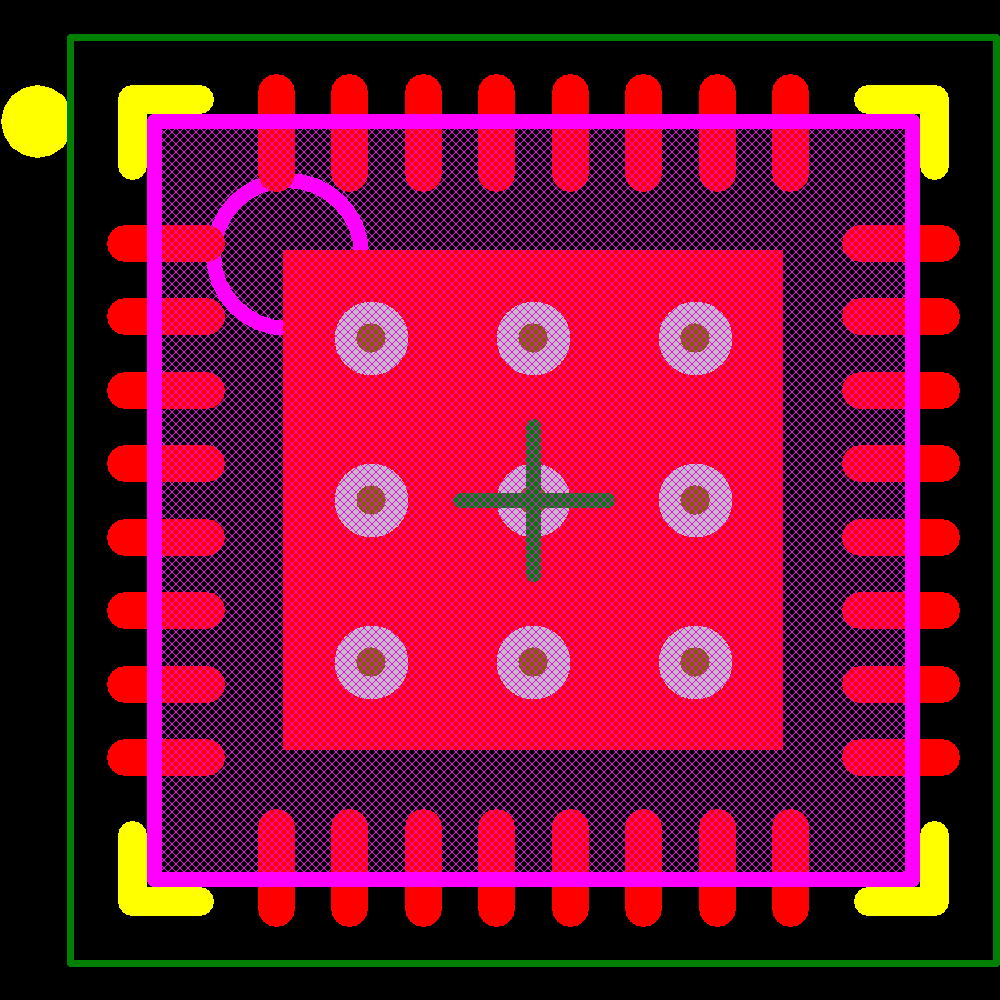

Images
Augswan
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Microchip | Unknown | ||
| Microchip | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Microchip | Unknown |
