ATMEGA128RFA1-ZFR - Microchip
IC RF TXRX+MCU 802.15.4 64VFQFN "IC RF TxRx + MCU 802.15.4 6LoWPAN, Zigbee® 2.4GHz 64-VFQFN Exposed Pad"
Technical Details
| Projected EOL Date | 2044-12-22 |
| Contact Plating | Tin |
| Core Architecture | AVR |
| Country of Assembly | Taiwan |
| Country of Fabrication | Taiwan |
| Country of Origin | Taiwan |
| Current - Receiving | 12.5mA |
| Current - Transmitting | 14.5mA |
| Data Bus Width | 8b |
| Data Rate | 2Mbps |
| Export Control Classification Number (ECCN) Code | 5A992.c |
| Frequency | 2.4GHz |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0010 |
| Interface | I2C, SPI, USART |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Frequency | 2.4GHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of ADC Channels | 8 |
| Number of GPIO | 38 |
| Number of Pins | 64 |
| Number of Programmable I/O | 38 |
| Number of Timers/Counters | 6 |
| Number of UART Channels | 1 |
| RAM Size | 4kB |
| RoHS | Compliant |
| Sensitivity (dBm) | -100dBm |
| Watchdog Timer | Yes |
Compliance
RoHS : Unconfirmed

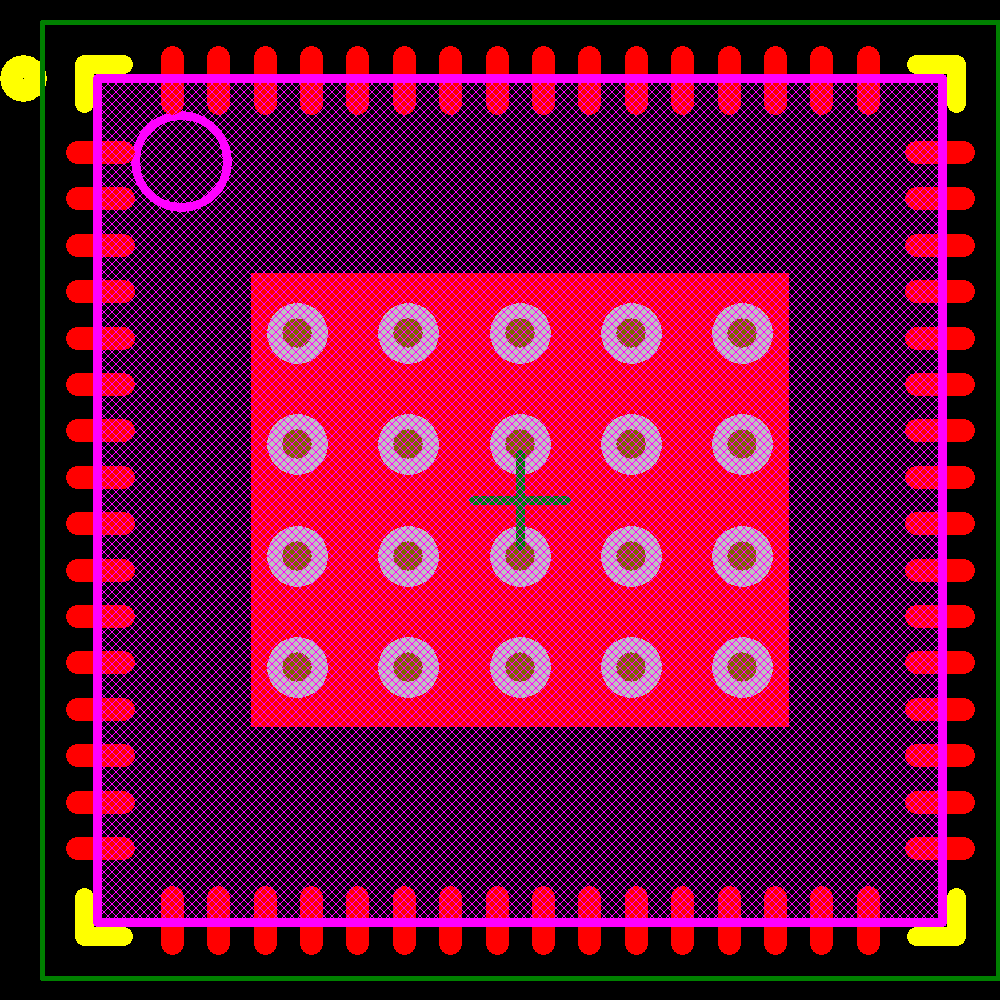

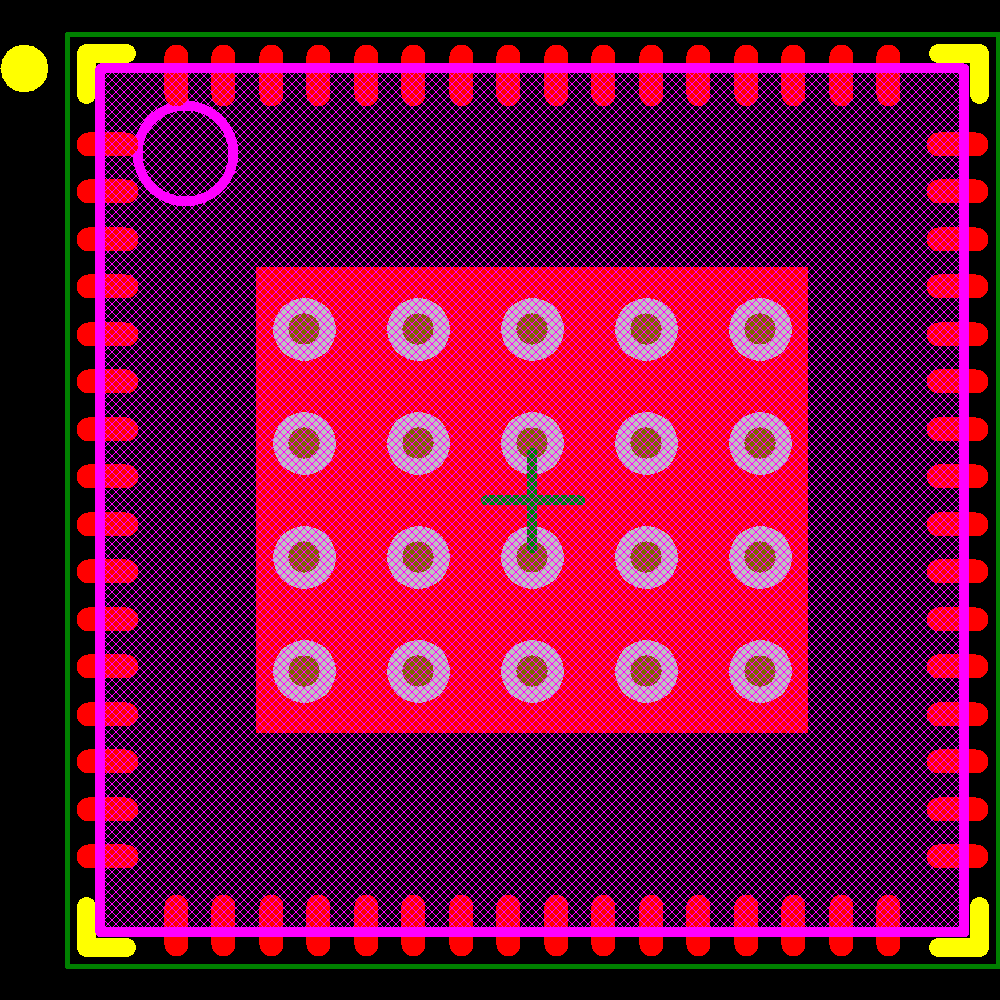

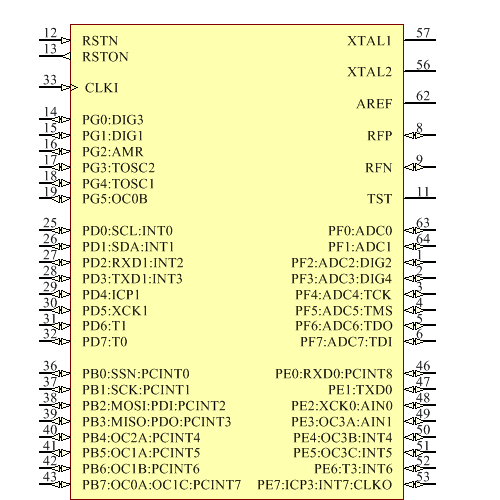

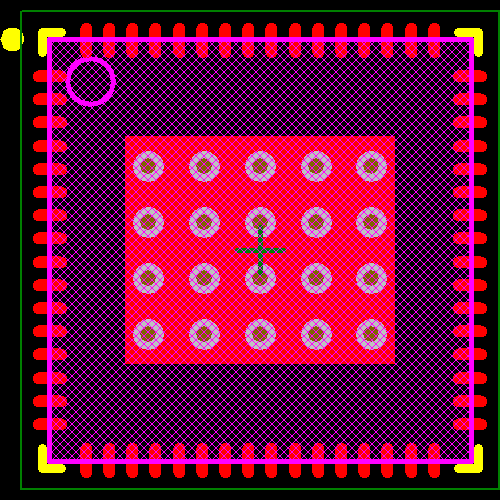

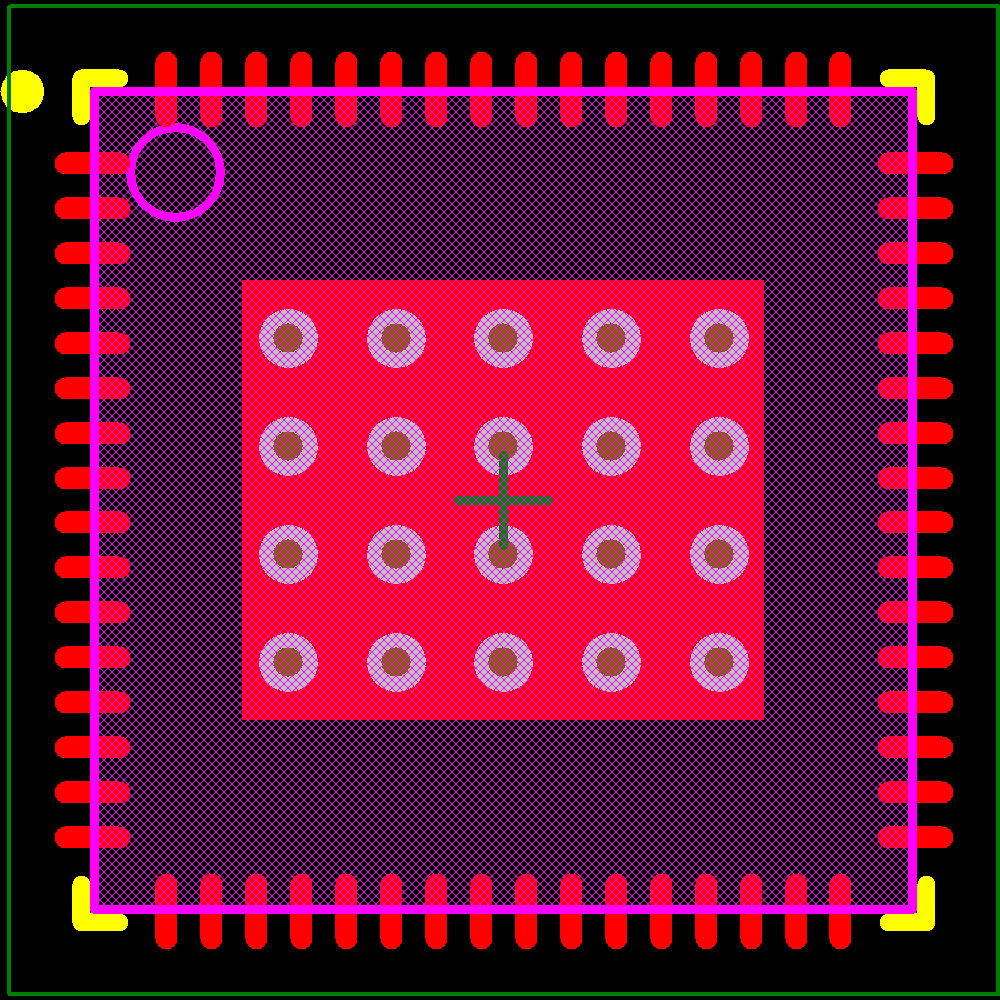

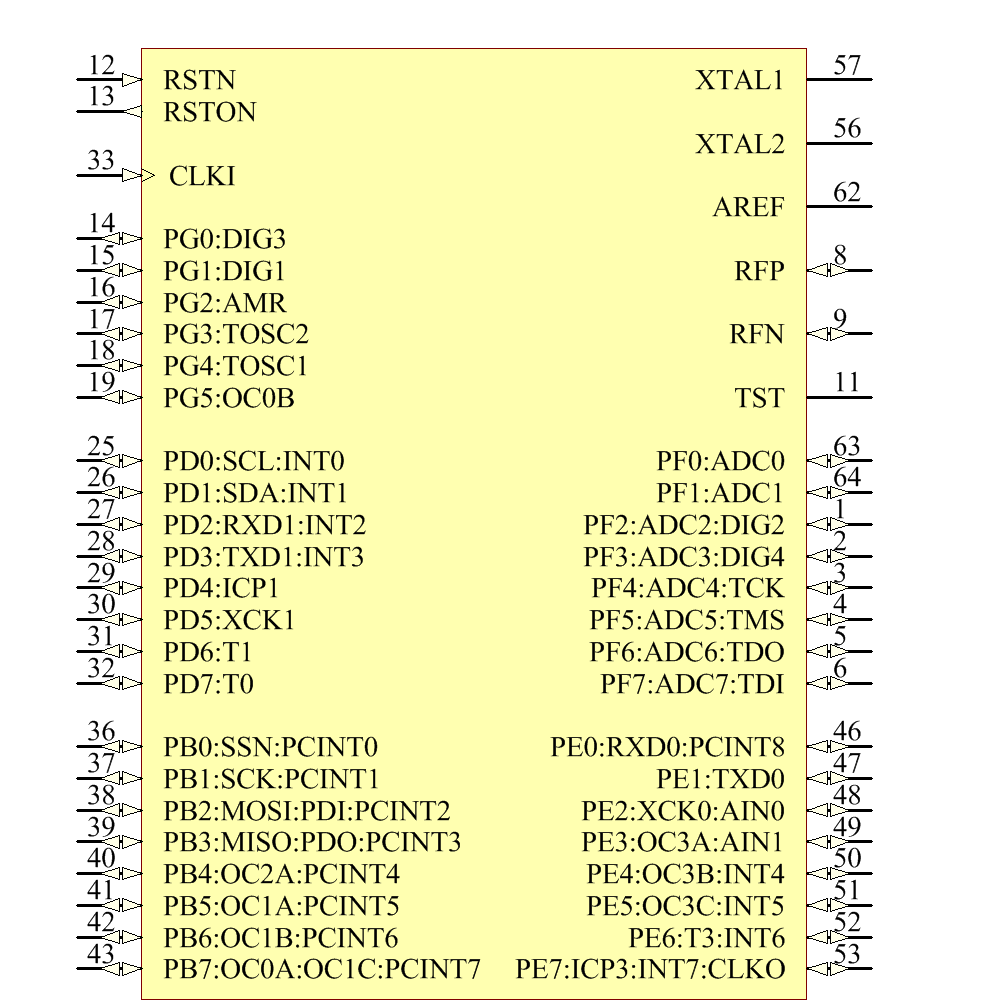

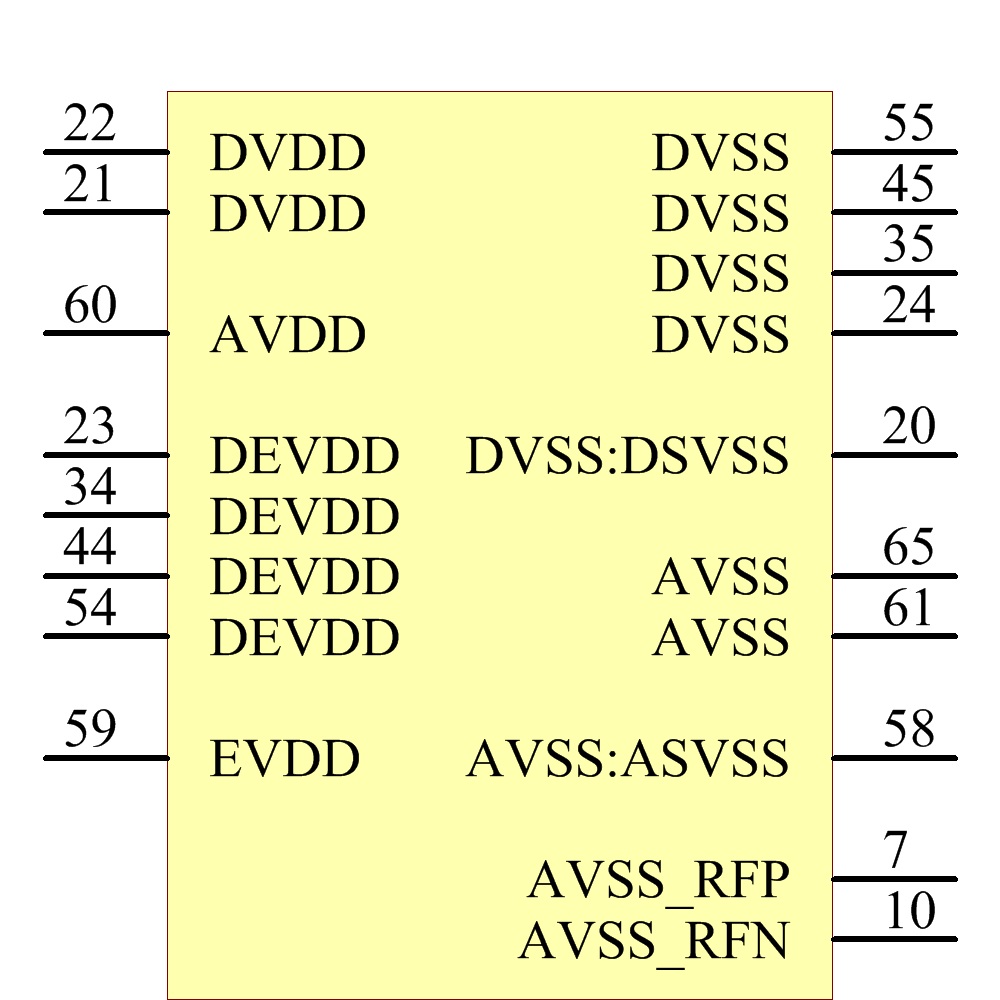

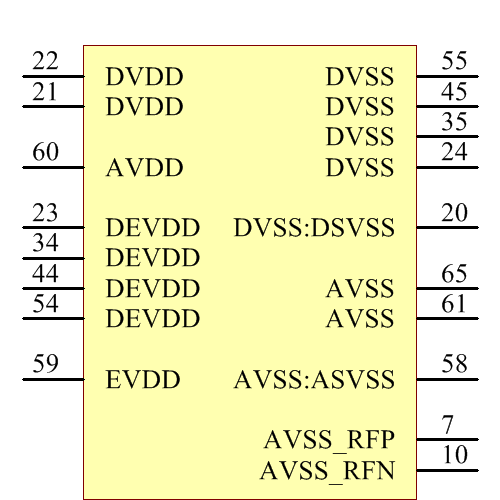

Images
