DRF1400 - Microchip
Tray On/Off 1998 Low Side power distribution switch 8V~15V 30A 240m Ohm 175C
Technical Details
| Projected EOL Date | 2044-04-30 |
| Case/Package | Module |
| Country of Assembly | United States of America |
| Country of Fabrication | Japan |
| Country of Origin | PHL, USA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 5ns |
| Height | 6.35mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.0095 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Junction Temperature (Tj) | 175°C |
| Max Operating Temperature | 175°C |
| Max Output Current | 30A |
| Max Power Dissipation | 1.1kW |
| Max Supply Voltage | 15V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Nominal Supply Current | 2mA |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Output Current | 30A |
| Output Current per Channel | 8A |
| Output Voltage | 500V |
| Propagation Delay | 35ns |
| Radiation Hardening | No |
| Resistance | 240mΩ |
| Rise Time | 5ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 50ns |
| Turn-On Delay Time | 47ns |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

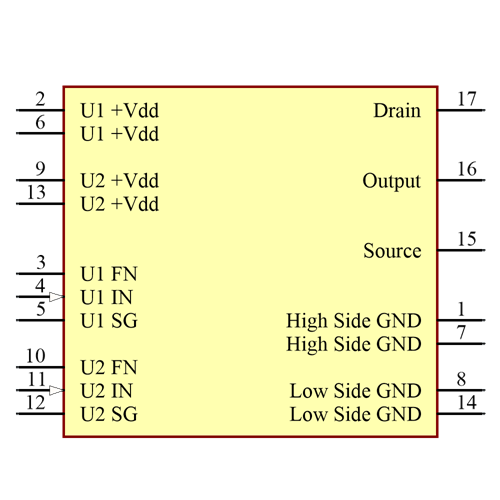

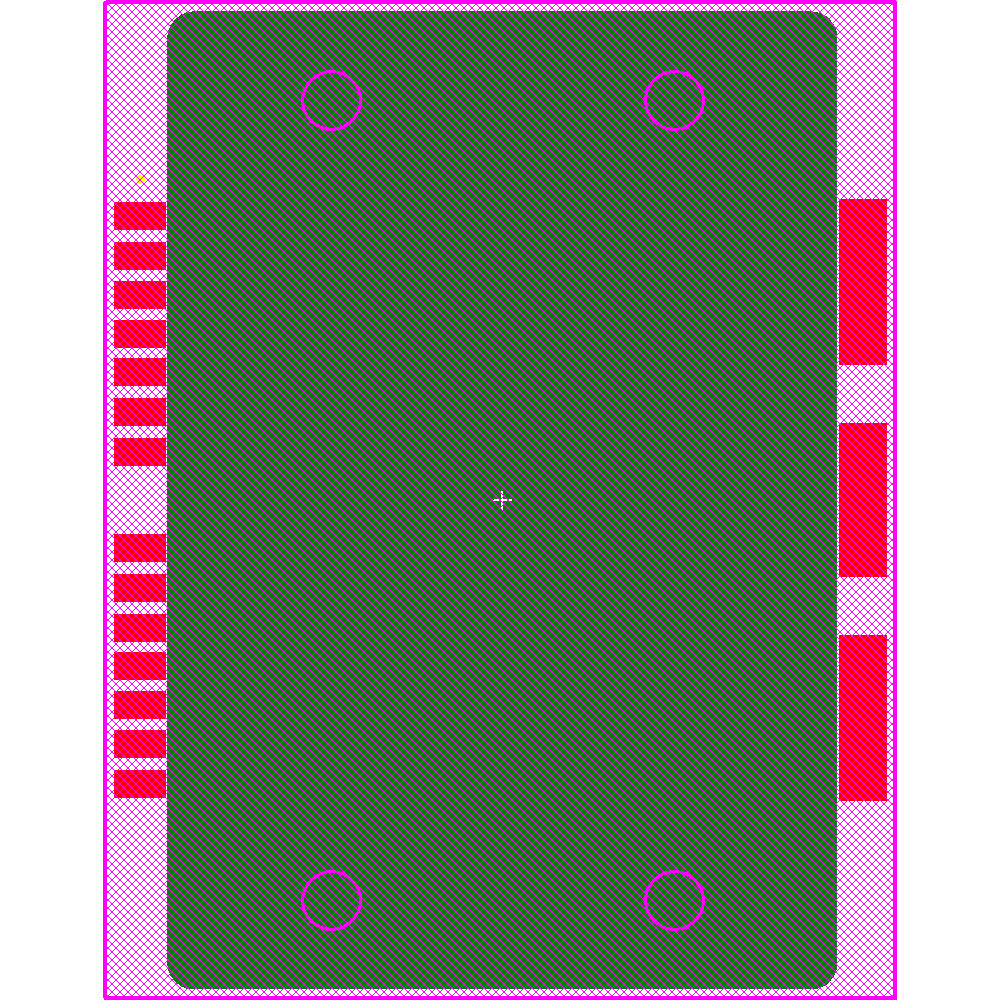

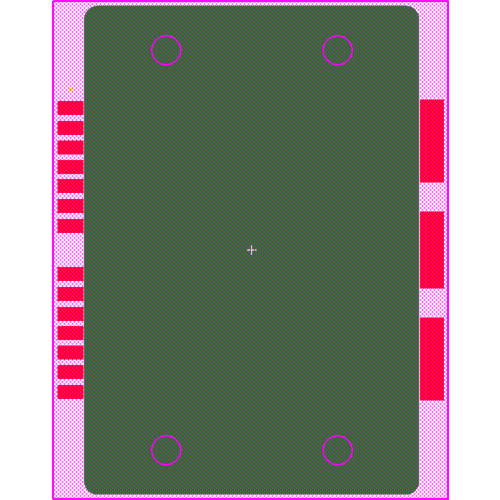

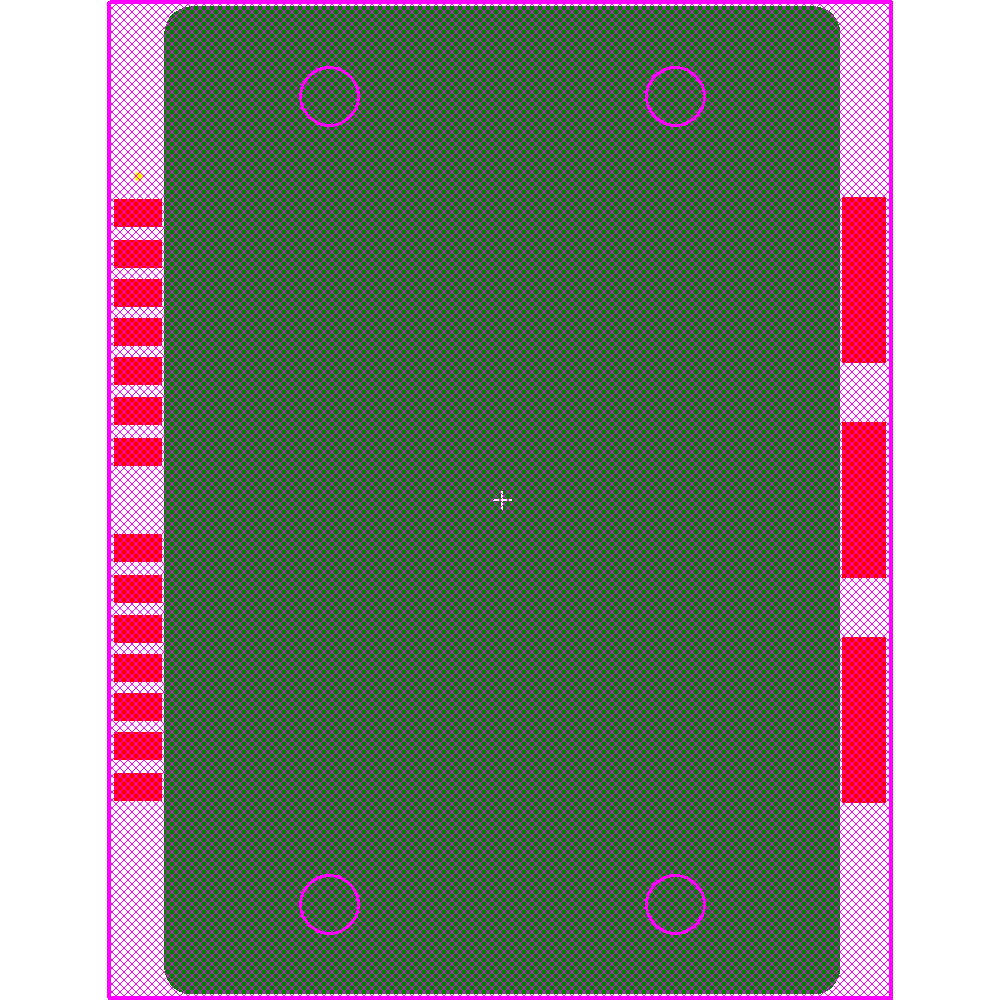

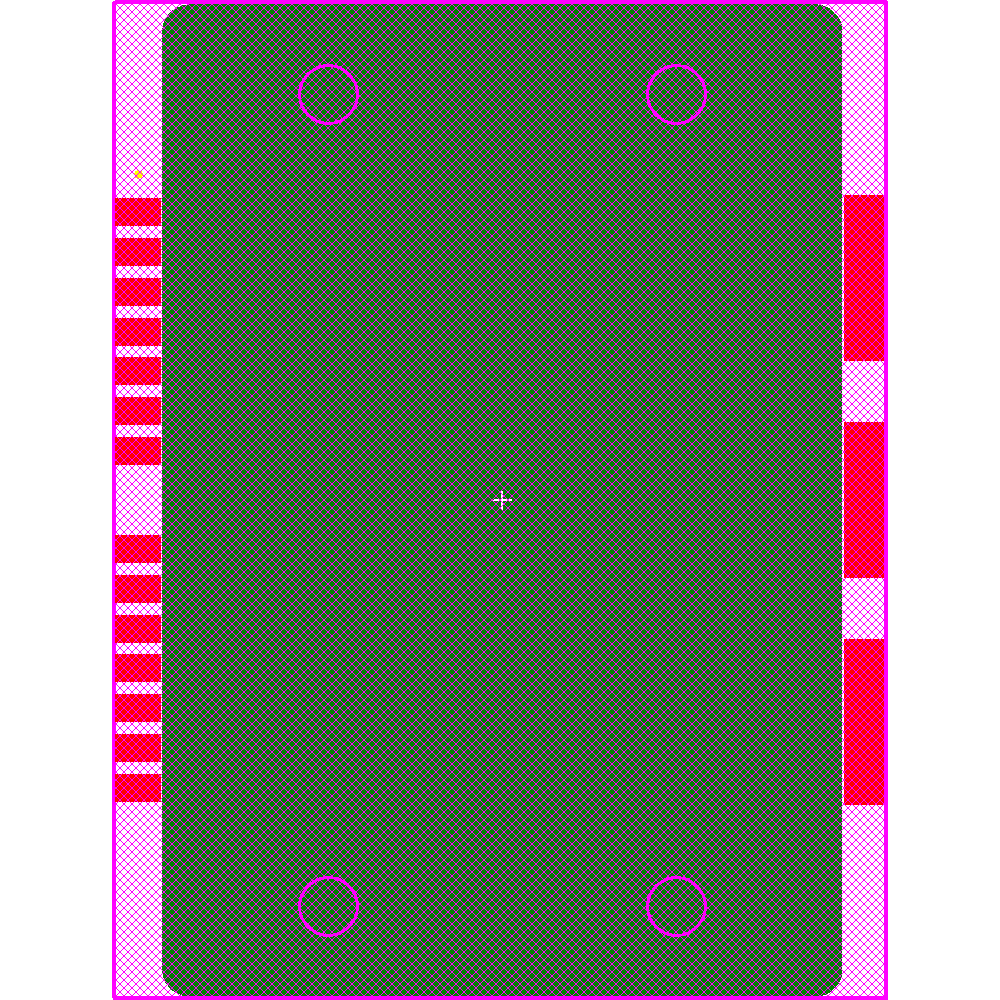

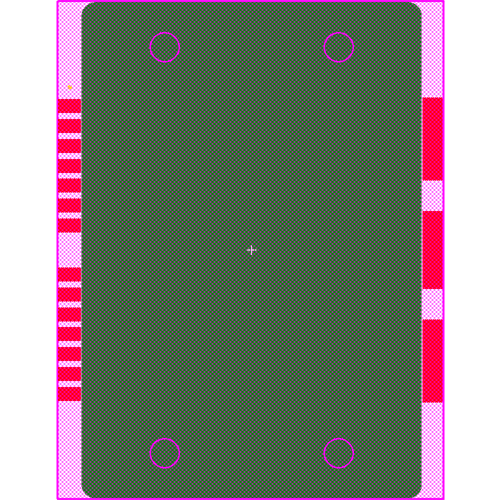

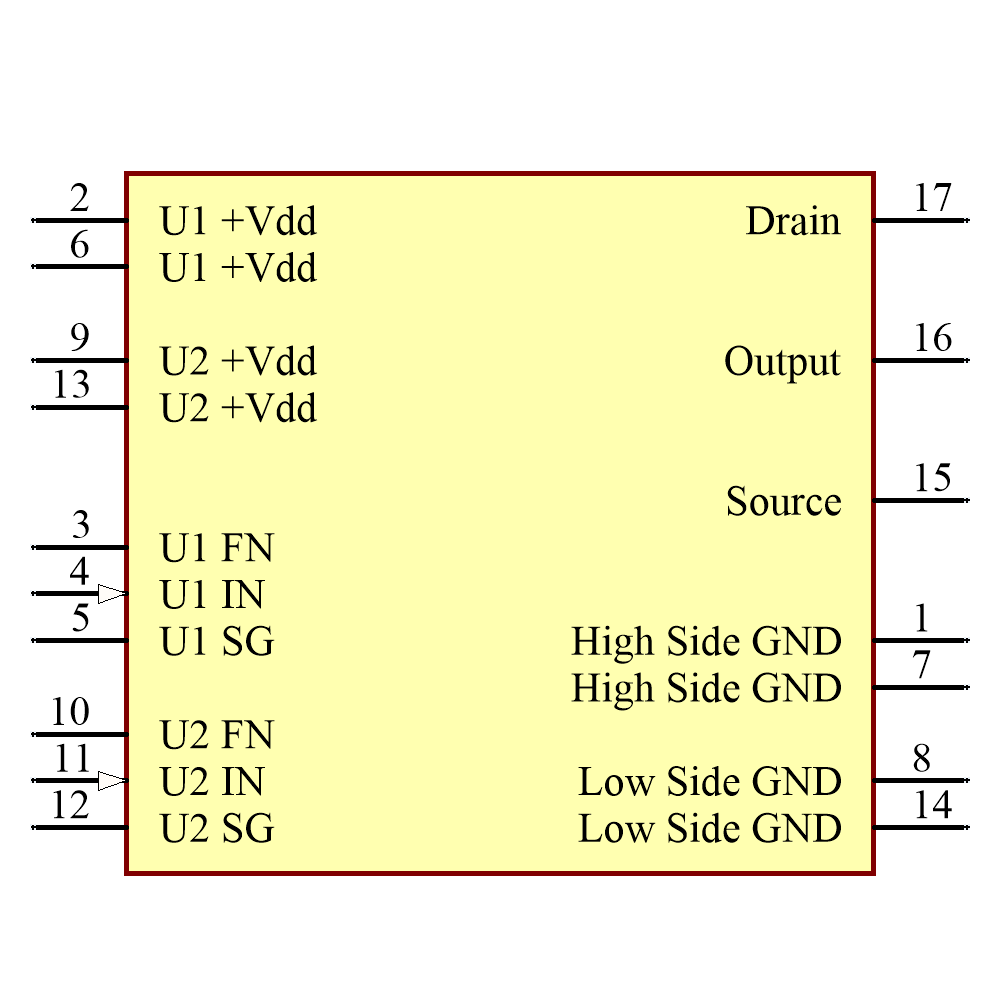

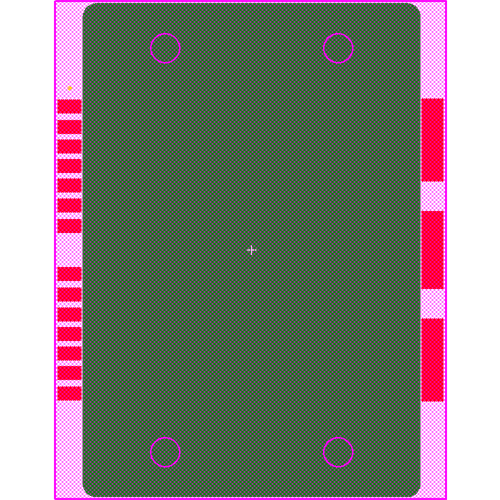

Images
