DSPIC30F2010T-20E/SO - Microchip
16-bit MCU/DSC, 12 KB, 512 Bytes, 120 MHz, 2.5 to 5.5V, SOIC-28, RoHS
Technical Details
| Projected EOL Date | 2034-11-29 |
| Core Architecture | dsPIC |
| Country of Assembly | Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Thailand |
| Data Bus Width | 16b |
| Export Control Classification Number (ECCN) Code | 3A991.a.2 |
| Frequency | 20MHz |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.0020 |
| Interface | I2C, SPI, UART, USART |
| Introduction Date | 2006-11-29 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Frequency | 20MHz |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 12kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Pins | 28 |
| Number of Programmable I/O | 20 |
| Number of Timers/Counters | 3 |
| Packaging | Tape & Reel |
| Radiation Hardening | No |
| RAM Size | 512B |
| RoHS | Compliant |
| Watchdog Timer | Yes |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

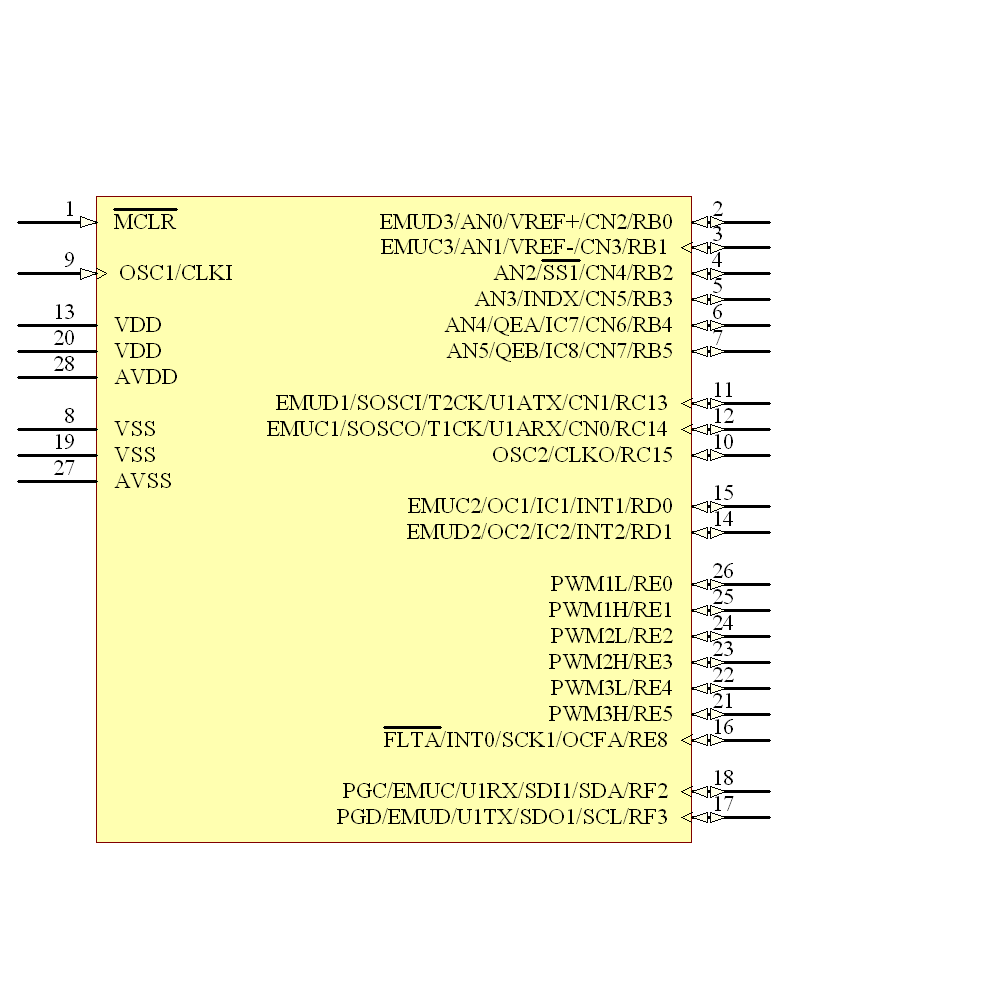

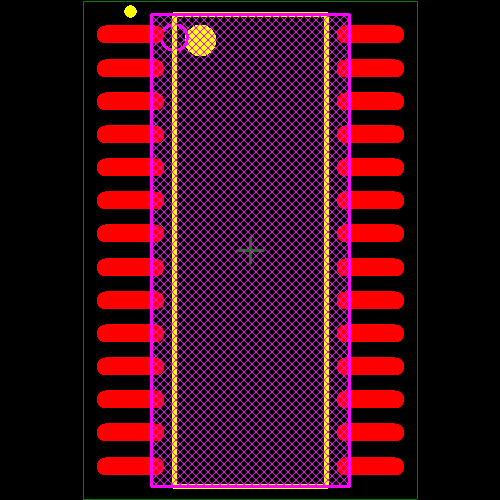

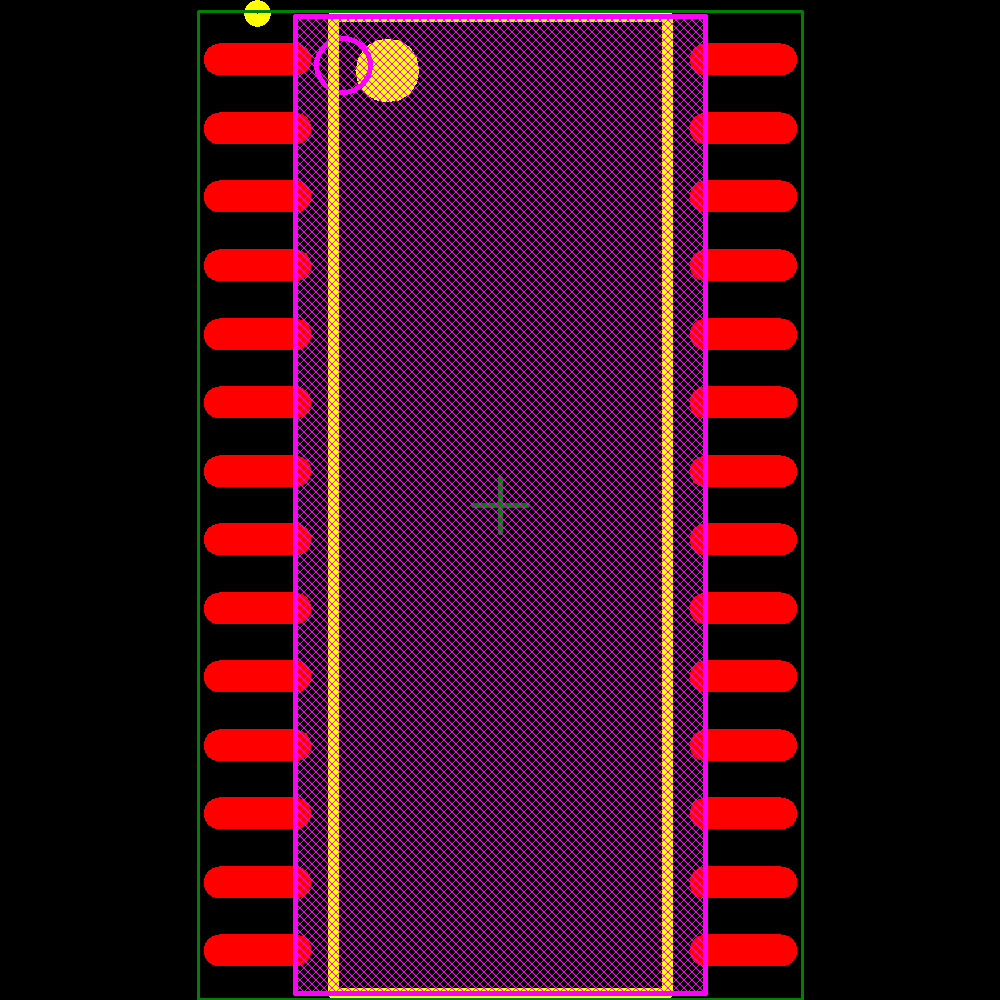

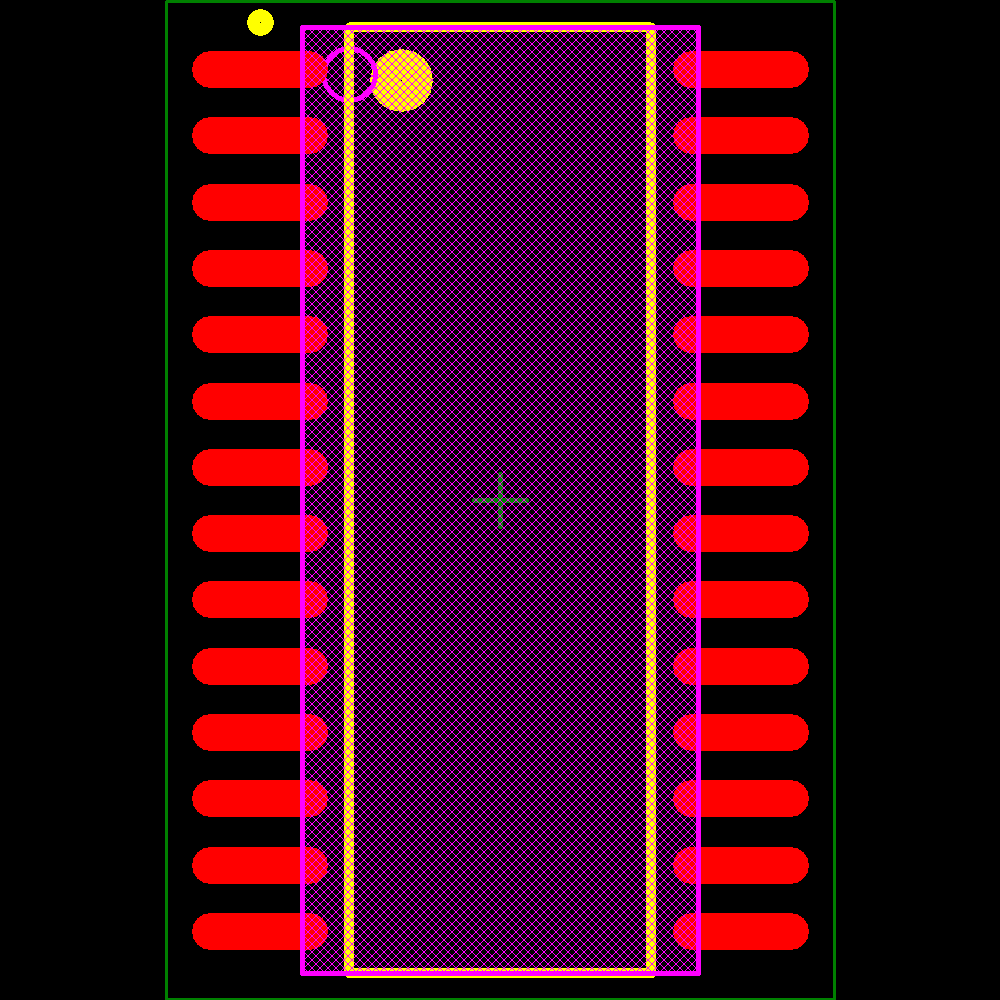

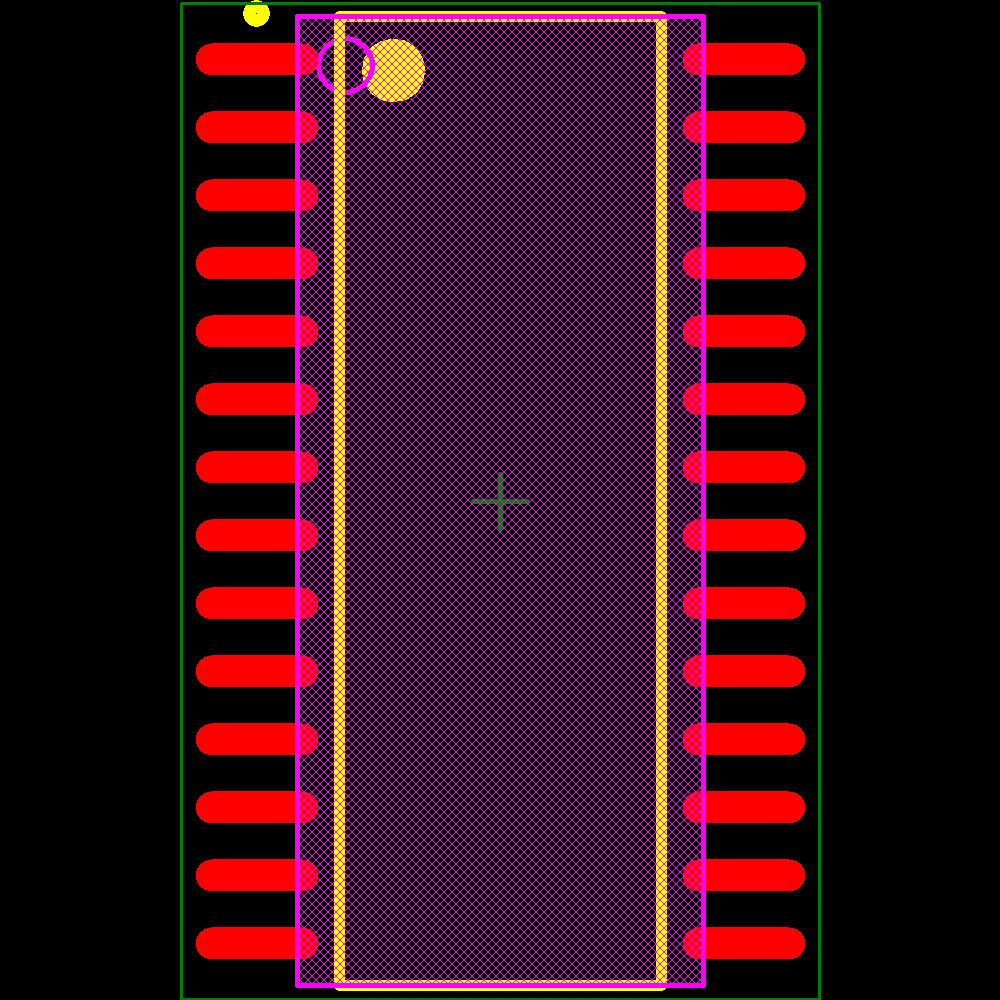

Images
