Integrated Circuits (ICs)  >  Embedded Processors and Controllers  >  Microcontrollers

Microchip - DSPIC30F2011-20E/P

DSPIC30F2011-20E/P - Microchip

16-bit MCU/DSC, 12 KB, 1024 Bytes, 120 MHz, 2.5 to 5.5V, PDIP-18, RoHS

 Datasheets

Technical Details

Projected EOL Date 2034-04-05
Case/Package PDIP
Core Architecture dsPIC
Country of Assembly Thailand
Country of Fabrication United States of America
Country of Origin Thailand
Data Bus Width 16b
Export Control Classification Number (ECCN) Code 3A991.a.2
Frequency 20MHz
Harmonized Tariff Schedule (HTS) Code 8542.31.0020
Interface I2C, SPI, UART, USART
Introduction Date 2005-04-05
Lead Free Lead Free
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Frequency 20MHz
Max Operating Temperature 125°C
Max Supply Voltage 5.5V
Memory Size 12kB
Memory Type FLASH
Min Operating Temperature -40°C
Min Supply Voltage 3V
Mount Through Hole
Number of Pins 18
Number of Programmable I/O 12
Number of Timers/Counters 3
Radiation Hardening No
RAM Size 1kB
RoHS Compliant
Watchdog Timer Yes

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Microchip DSPIC30F2011-20E/P | Microchip

Microchip

Datasheets

 DigiKey
 TME
 Farnell

Lifecycle Status Indicator

   Production

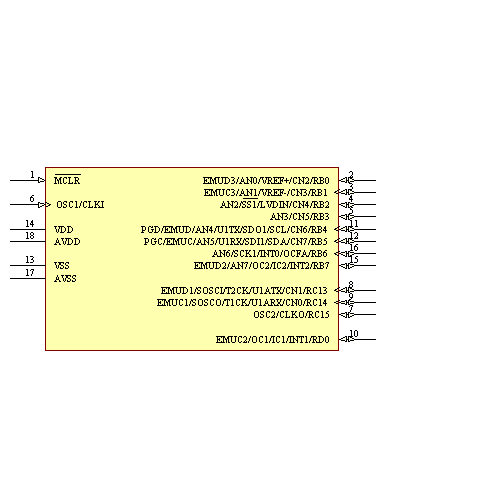

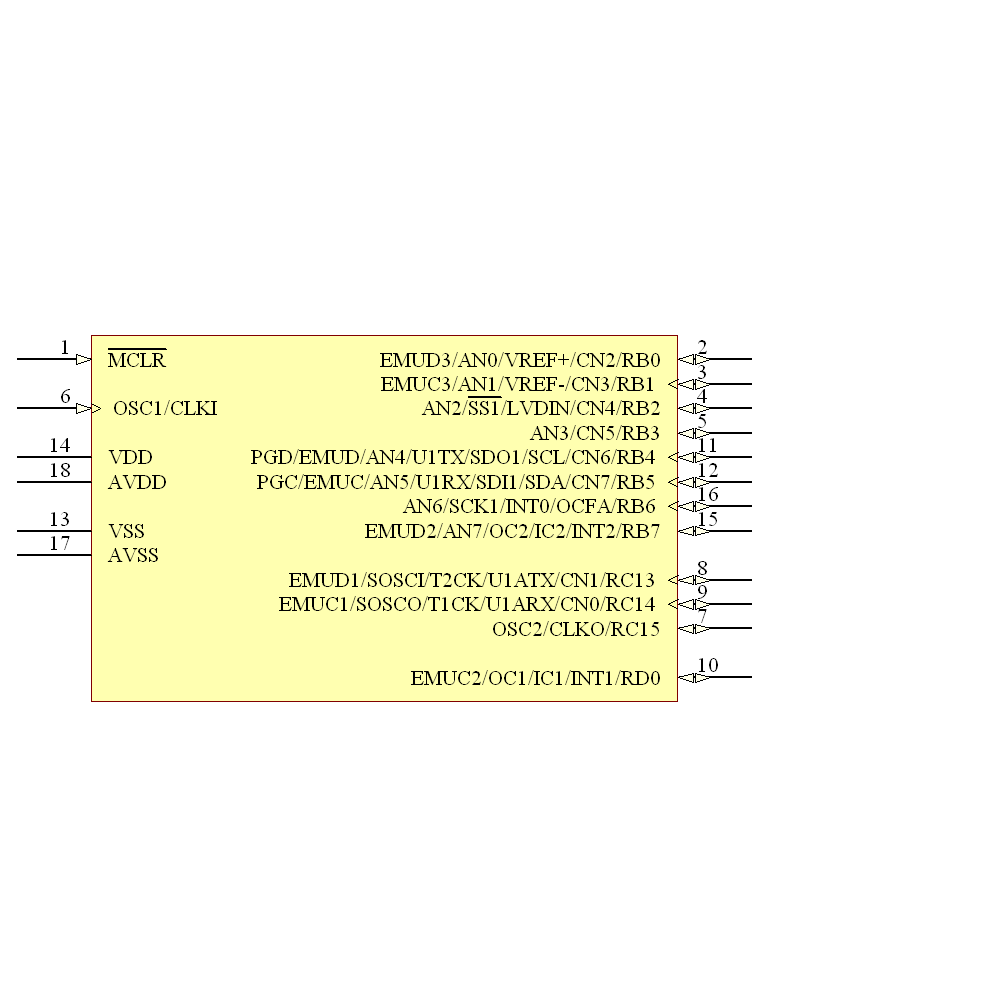

Symbol

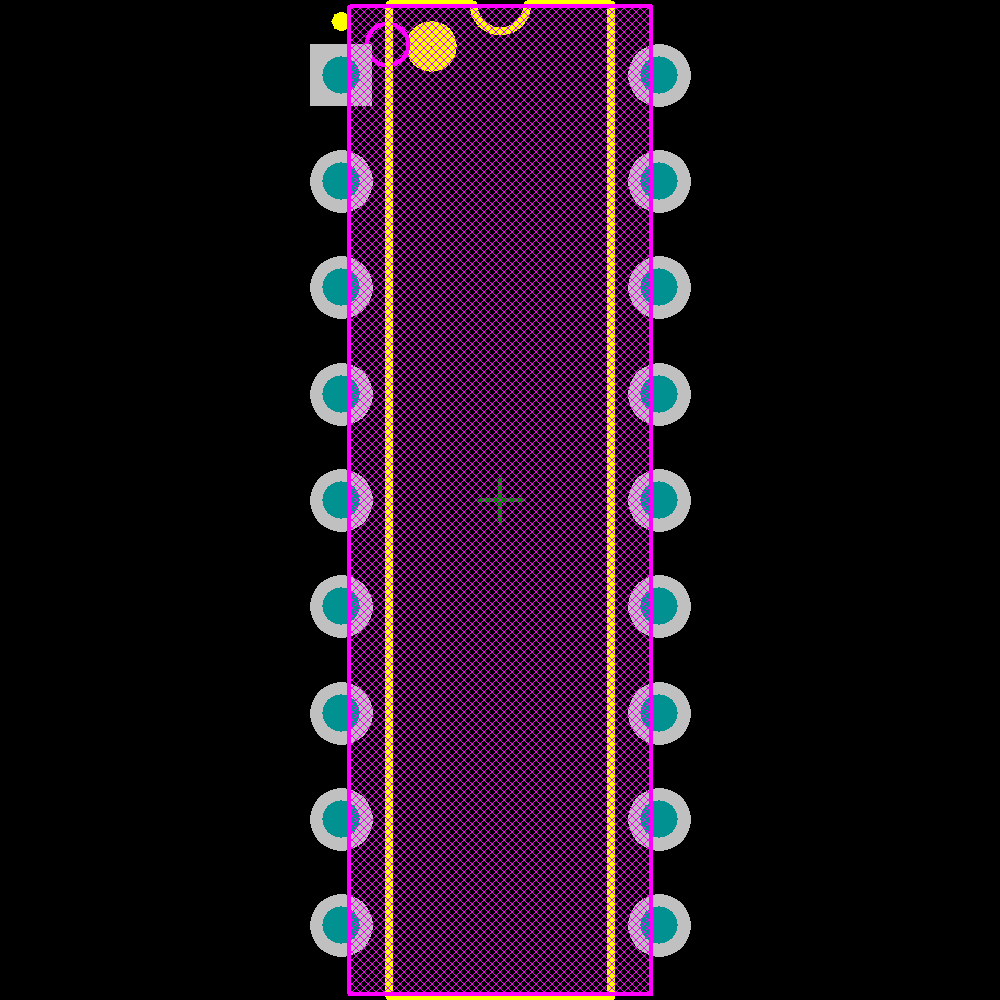

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
DSPIC30F2011-20I/P
Production
Microchip
DSPIC30F2011-20E/SO
Production
Microchip
DSPIC30F2011T-20I/ML
Unknown
Microchip
DSPIC30F2011T-20I/SO
Unknown
Microchip
DSPIC30F2011-20E/ML
Unknown
Microchip
DSPIC30F2011T-20E/SO
Production
Microchip
DSPIC30F2011T-20E/ML
Unknown
Microchip
DSPIC30F2011-20I/ML
Production
Microchip
DSPIC30F2011-20I/SO
Production
Microchip
DSPIC30F2011-30I/P
Production

See more alternatives See less alternatives
