DSPIC30F2011-20E/SO - Microchip

16-bit MCU/DSC, 12 KB, 1024 Bytes, 120 MHz, 2.5 to 5.5V, SOIC-18, RoHS

Projected EOL Date	2034-04-05
Address Bus Width	16b
Core Architecture	dsPIC
Country of Assembly	Thailand
Country of Fabrication	United States of America
Country of Origin	Thailand
Data Bus Width	16b
Export Control Classification Number (ECCN) Code	3A991.a.2
Frequency	20MHz
Harmonized Tariff Schedule (HTS) Code	8542.31.0020
Interface	I2C, SPI, UART, USART
Introduction Date	2005-04-05
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	20MHz
Max Operating Temperature	125°C
Max Supply Voltage	5.5V
Memory Size	12kB
Memory Type	FLASH
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Mount	Surface Mount
Nominal Supply Current	37mA
Number of ADC Channels	8
Number of Pins	18
Number of Programmable I/O	12
Number of Timers/Counters	3
Packaging	Bulk
Peripherals	I2C, PWM
Radiation Hardening	No
RAM Size	1kB
RoHS	Compliant
Watchdog Timer	Yes

RoHS : Unconfirmed

Radiation Hardening : No

Microchip DSPIC30F2011-20E/SO | Microchip

Microchip

Production

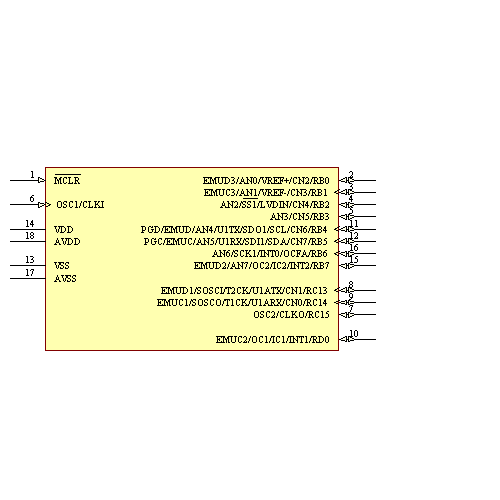

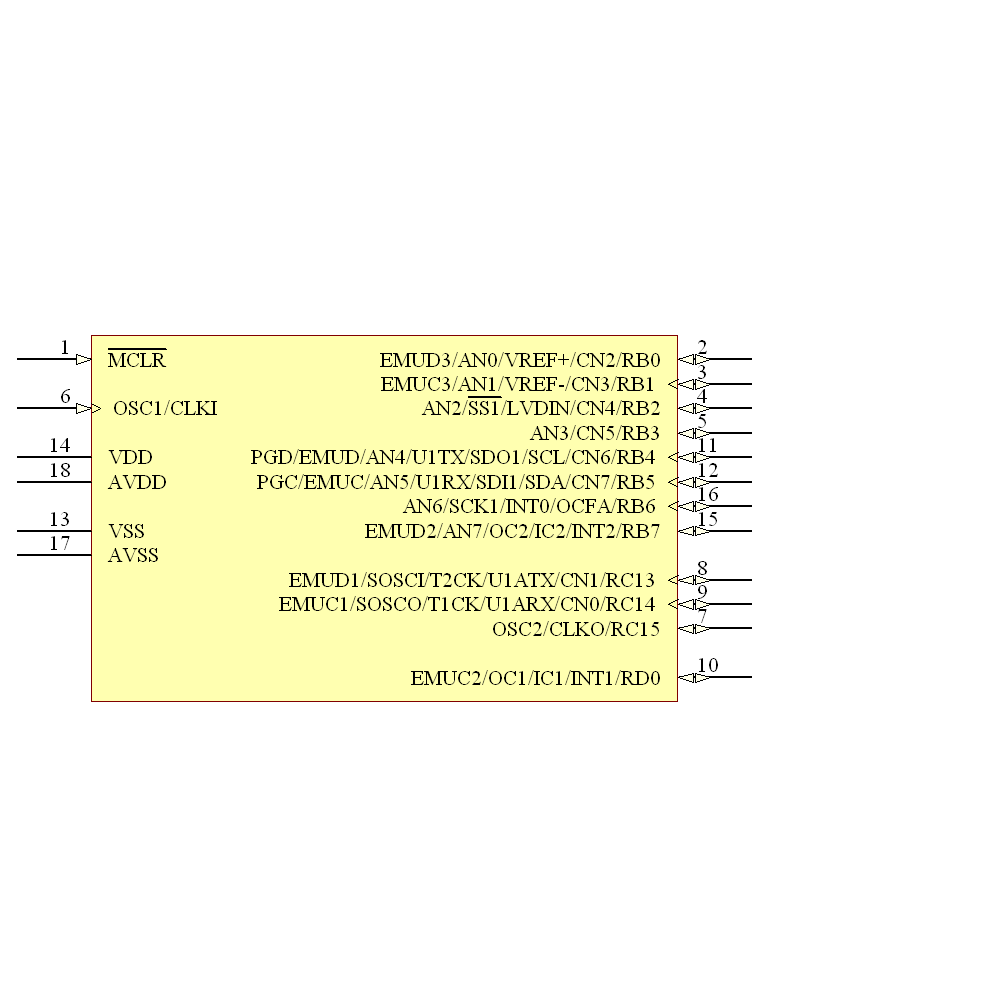

Symbol

‹ ›

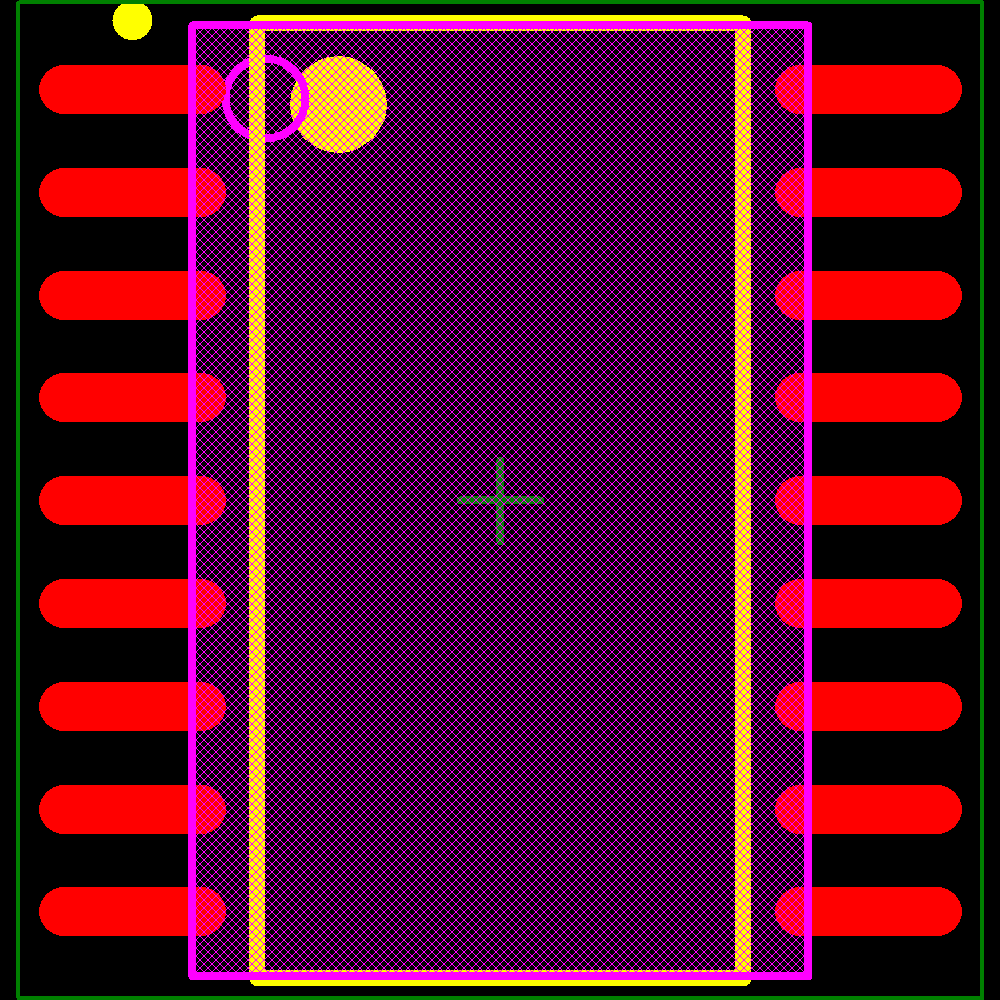

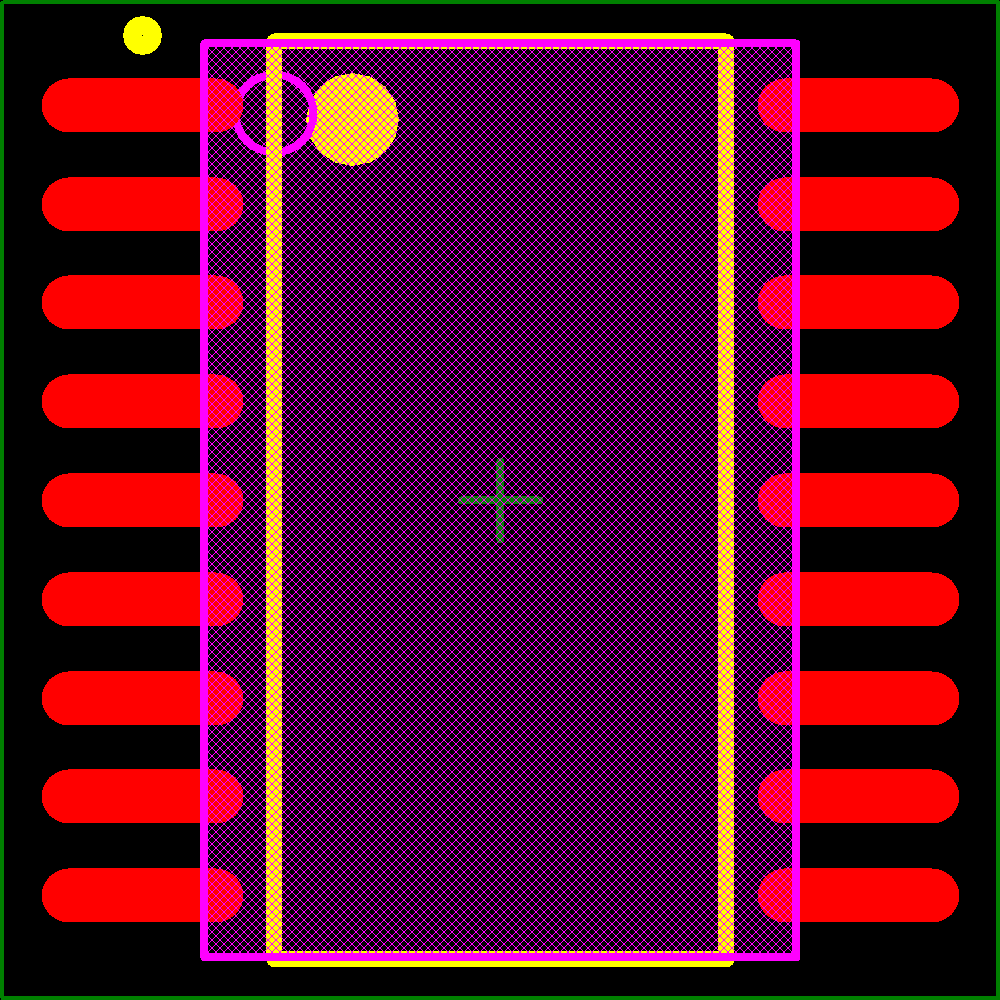

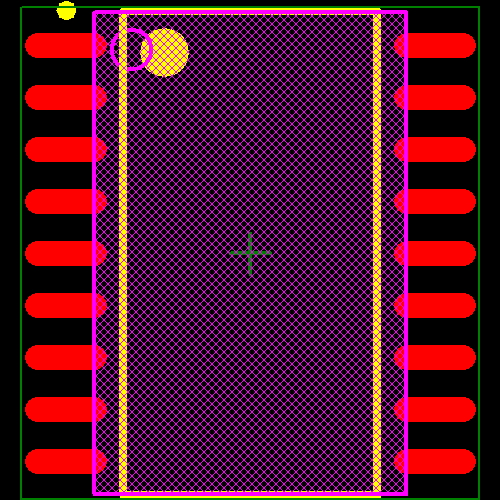

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Microchip	DSPIC30F2011T-20I/SO	Unknown
Microchip	DSPIC30F2011T-20E/SO	Production
Microchip	DSPIC30F2011-20I/SO	Production
Microchip	DSPIC30F2011-20E/P	Production
Microchip	DSPIC30F2011T-20I/ML	Unknown
Microchip	DSPIC30F2011-20I/P	Production
Microchip	DSPIC30F2011-20E/ML	Unknown
Microchip	DSPIC30F2011T-20E/ML	Unknown
Microchip	DSPIC30F2011-20I/ML	Production
Microchip	DSPIC30F3012-30I/SO	Production
