DSPIC30F2011-20I/ML - Microchip
16-bit MCU/DSC, 12 KB, 1024 Bytes, 120 MHz, 2.5 to 5.5V, QFN-28, RoHS
Technical Details
| Projected EOL Date | 2034-04-05 |
| Core Architecture | dsPIC |
| Country of Assembly | Malaysia, Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Malaysia, Thailand |
| Data Bus Width | 16b |
| Density | 96kb |
| Export Control Classification Number (ECCN) Code | 3A991.a.2 |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.0020 |
| Interface | I2C, SPI, UART, USART |
| Introduction Date | 2005-04-05 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 12kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of I/Os | 12 |
| Number of Pins | 28 |
| Number of Programmable I/O | 12 |
| Number of Timers/Counters | 3 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RAM Size | 1kB |
| REACH SVHC | No |
| RoHS | Compliant |
| Watchdog Timer | Yes |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

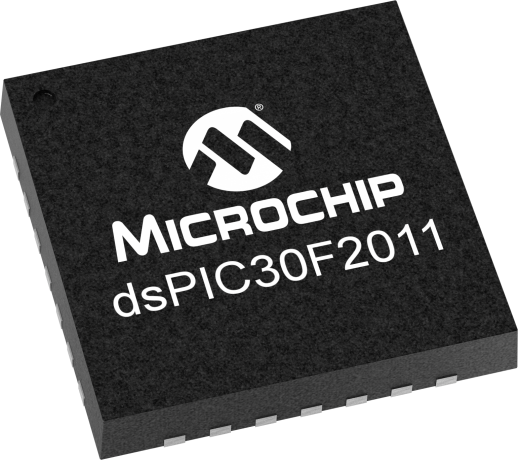

Images
Microchip
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Unknown | ||
| Microchip | Unknown | ||
| Microchip | Unknown | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Unknown | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Unknown |
