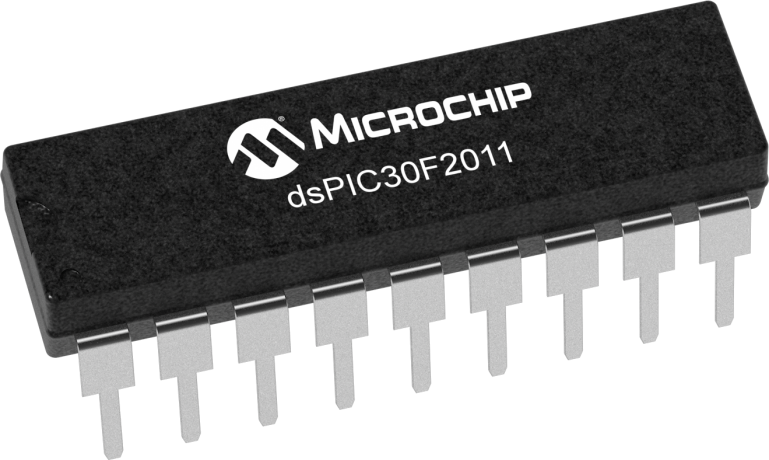

DSPIC30F2011-30I/P - Microchip
MCU 16-bit dsPIC30 dsPIC RISC 12KB Flash 3.3V/5V 18-Pin PDIP Tube
Technical Details
| Projected EOL Date | 2034-04-05 |
| Case/Package | PDIP |
| Core Architecture | dsPIC |
| Country of Assembly | Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Thailand |
| Data Bus Width | 16b |
| Density | 96kb |
| Export Control Classification Number (ECCN) Code | 3A991.a.2 |
| Frequency | 30MHz |
| Height | 4.953mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.0020 |
| Interface | I2C, SPI, UART, USART |
| Introduction Date | 2005-04-05 |
| Lead Free | Lead Free |
| Length | 23.37mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Frequency | 30MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 12kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Through Hole |
| Number of ADC Channels | 8 |
| Number of Bits | 16 |
| Number of I2C Channels | 1 |
| Number of I/Os | 12 |
| Number of Pins | 18 |
| Number of Programmable I/O | 12 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Operating Supply Voltage | 5V |
| Oscillator Type | Internal |
| Packaging | Bulk |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 1kB |
| REACH SVHC | No |
| RoHS | Compliant |
| Watchdog Timer | Yes |
| Width | 7.112mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
