DSPIC30F2012-20E/SO - Microchip

16-bit MCU/DSC, 12 KB, 1024 Bytes, 120 MHz, 2.5 to 5.5V, SOIC-28, RoHS

Projected EOL Date	2034-04-05
Core Architecture	dsPIC
Country of Assembly	Thailand
Country of Fabrication	United States of America
Country of Origin	Thailand
Data Bus Width	16b
Export Control Classification Number (ECCN) Code	3A991.a.2
Frequency	20MHz
Harmonized Tariff Schedule (HTS) Code	8542.31.0020
Interface	I2C, SPI, UART, USART
Introduction Date	2005-04-05
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	20MHz
Max Operating Temperature	125°C
Max Supply Voltage	5.5V
Memory Size	12kB
Memory Type	FLASH
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Mount	Surface Mount
Number of Pins	28
Number of Programmable I/O	12
Number of Timers/Counters	3
Radiation Hardening	No
RAM Size	1kB
RoHS	Compliant
Watchdog Timer	Yes

RoHS : Unconfirmed

Radiation Hardening : No

Microchip DSPIC30F2012-20E/SO | Microchip

Microchip

Production

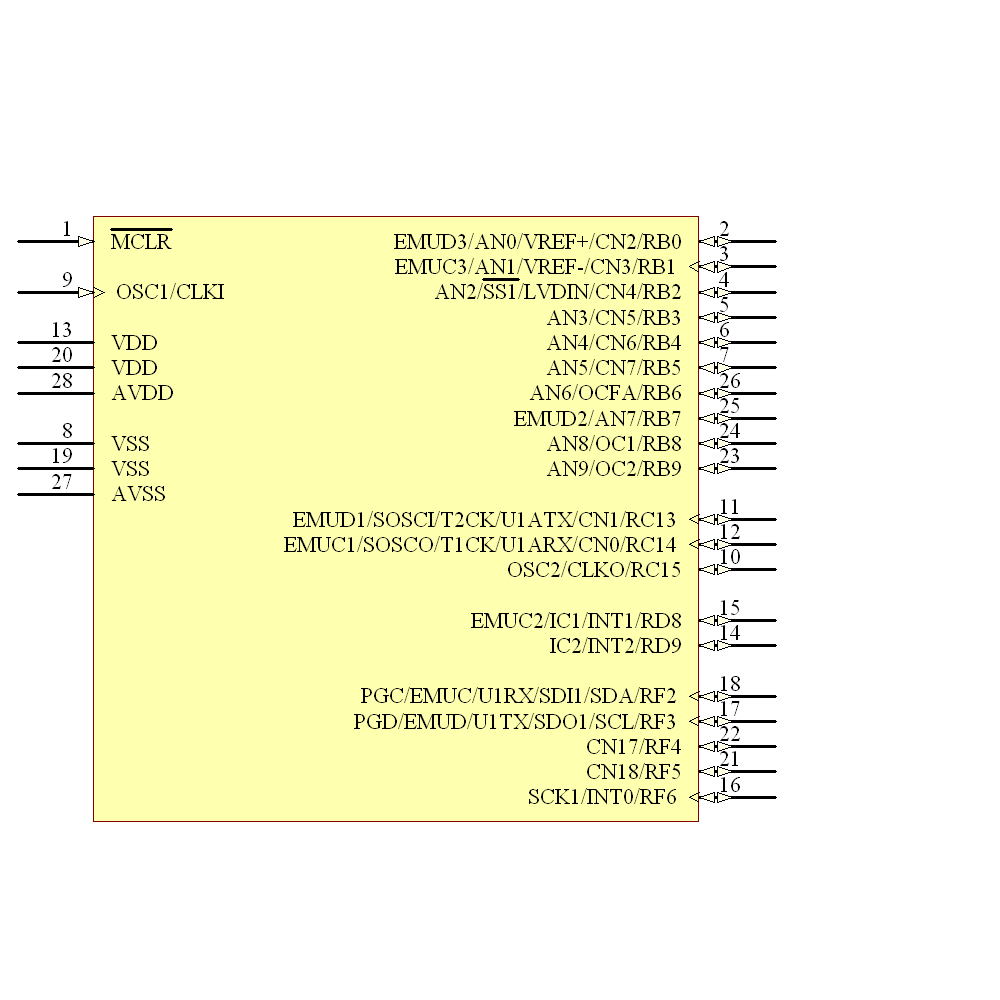

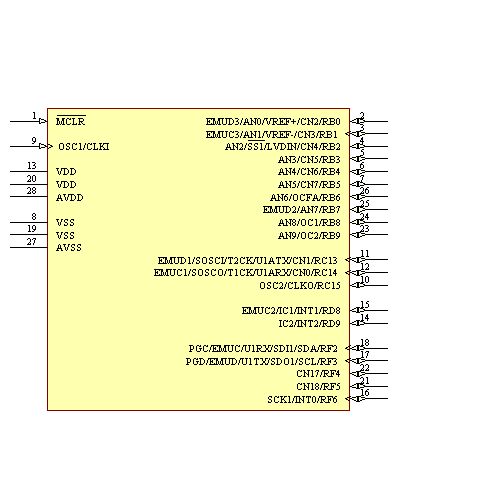

Symbol

‹ ›

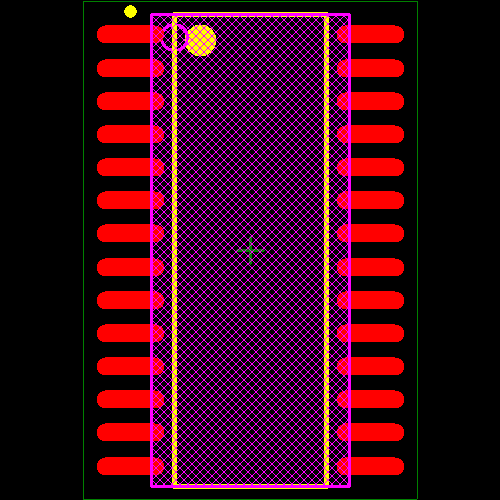

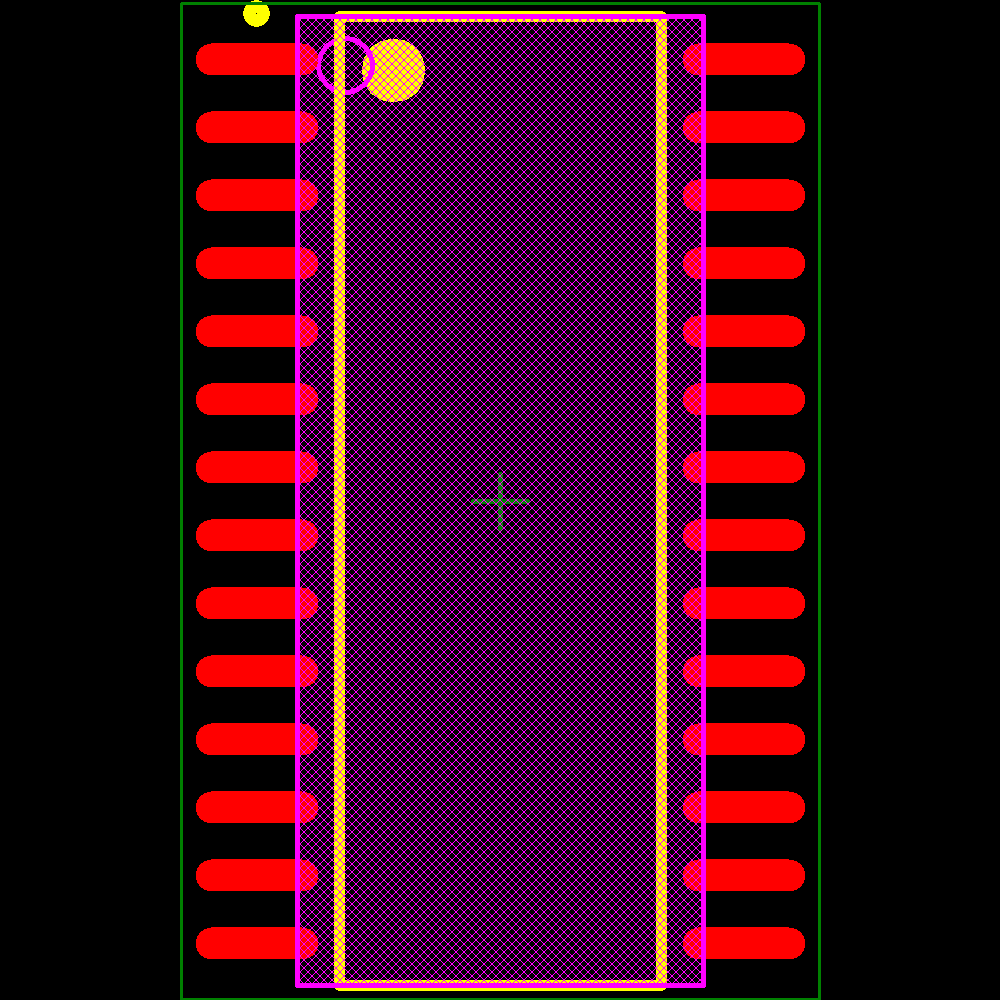

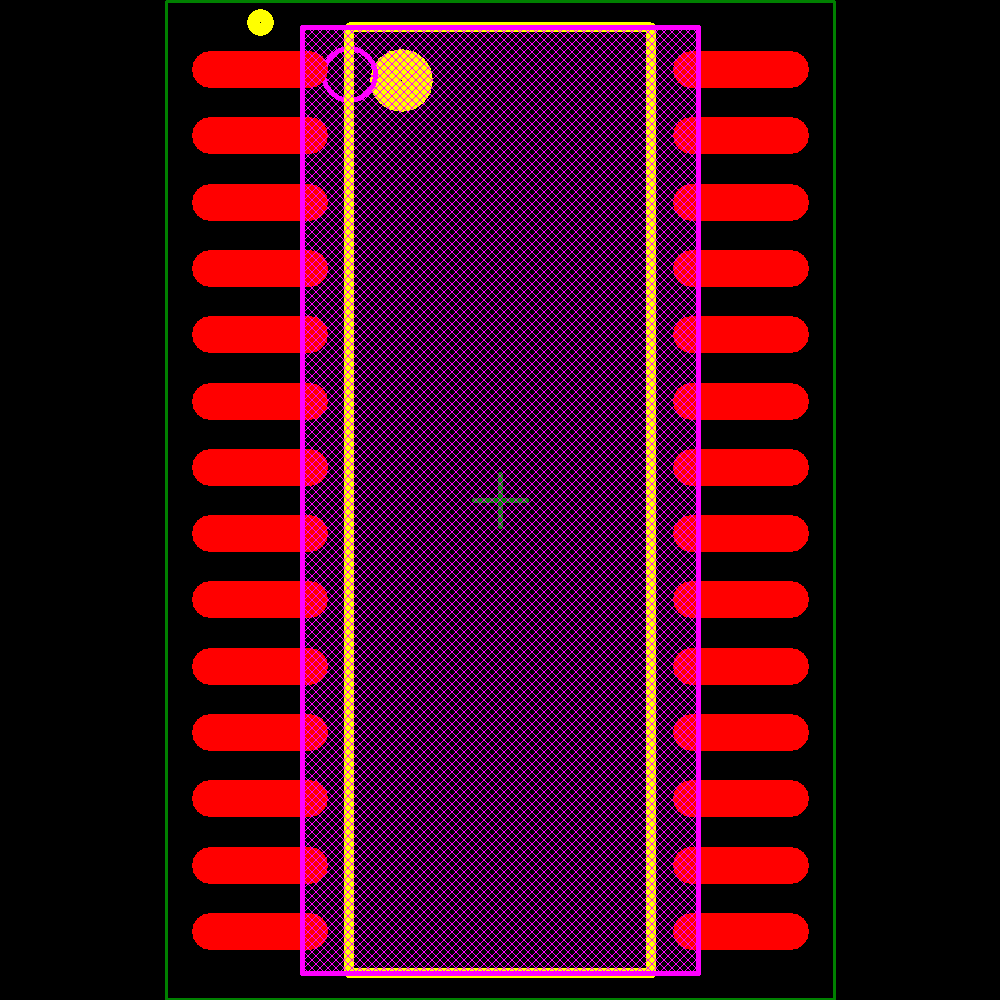

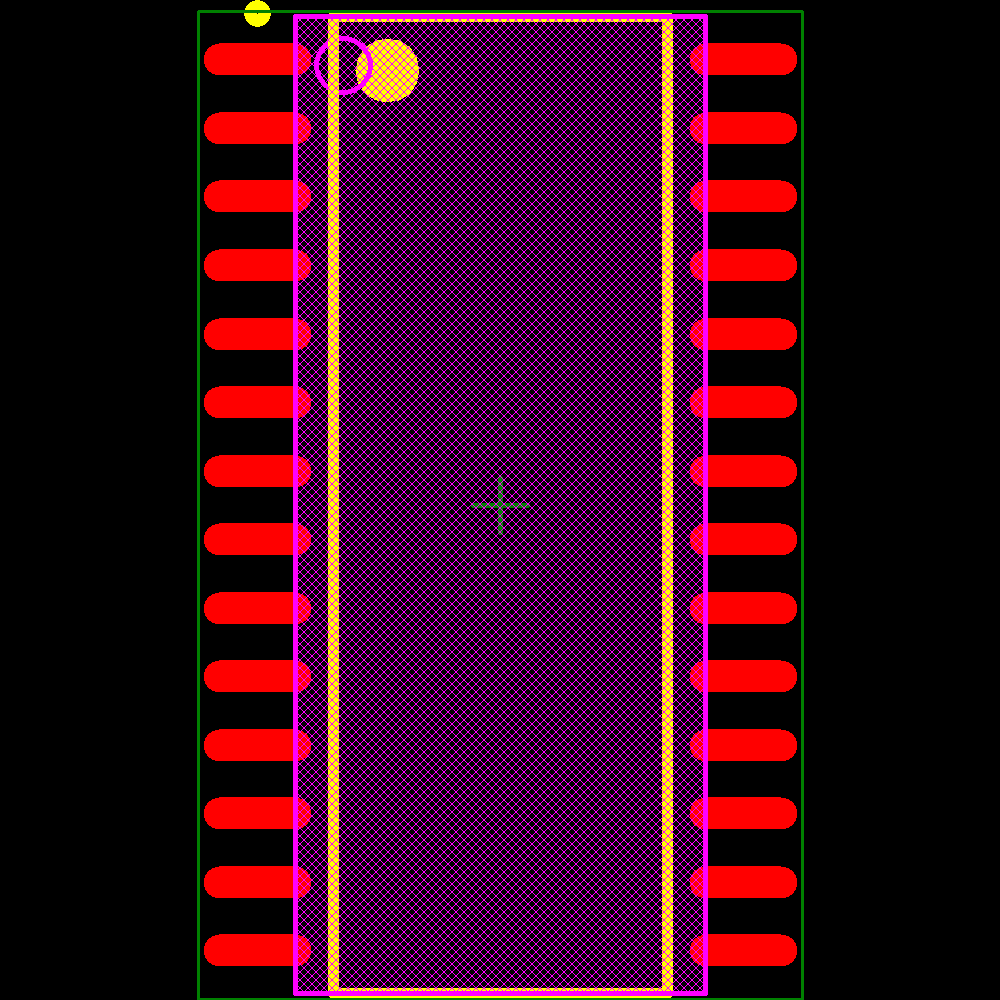

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Microchip	DSPIC30F2012-20I/SO	Production
Microchip	DSPIC30F2012T-20E/SO	Unknown
Microchip	DSPIC30F2012T-20I/SO	Unknown
Microchip	DSPIC30F2012T-20I/ML	Unknown
Microchip	DSPIC30F2012-20E/ML	Production
Microchip	DSPIC30F2012-20I/ML	Production
Microchip	DSPIC30F2012-20E/SP	Unknown
Microchip	DSPIC30F2012-20I/SP	Production
Microchip	DSPIC30F2012T-20E/ML	Unknown
