Integrated Circuits (ICs)  >  Embedded Processors and Controllers  >  Microcontrollers

Microchip - DSPIC30F2012-20I/SO

DSPIC30F2012-20I/SO - Microchip

MCU 16-bit dsPIC30 dsPIC RISC 12KB Flash 3.3V/5V 28-Pin SOIC W Tube

 Datasheets

Technical Details

Projected EOL Date 2034-04-05
Case/Package SOIC
Core Architecture dsPIC
Country of Assembly Thailand
Country of Fabrication United States of America
Country of Origin Thailand
Data Bus Width 16b
Density 96kb
Export Control Classification Number (ECCN) Code 3A991.a.2
Height 2.35mm
Harmonized Tariff Schedule (HTS) Code 8542.31.0020
Interface I2C, SPI, UART, USART
Introduction Date 2005-04-05
Lead Free Lead Free
Length 17.9mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Frequency 20MHz
Max Operating Temperature 85°C
Max Supply Voltage 5.5V
Memory Size 12kB
Memory Type FLASH
Min Operating Temperature -40°C
Min Supply Voltage 2.5V
Mount Surface Mount
Number of ADC Channels 10
Number of I2C Channels 1
Number of I/Os 20
Number of Pins 28
Number of Programmable I/O 12
Number of SPI Channels 1
Number of Timers/Counters 3
Number of UART Channels 1
Operating Supply Voltage 3.3V
Oscillator Type Internal
Packaging Bulk
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening No
RAM Size 1kB
REACH SVHC No
RoHS Compliant
Schedule B 8542310000
Watchdog Timer Yes
Width 7.5mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Microchip DSPIC30F2012-20I/SO | Microchip

Microchip

Datasheets

 Avnet
 Avnet
 DigiKey

Lifecycle Status Indicator

   Production

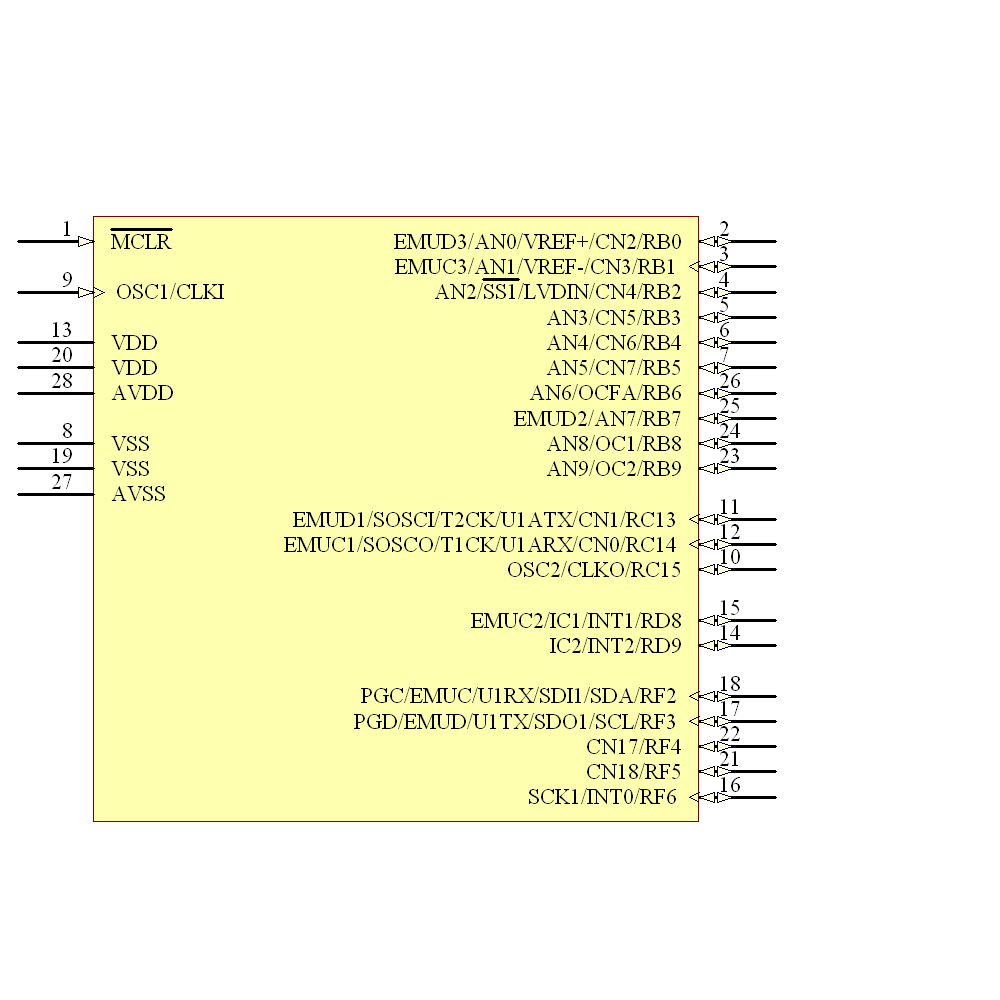

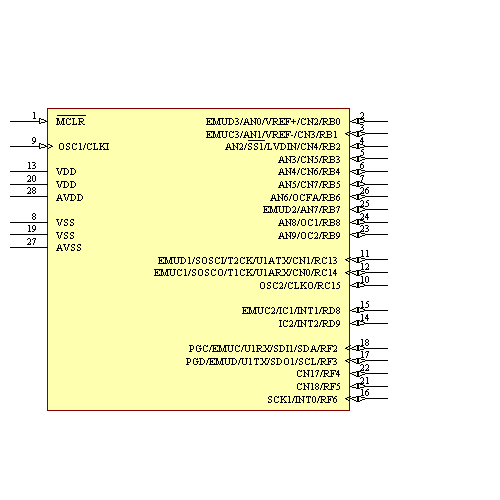

Symbol

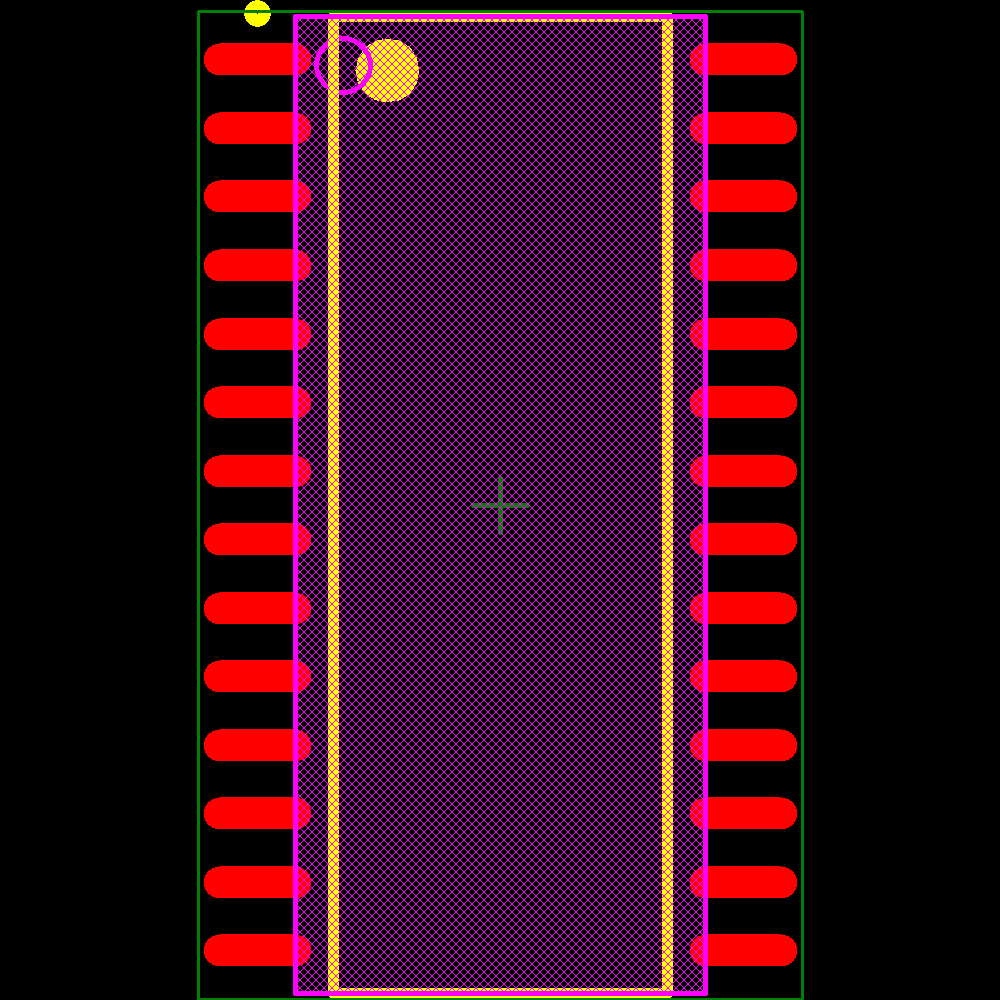

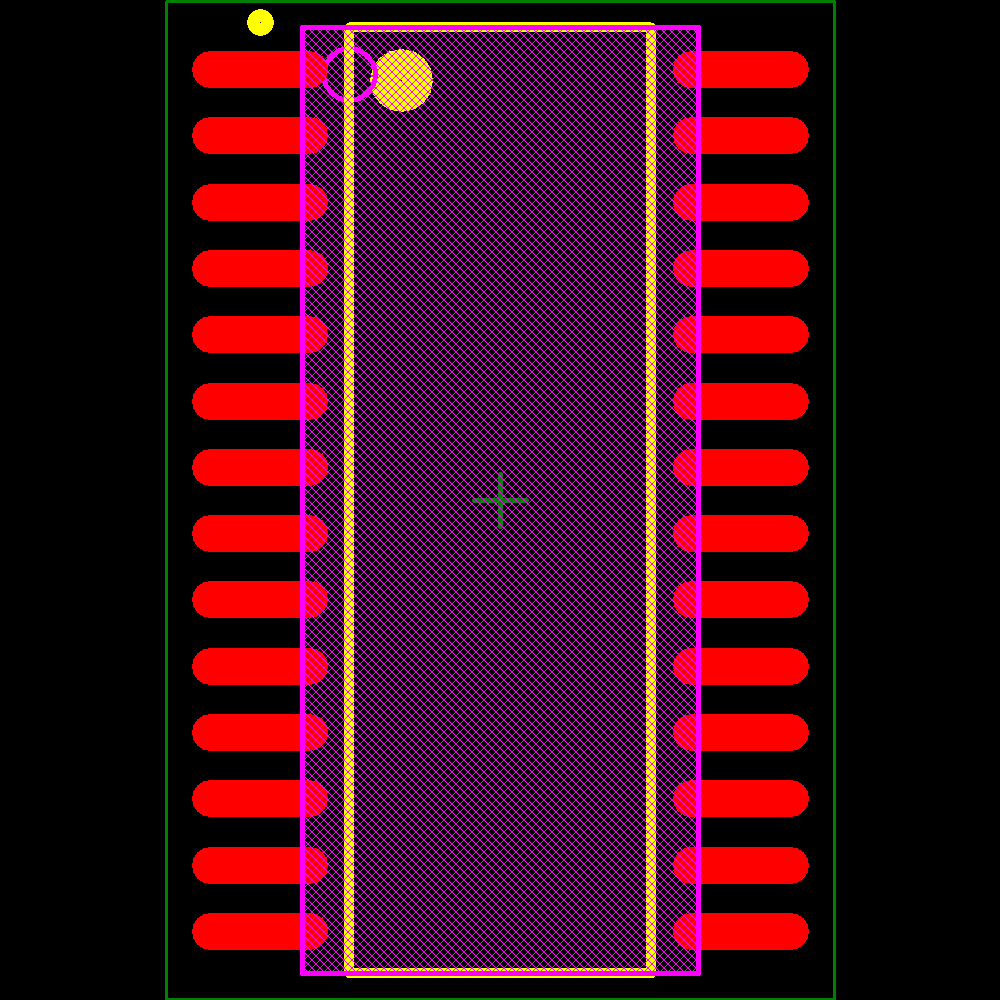

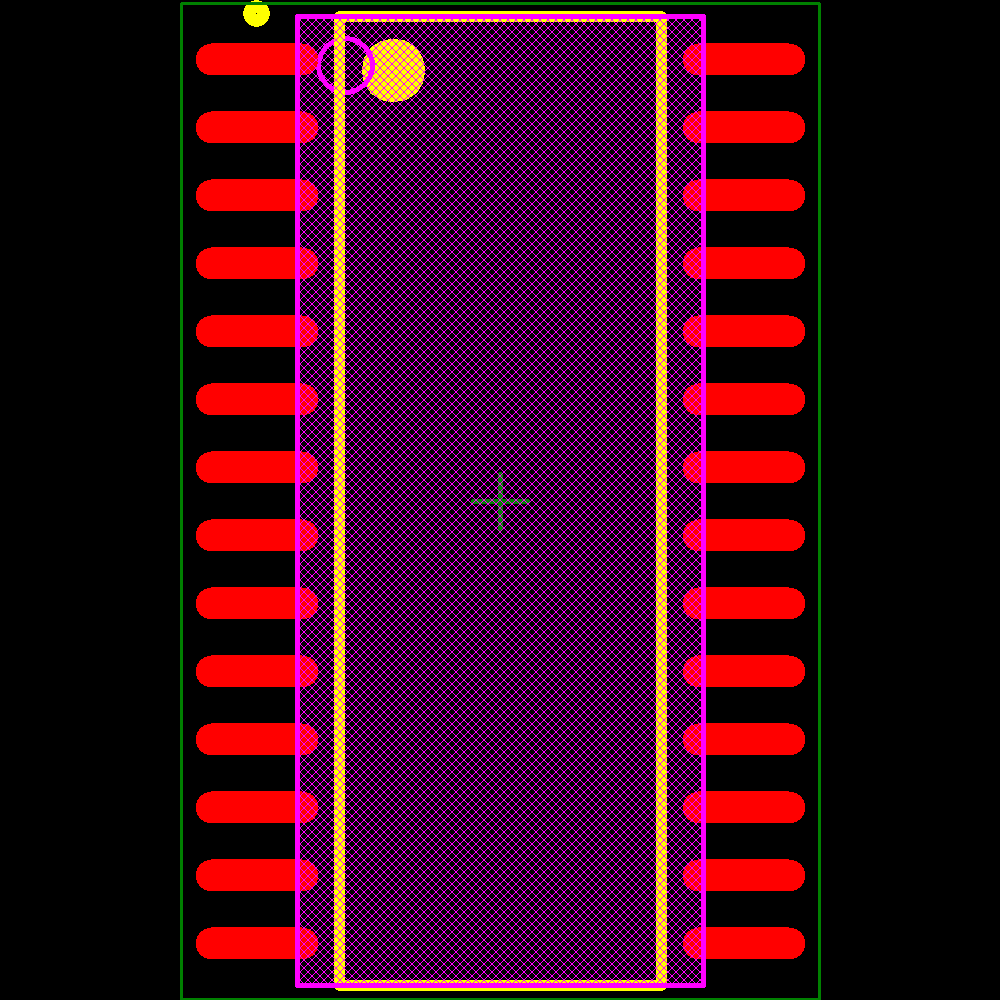

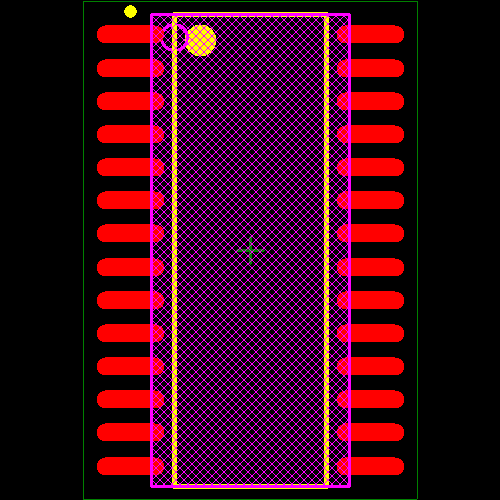

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
DSPIC30F2012-20E/SO
Production
Microchip
DSPIC30F2012T-20E/SO
Unknown
Microchip
DSPIC30F2012T-20I/SO
Unknown
Microchip
DSPIC30F2012T-20I/ML
Unknown
Microchip
DSPIC30F2012-20E/ML
Production
Microchip
DSPIC30F2012-20I/ML
Production
Microchip
DSPIC30F2012-20E/SP
Unknown
Microchip
DSPIC30F2012-20I/SP
Production
Microchip
DSPIC30F2012T-20E/ML
Unknown
Microchip
DSPIC30F3010T-20I/SO
Production

See more alternatives See less alternatives
