Integrated Circuits (ICs)  >  Embedded Processors and Controllers  >  Microcontrollers

Microchip - DSPIC30F3010-30I/SP

DSPIC30F3010-30I/SP - Microchip

16-Bit MCU/DSP 28LD 30MIPS 24 KB Flash, SPDIP | Microchip Technology Inc. DSPIC30F3010-30I/SP

 Datasheets

Technical Details

Projected EOL Date 2034-01-14
Case/Package DIP
Core Architecture dsPIC
Country of Assembly Thailand
Country of Fabrication United States of America
Country of Origin Thailand
Data Bus Width 16b
Density 192kb
Export Control Classification Number (ECCN) Code 3A991.a.2
Frequency 30MHz
Height 3.81mm
Harmonized Tariff Schedule (HTS) Code 8542.31.0020
Interface I2C, SPI, UART, USART
Introduction Date 2005-01-14
Lead Free Lead Free
Length 35.56mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Frequency 30MHz
Max Operating Temperature 85°C
Max Supply Voltage 5.5V
Memory Size 24kB
Memory Type FLASH
Min Operating Temperature -40°C
Min Supply Voltage 2.5V
Mount Through Hole
Number of ADC Channels 6
Number of I2C Channels 1
Number of I/Os 20
Number of Pins 28
Number of Programmable I/O 20
Number of PWM Channels 6
Number of SPI Channels 1
Number of Timers/Counters 5
Number of UART Channels 1
Oscillator Type Internal
Packaging Bulk
Peripherals Brown-out Detect/Reset, I2C, POR, PWM, WDT
Radiation Hardening No
RAM Size 1kB
REACH SVHC No
RoHS Compliant
Schedule B 8542310000
Watchdog Timer Yes
Width 7.493mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

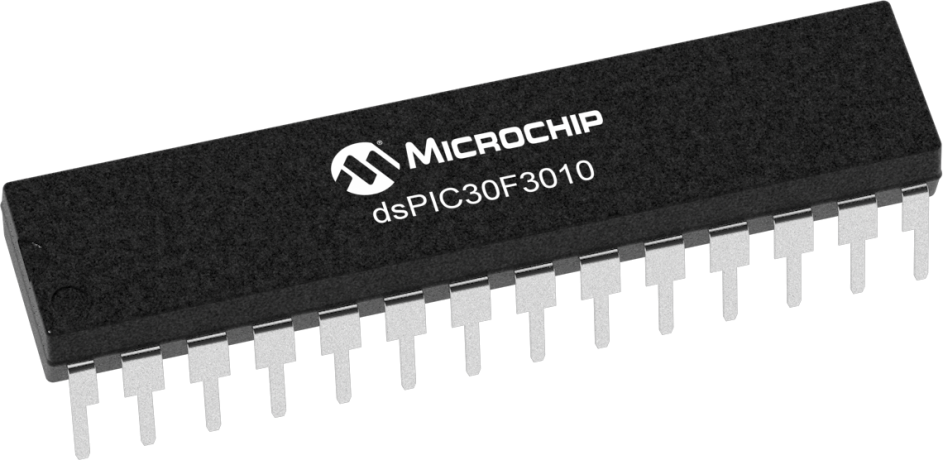

Images

Microchip DSPIC30F3010-30I/SP | Farnell

Farnell

Datasheets

 Farnell
 DigiKey
 Future Electronics

Lifecycle Status Indicator

   Production

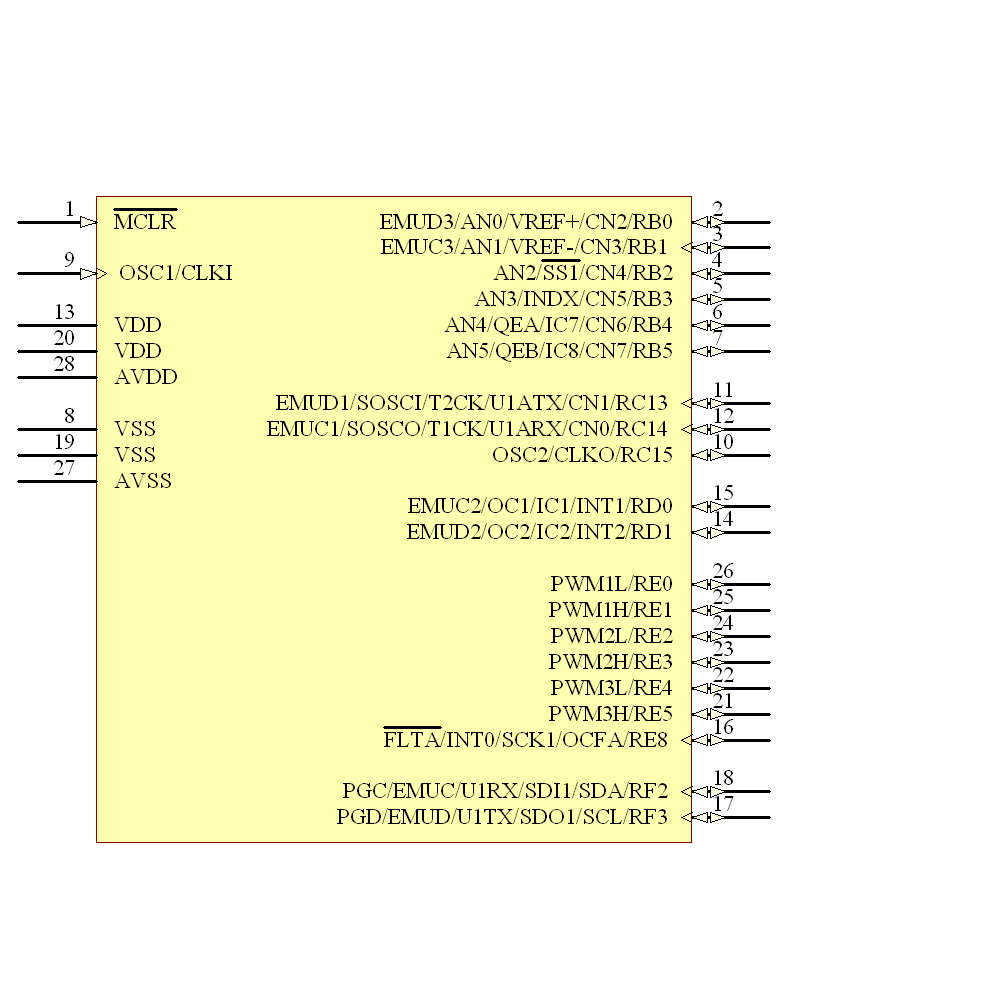

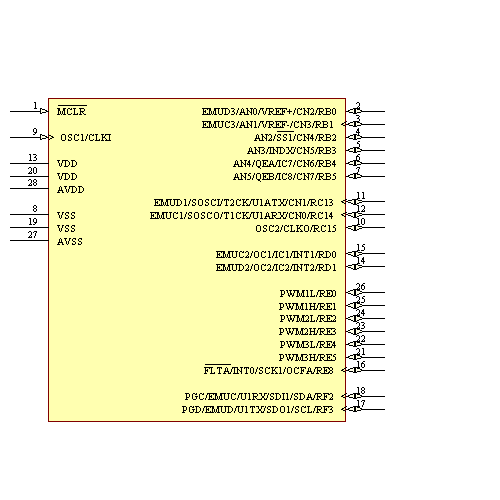

Symbol

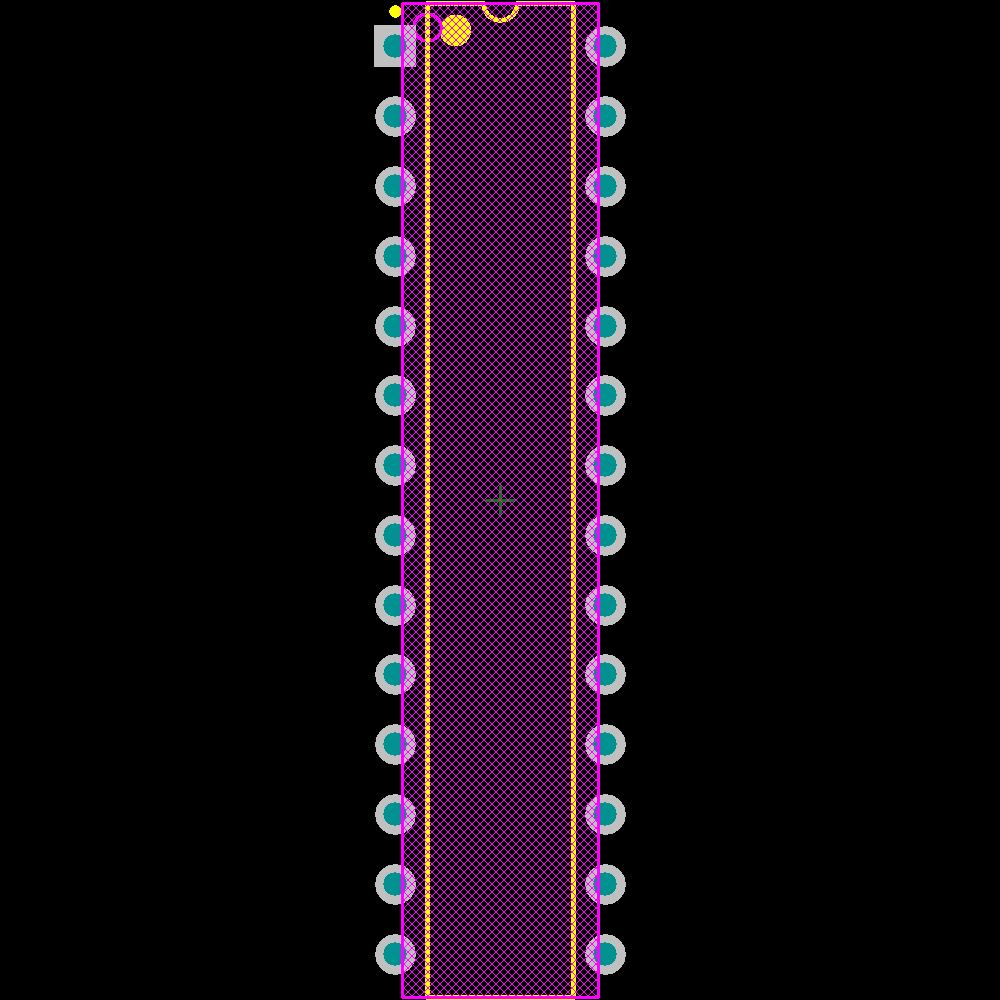

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
DSPIC30F3010-30I/SO
Production
Microchip
DSPIC30F3010T-30I/SO
Production
Microchip
DSPIC30F3010T-30I/ML
Production
Microchip
DSPIC30F3010-30I/ML
Production
Microchip
DSPIC30F2010-30I/SPG
Unknown
Microchip
DSPIC30F2012-20I/SP
Production
Microchip
DSPIC30F2012-30I/SP
Production
Microchip
DSPIC30F3013-30I/SP
Production
Microchip
DSPIC30F4012-20I/SP
Production
Microchip
DSPIC30F4012-30I/SP
Production

See more alternatives See less alternatives
