DSPIC30F3012-20E/SO - Microchip

16-bit MCU/DSC, 24 KB, 2048 Bytes, 120 MHz, 2.5 to 5.5V, SOIC-18, RoHS

Projected EOL Date	2034-01-21
Case/Package	SOIC
Core Architecture	dsPIC
Country of Assembly	Thailand
Country of Fabrication	United States of America
Country of Origin	Thailand
Data Bus Width	16b
Export Control Classification Number (ECCN) Code	3A991.a.2
Frequency	20MHz
Height	2.35mm
Harmonized Tariff Schedule (HTS) Code	8542.31.0020
Interface	I2C, SPI, UART, USART
Introduction Date	2005-01-21
Lead Free	Lead Free
Length	17.9mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	20MHz
Max Operating Temperature	125°C
Max Supply Voltage	5.5V
Memory Size	24kB
Memory Type	FLASH
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Mount	Surface Mount
Number of A/D Converters	1
Number of ADC Channels	8
Number of Bits	16
Number of I2C Channels	1
Number of I/Os	12
Number of Pins	18
Number of Programmable I/O	12
Number of PWM Channels	2
Number of SPI Channels	1
Number of Timers/Counters	3
Number of UART Channels	1
Peripherals	I2C, PWM
Radiation Hardening	No
RAM Size	2kB
RoHS	Compliant
Schedule B	8542310000, 8542310000\|8542310000\|8542310000\|8542310000\|8542310000
Watchdog Timer	Yes
Width	7.5mm

RoHS : Unconfirmed

Radiation Hardening : No

Microchip DSPIC30F3012-20E/SO | Microchip

Microchip

Production

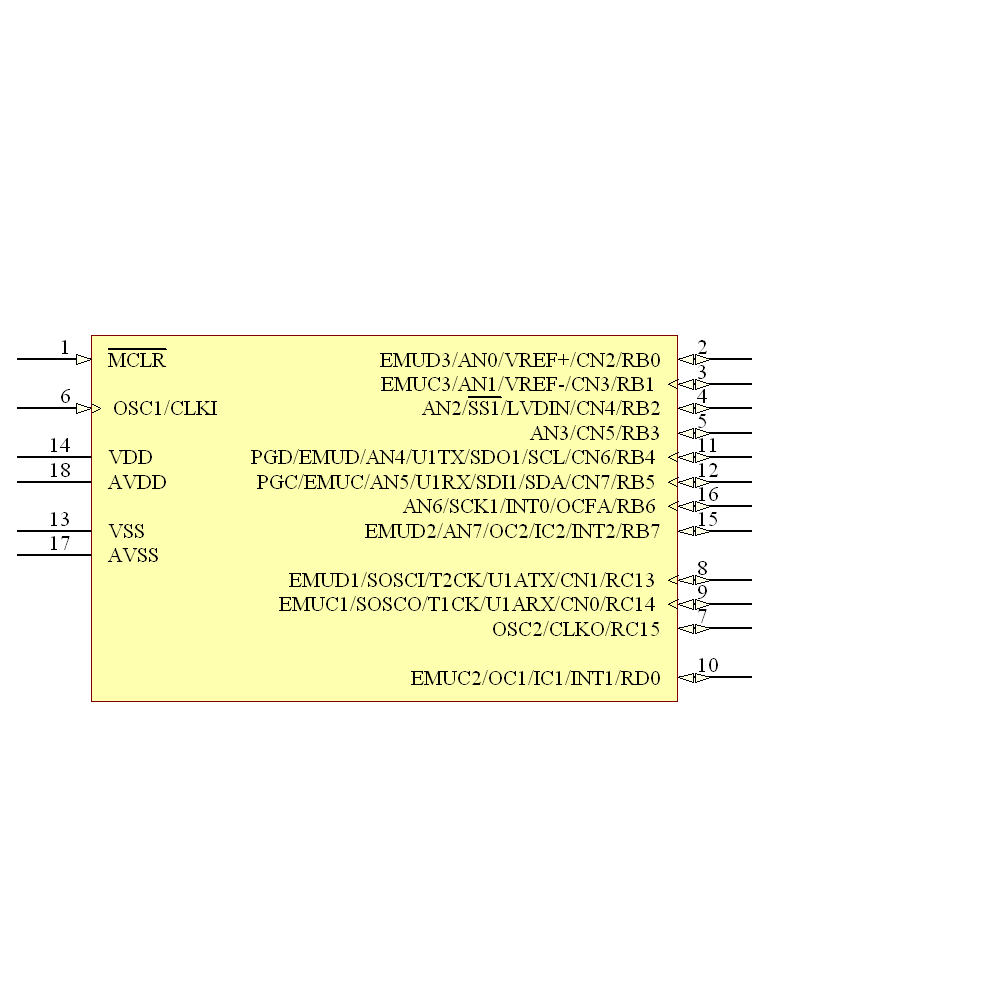

Symbol

‹ ›

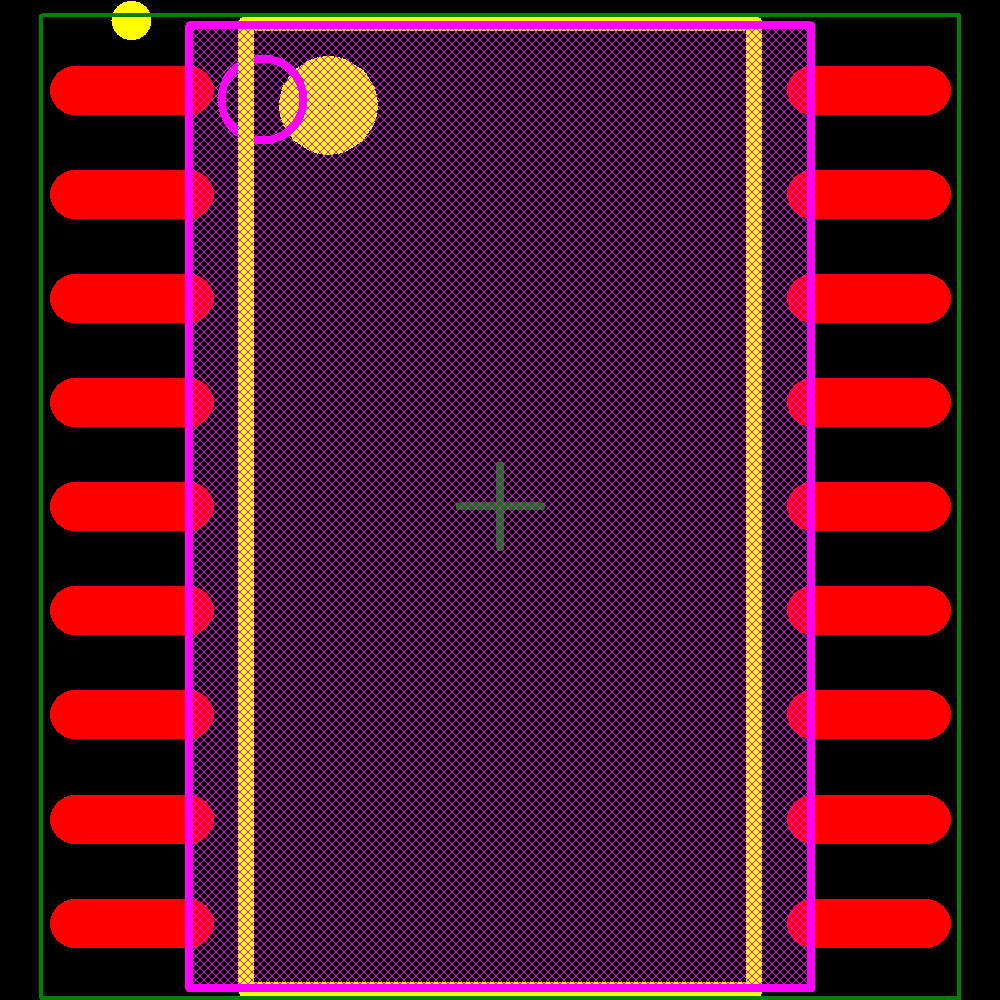

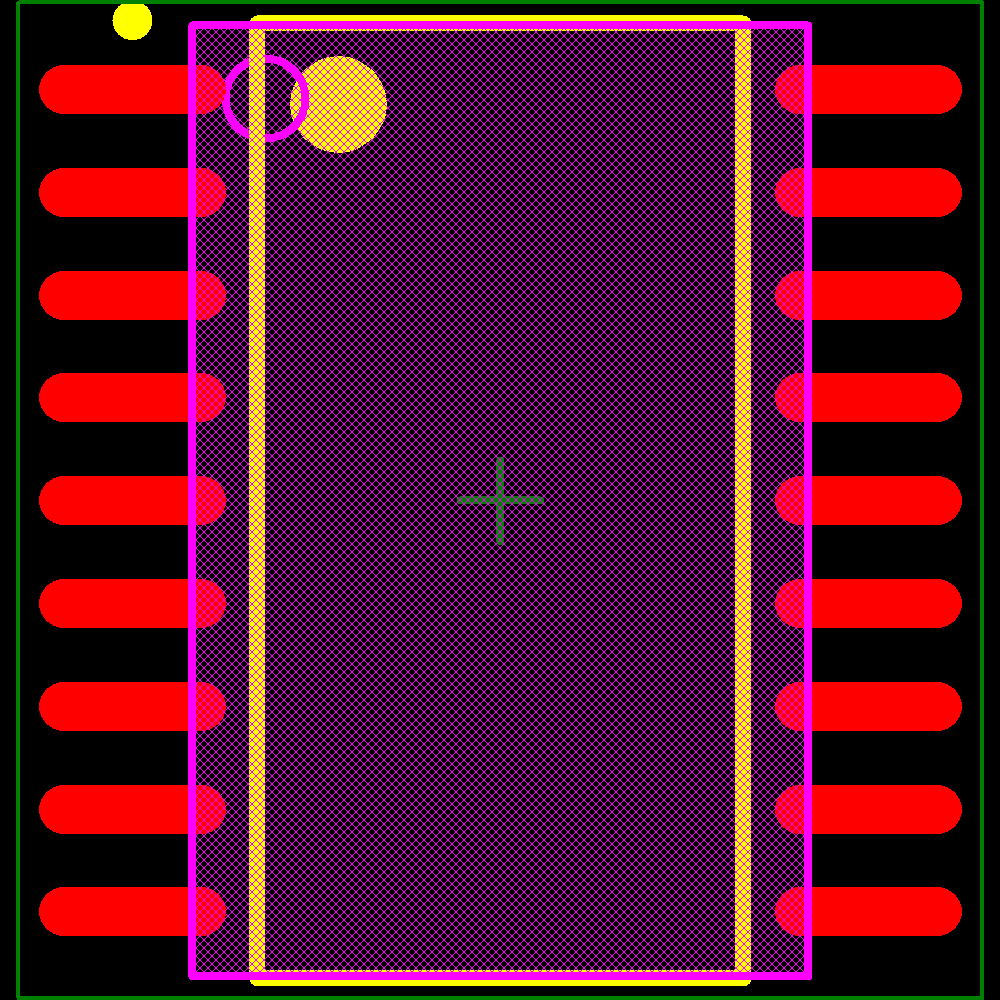

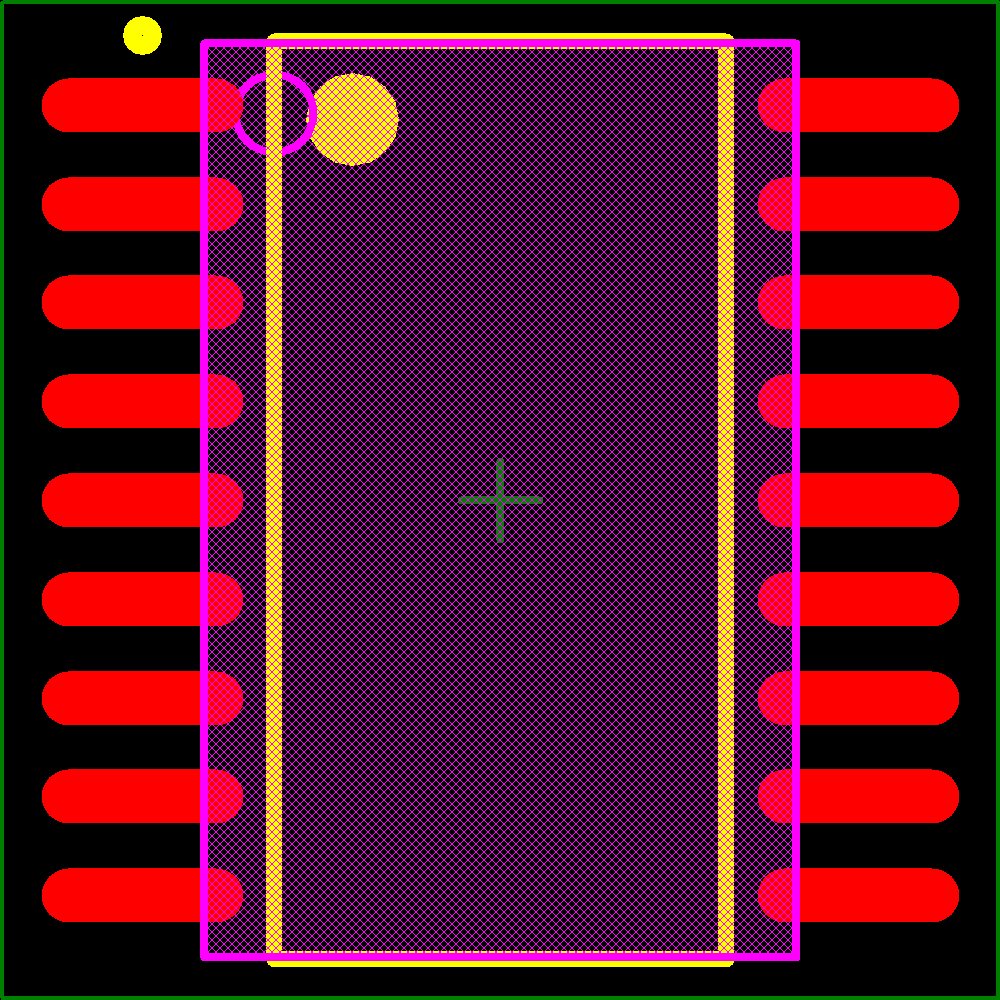

Footprint

‹ ›
