Integrated Circuits (ICs)  >  Embedded Processors and Controllers  >  Microcontrollers

Microchip - DSPIC30F3012-30I/ML

DSPIC30F3012-30I/ML - Microchip

MCU 16-bit dsPIC RISC 24KB Flash 3.3V/5V Automotive 44-Pin QFN EP Tube

 Datasheets

Technical Details

Projected EOL Date 2034-01-21
Core Architecture dsPIC
Country of Assembly Malaysia, Thailand
Country of Fabrication United States of America
Country of Origin Malaysia, Thailand
Data Bus Width 16b
Export Control Classification Number (ECCN) Code 3A991.a.2
Frequency 30MHz
Height 950µm
Harmonized Tariff Schedule (HTS) Code 8542.31.0020
Interface I2C, SPI, UART, USART
Introduction Date 2005-01-21
Lead Free Lead Free
Length 8mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Frequency 30MHz
Max Operating Temperature 85°C
Max Supply Voltage 5.5V
Memory Size 24kB
Memory Type FLASH
Min Operating Temperature -40°C
Min Supply Voltage 2.5V
Mount Surface Mount
Number of ADC Channels 8
Number of I2C Channels 1
Number of Pins 44
Number of Programmable I/O 12
Number of SPI Channels 1
Number of Timers/Counters 3
Number of UART Channels 1
Packaging Bulk
Peripherals I2C, PWM
Radiation Hardening No
RAM Size 2kB
RoHS Compliant
Watchdog Timer Yes
Width 8mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

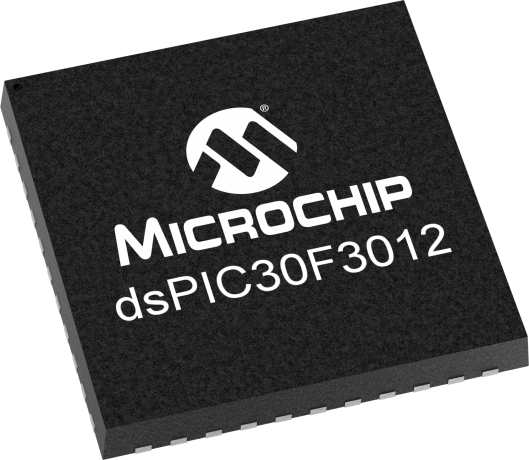

Images

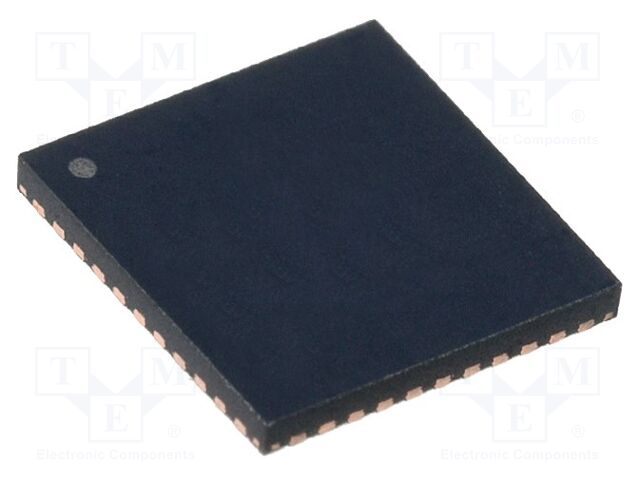

Microchip DSPIC30F3012-30I/ML | TME

TME

Datasheets

 DigiKey
 TME
 Microchip

Lifecycle Status Indicator

   Production

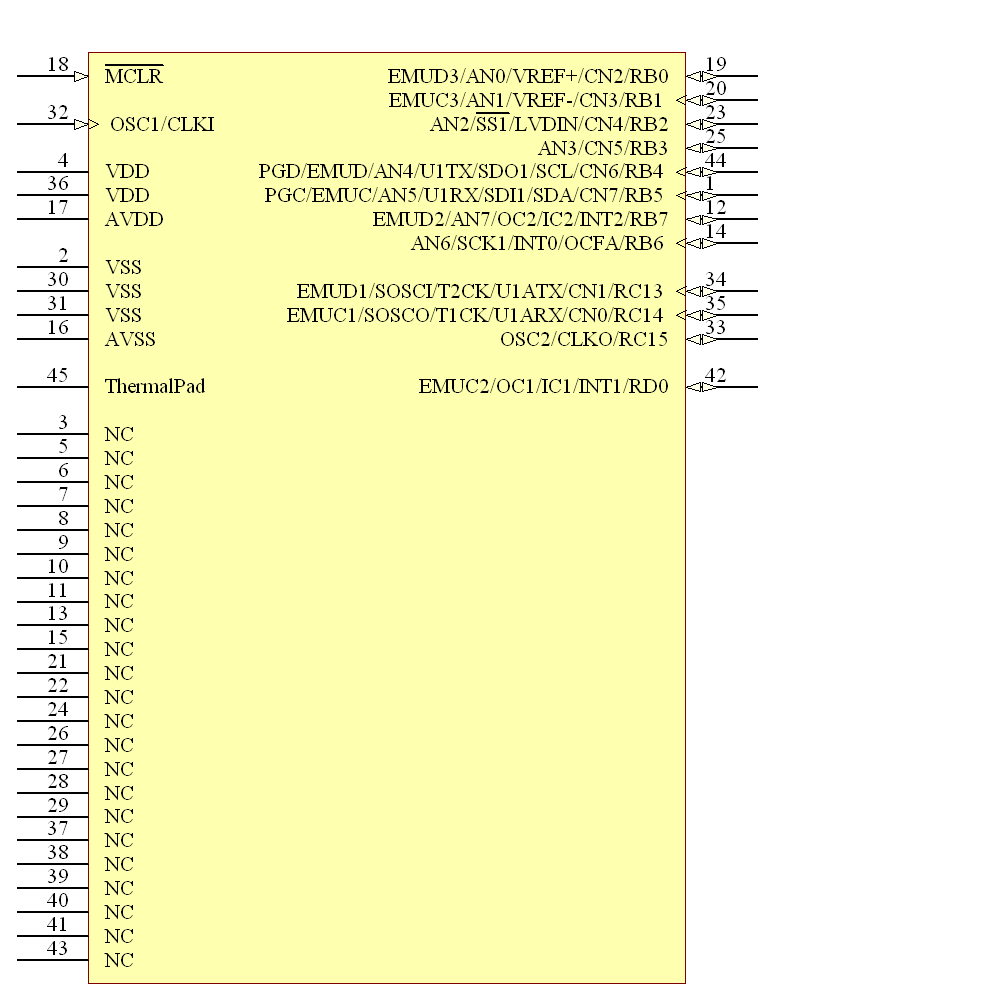

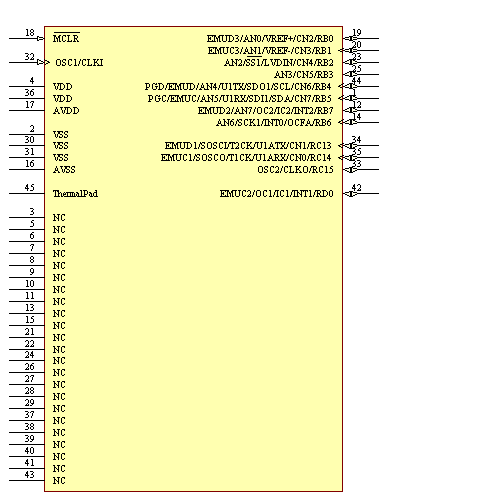

Symbol

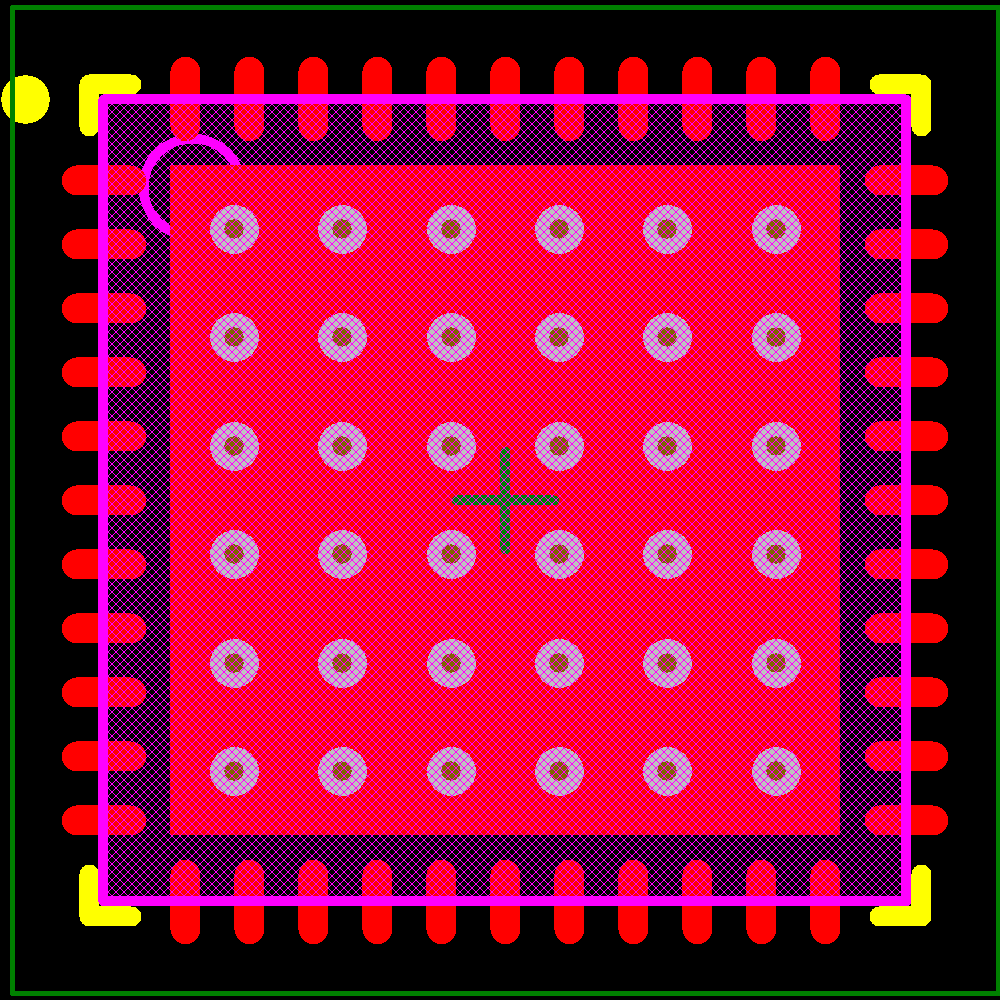

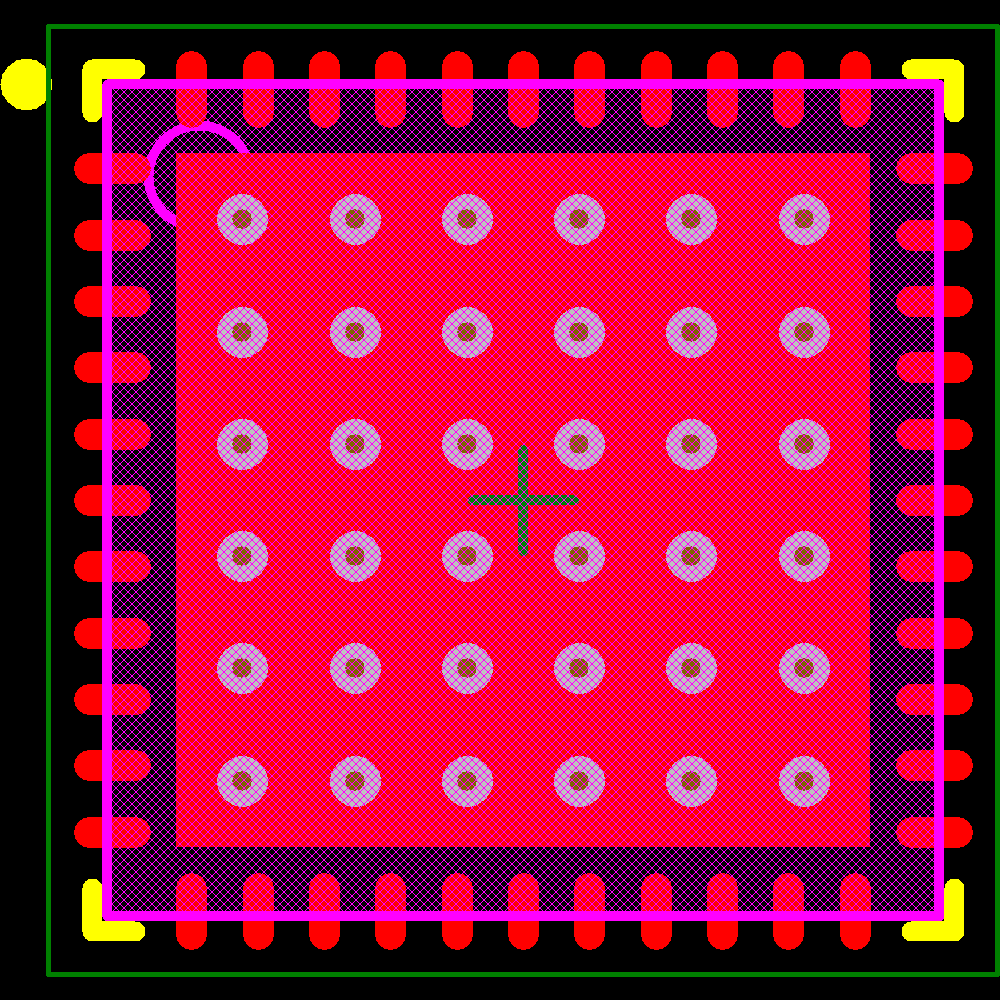

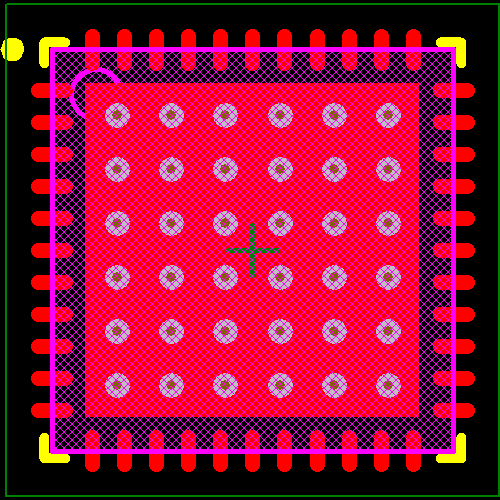

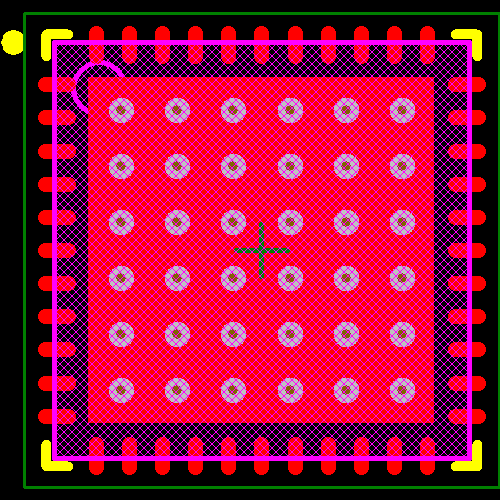

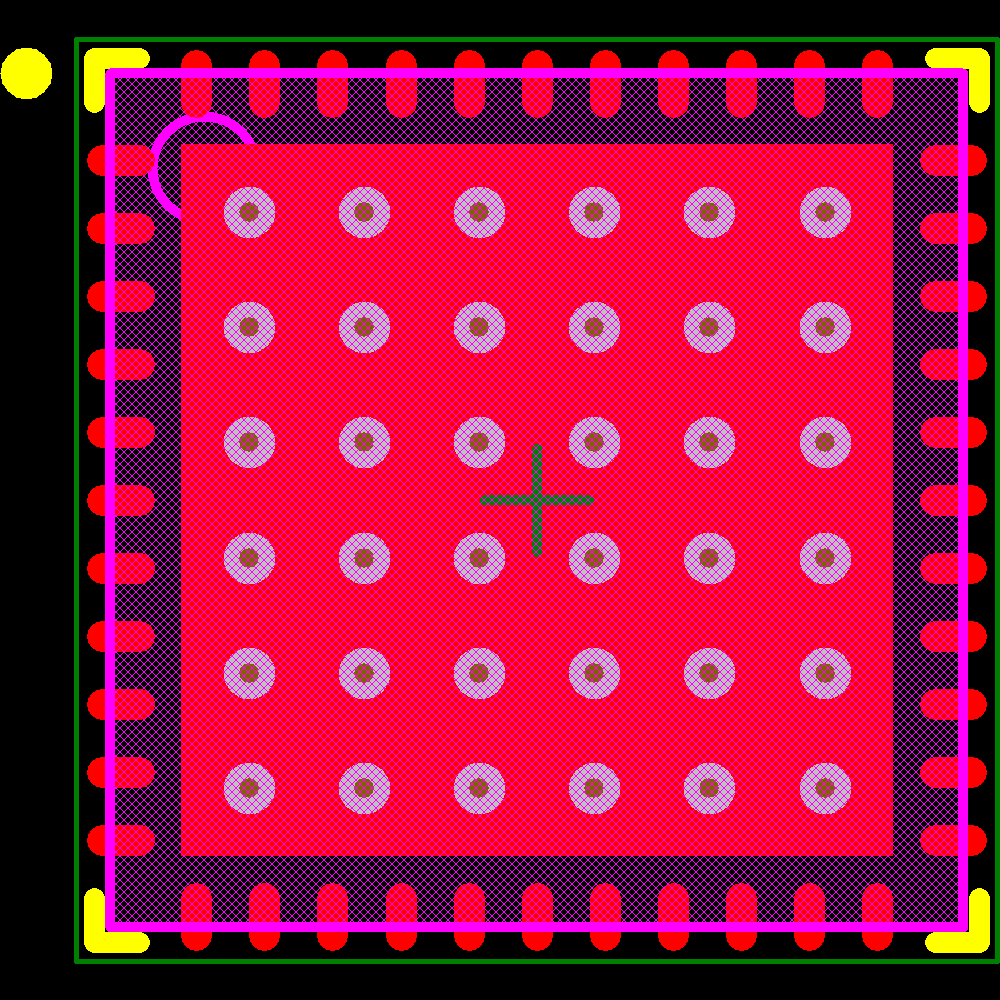

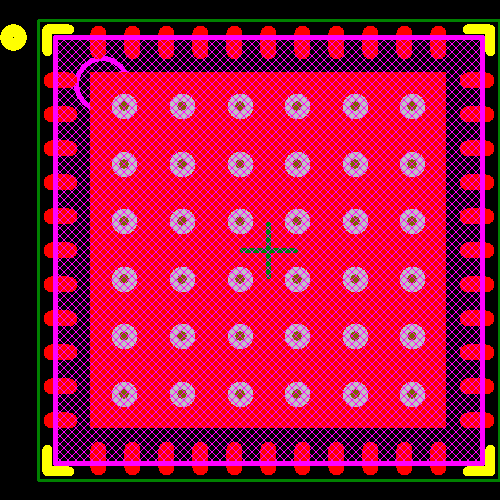

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
DSPIC30F3012T-30I/ML
Unknown
Microchip
DSPIC30F3012-30I/SO
Production
Microchip
DSPIC30F3012T-30I/SO
Unknown
Microchip
DSPIC30F3010T-30I/ML
Production
Microchip
DSPIC30F3010-20I/ML
Production
Microchip
DSPIC30F3011-20I/ML
Production
Microchip
DSPIC30F3011-20E/ML
Production
Microchip
DSPIC30F3012-20E/ML
Production
Microchip
DSPIC30F3012-20I/ML
Production
Microchip
DSPIC30F3010T-20I/ML
Unknown

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
DigiKey
DSPIC30F301230IML-ND
DE: 0
 $ 5.9773 5.9773
 Historical Pricing  Historical Stock Levels
Quantity
Location
TME
30F3012-30I/ML
PL: 0
 $ 8.0128 7.7539 7.2362 7.2362 6.7184 6.7184
 Historical Pricing  Historical Stock Levels
Quantity
Location
Microchip
DSPIC30F3012-30I/ML
US: 1035
 $ 5.34 4.66
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
3625598
DE: 0
 $ 6.0651 6.0651
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet Silica
DSPIC30F3012-30I/ML
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Onlinecomponents.com
DSPIC30F3012-30I/ML
US: 0
 $ 11.62 5.61 5.61
 Historical Pricing  Historical Stock Levels
Quantity
Location
Future Electronics
9240649
CA: 0
 $ 5.74 5.70 5.67 5.67
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
DSPIC30F3012-30I/ML
US: 0
 $ 5.9605 5.6625
 Historical Pricing  Historical Stock Levels
Quantity
Location
Master Electronics
DSPIC30F3012-30I/ML
US: 0
 $ 11.62 5.61 5.61
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
DSPIC30F3012-30I/ML
US: 0
 $ 6.227 5.981
 Historical Pricing  Historical Stock Levels
Quantity
Location
NAC Semi
DSPIC30F3012-30I/ML
US: 810
 $ 6.04 5.52 5.52
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
DSPIC30F3012-30I/ML
US: 0
 $ 5.50 5.50
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Win Source
113936-DSPIC30F3012-30I/ML
CN: 1300
 $ 58.1427 38.7618 38.7618 38.7618 38.7618 38.7618
 Historical Pricing  Historical Stock Levels
Quantity
Location
Worldway Electronics
DSPIC30F3012-30I/ML
HK: 30911
 $ 1.1793 1.1793 1.1432 1.0831 1.0831
 Historical Pricing  Historical Stock Levels
Quantity
Location
Heisener Electronics
DSPIC30F3012-30I/ML
CN: 58771
 $ 5.9488 5.9488 5.9488 5.9488 5.9488 5.9488
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lixinc
DSPIC30F3012-30I/ML
CN: 18758
 $ 4.563 4.563 4.563 4.563 3.8566 3.8566
 Historical Pricing  Historical Stock Levels
Quantity
Location
SHENGYU ELECTRONICS
DSPIC30F3012-30I/ML
CN: 12020
 $ 2.4441 2.3952 2.3952 2.32 2.25 2.15
 Historical Pricing  Historical Stock Levels
Quantity
Location
VNN Services
DSPIC30F3012-30I/ML
EU: 5631
 $ 4.77 4.67 4.67 4.58 4.49 4.49
 Historical Pricing  Historical Stock Levels
Quantity
Location
Fly-Wing Technology
DSPIC30F3012-30I/ML
HK: 1261
 $ 47.823 39.2398 39.2398 38.0133 35.5604 35.5604
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bison Technologies
DSPIC30F3012-30I-ML-101174
CN: 5901
 $ 2.21 2.21 2.21
 Historical Pricing  Historical Stock Levels
Quantity
Location
Suntronic
DSPIC30F3012-30I/ML
CN: 308
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lingto Electronic Ltd.
DSPIC30F3012-30I/ML
CN: 44707
 $ 5.79 5.5005 5.5005 5.211 5.1531 5.0952
 Historical Pricing  Historical Stock Levels
Quantity
Location
Abacus Technologies
DSPIC30F3012-30IML
US: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
