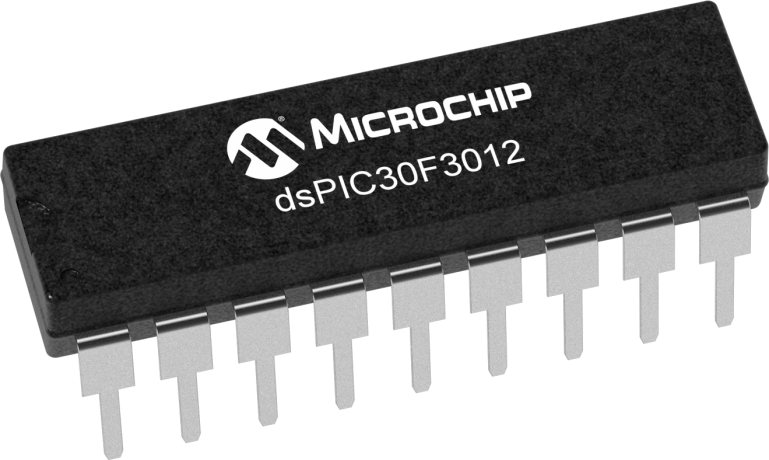

DSPIC30F3012-30I/P - Microchip
16-bit MCU/DSC, 24 KB, 2048 Bytes, 120 MHz, 2.5 to 5.5V, PDIP-18, RoHS
Technical Details
| Projected EOL Date | 2034-01-21 |
| Case/Package | PDIP |
| Core Architecture | dsPIC |
| Country of Assembly | Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Thailand |
| Data Bus Width | 16b |
| Density | 192kb |
| Export Control Classification Number (ECCN) Code | 3A991.a.2 |
| Frequency | 30MHz |
| Height | 4.953mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.0020 |
| Interface | I2C, SPI, UART, USART |
| Introduction Date | 2005-01-21 |
| Lead Free | Lead Free |
| Length | 23.37mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Frequency | 30MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 24kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Through Hole |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 8 |
| Number of Bits | 16 |
| Number of I2C Channels | 1 |
| Number of I/Os | 12 |
| Number of Pins | 18 |
| Number of Programmable I/O | 12 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Packaging | Bulk |
| Peripherals | Brown-out Detect/Reset, I2C, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 2kB |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542310000, 8542310000|8542310000|8542310000|8542310000|8542310000 |
| Watchdog Timer | Yes |
| Width | 7.112mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
