HV9861ALG-G - Microchip
LED Driver DC/DC, Buck, Constant Current, Isolated, 15 V to 450 V, 165 mA, 8 Pins, NSOIC
Technical Details
| Projected EOL Date | 2039-06-13 |
| Ambient Temperature Range High | 125°C |
| Case/Package | SOIC |
| Country of Assembly | Thailand |
| Country of Fabrication | Taiwan |
| Country of Origin | Thailand |
| Dimming | Analog, PWM |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.75mm |
| High Level Output Current | 165mA |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.0095 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Low Level Output Current | 165mA |
| Manufacturer Lifecycle Status | REL |
| Max Input Voltage | 450V |
| Max Input Voltage (DC) | 450V |
| Max Operating Temperature | 125°C |
| Max Output Power | 650mW |
| Max Power Dissipation | 650mW |
| Max Supply Current | 3.5mA |
| Max Supply Voltage | 450V |
| Min Input Voltage | 15V |
| Min Input Voltage (DC) | 15V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 15V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Number of Segments | 1 |
| Packaging | Cut Tape |
| Power Dissipation | 650mW |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080 |
| Topology | Buck |
| Weight | 540.001716mg |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

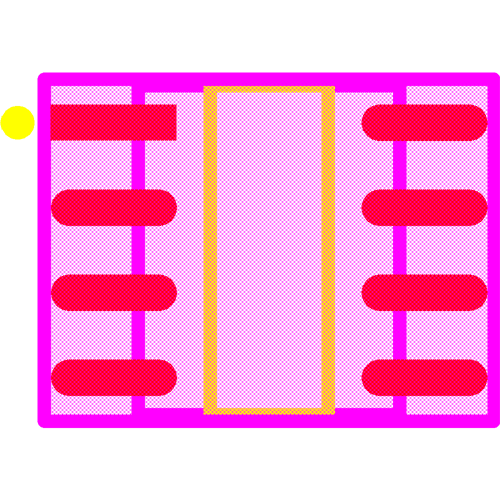

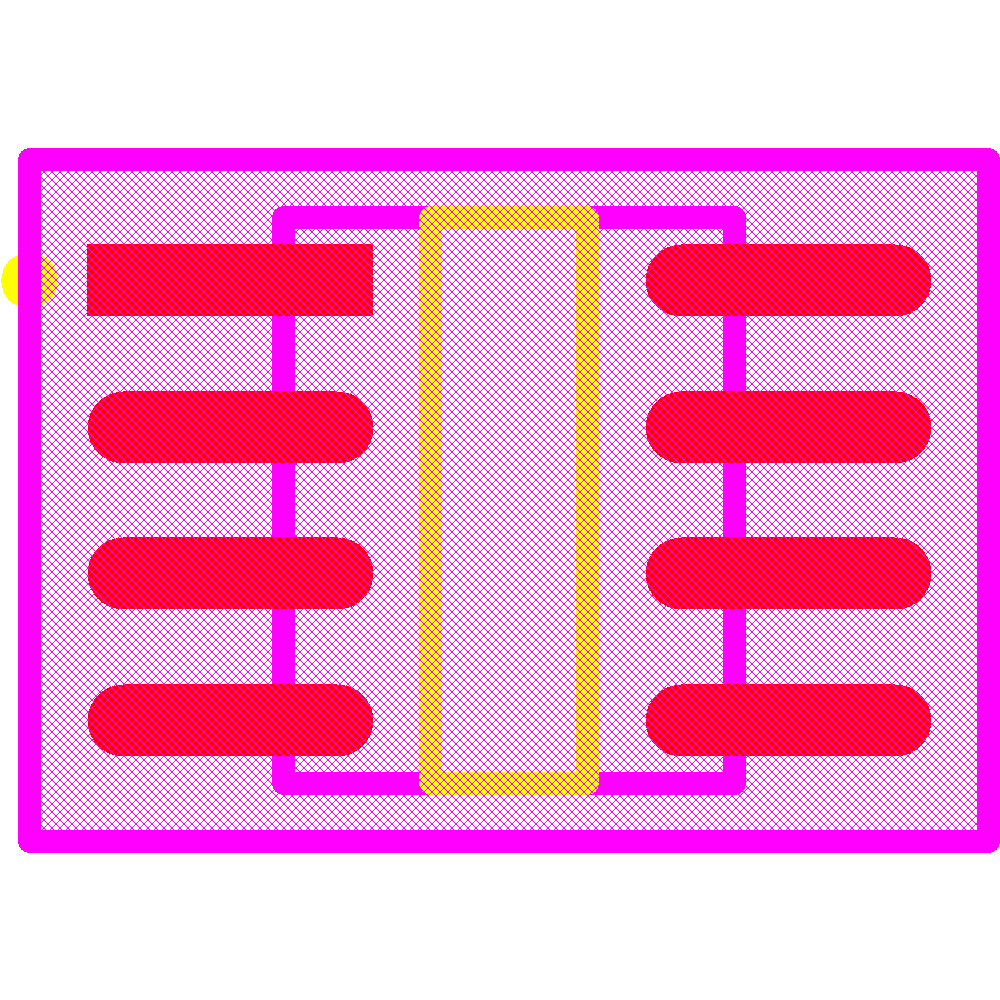

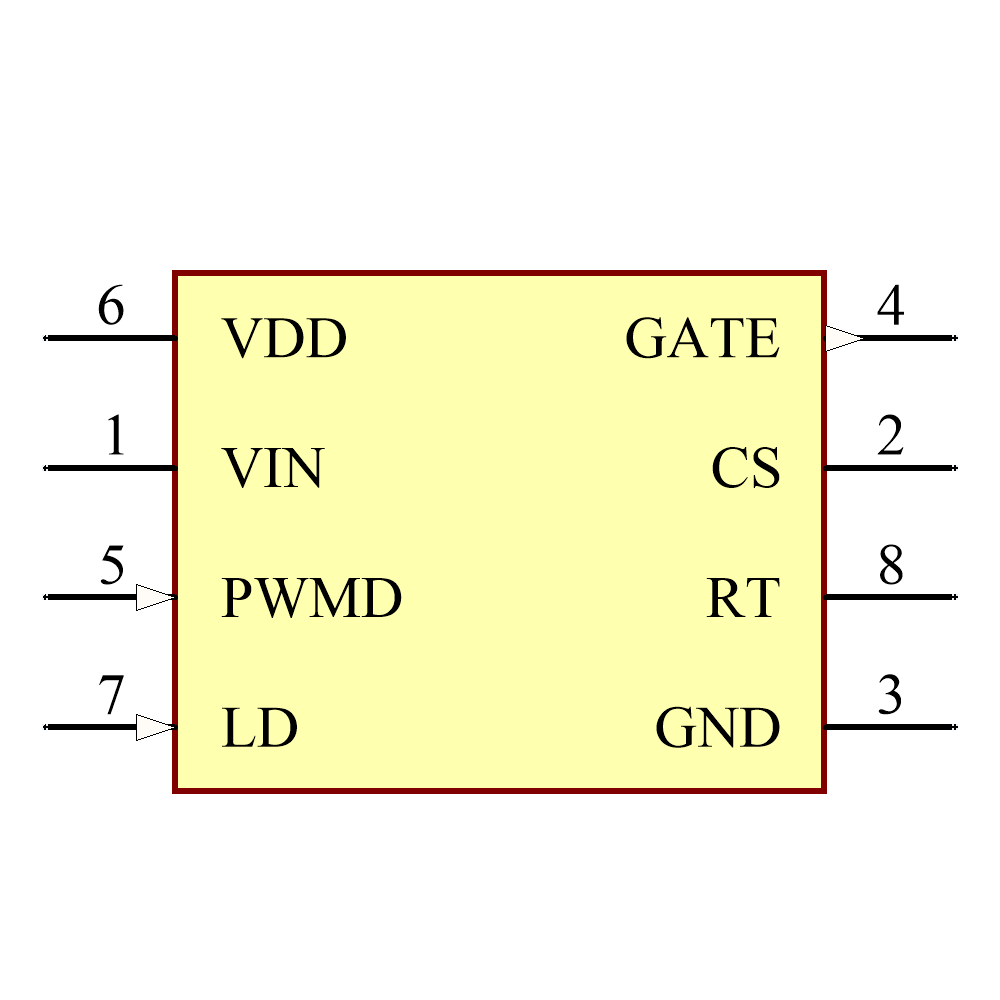

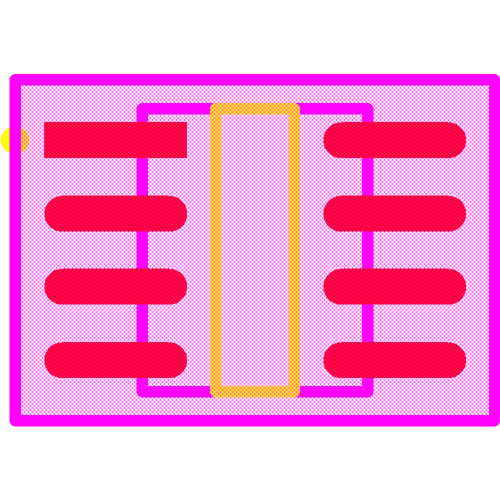

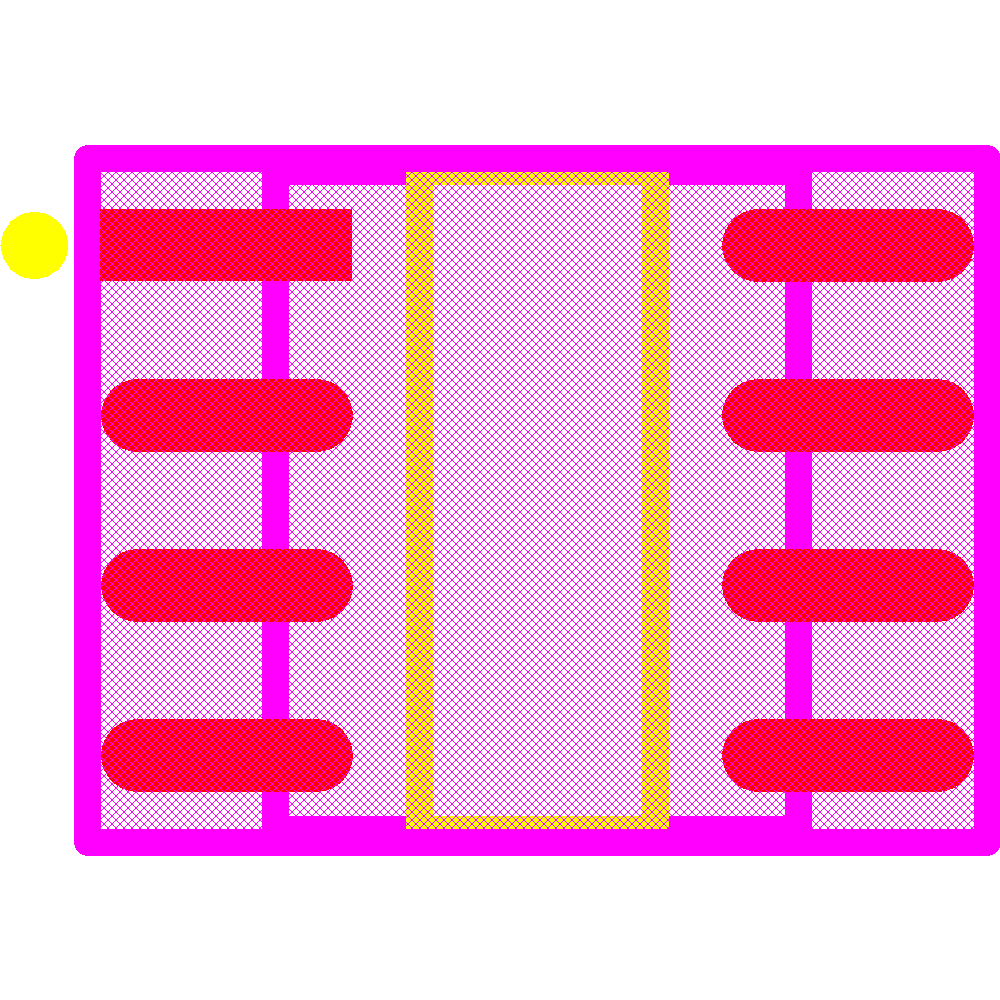

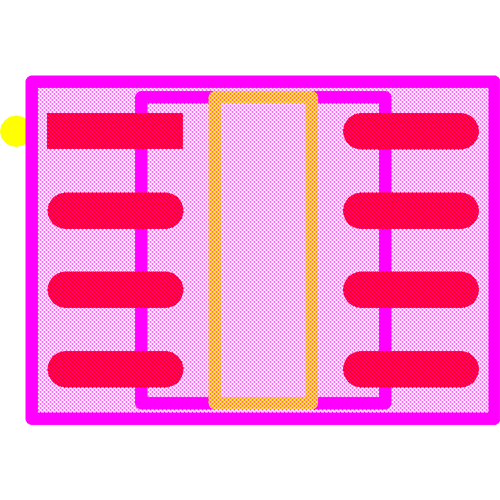

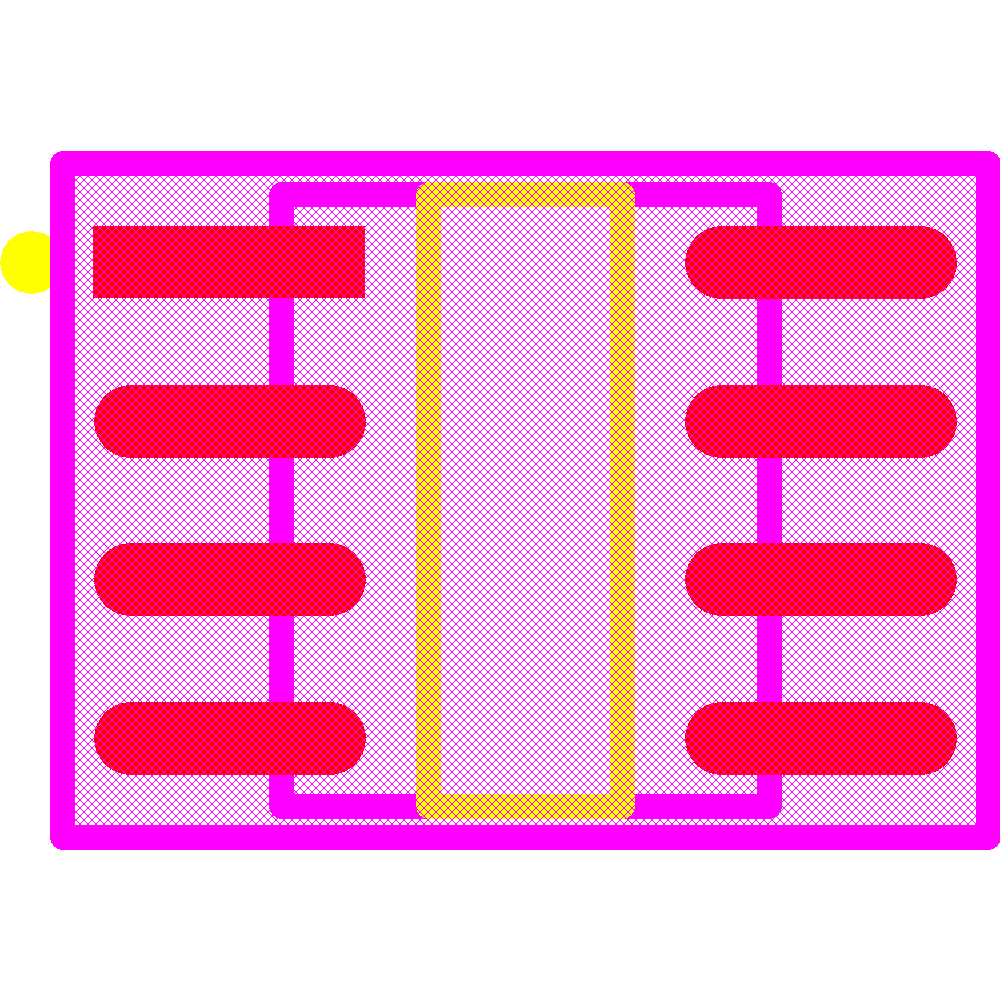

Images
