HV9910CSG-G - Microchip
Universal High Brightness Led Driver 8 SOIC 3.90MM(.150IN) T/r Rohs Compliant: Yes
Technical Details
| Projected EOL Date | 2039-06-13 |
| Case/Package | SOIC |
| Country of Assembly | Malaysia, Thailand |
| Country of Fabrication | Taiwan |
| Country of Origin | Malaysia |
| Dimming | Analog, PWM |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 100kHz |
| Height | 1.7mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.0095 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Input Voltage | 450V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 1.3W |
| Max Supply Voltage | 450V |
| Min Input Voltage | 15V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 15V |
| Mount | Surface Mount |
| Nominal Supply Current | 800µA |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Output Type | Frequency |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080 |
| Topology | Buck |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

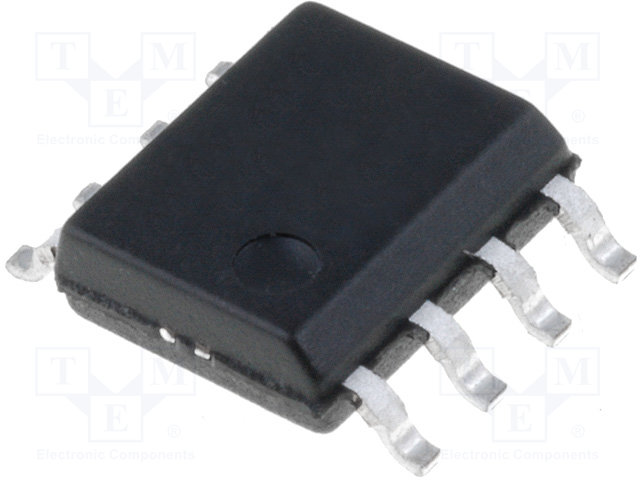

Images
