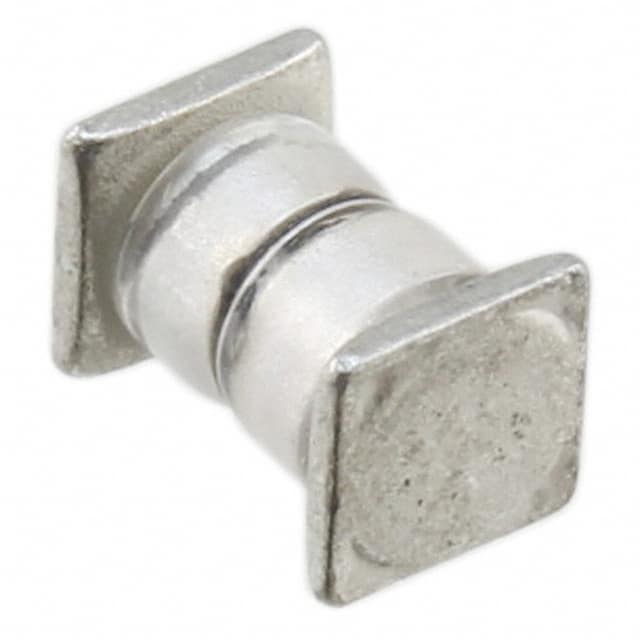

JANTXV1N6105AUS - Microchip
TVS DIODE 6.9VWM 13.4VC SQ-MELF "13.4V Clamp 37.3A Ipp Tvs Diode Surface Mount B, SQ-MELF"
Technical Details
| Projected EOL Date | 2049-02-05 |
| Case/Package | MELF |
| Clamping Voltage | 13.4V |
| Composition | Zener |
| Contact Plating | Lead, Tin |
| Country of Assembly | Philippines |
| Country of Fabrication | United States of America |
| Country of Origin | PHL |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.0080 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Operating Temperature | 175°C |
| Min Breakdown Voltage | 8.65V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Peak Pulse Current | 37.3A |
| Peak Pulse Power | 500W |
| Power Line Protection | No |
| Reverse Standoff Voltage | 6.9V |
| RoHS | Non-Compliant |
Compliance
RoHS : Unconfirmed
