MCP103T-240E/TT - Microchip
IC SUPERVISOR 1 CHANNEL SOT23-3 "Supervisor Push-Pull, Totem Pole 1 Channel SOT-23-3"
Technical Details
| Projected EOL Date | 2034-10-01 |
| Country of Assembly | Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Thailand |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Introduction Date | 2004-10-01 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Operating Temperature | 125°C |
| Max Reset Threshold Voltage | 2.355V |
| Max Supply Current | 1.75µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 2.285V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Pins | 3 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 1.75µA |
| Overvoltage Threshold | 2.355V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 1µA |
| Radiation Hardening | No |
| Reset | Active Low |
| RoHS | Compliant |
| Threshold Voltage | 2.32V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.285V |
| Watchdog Timer | No |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

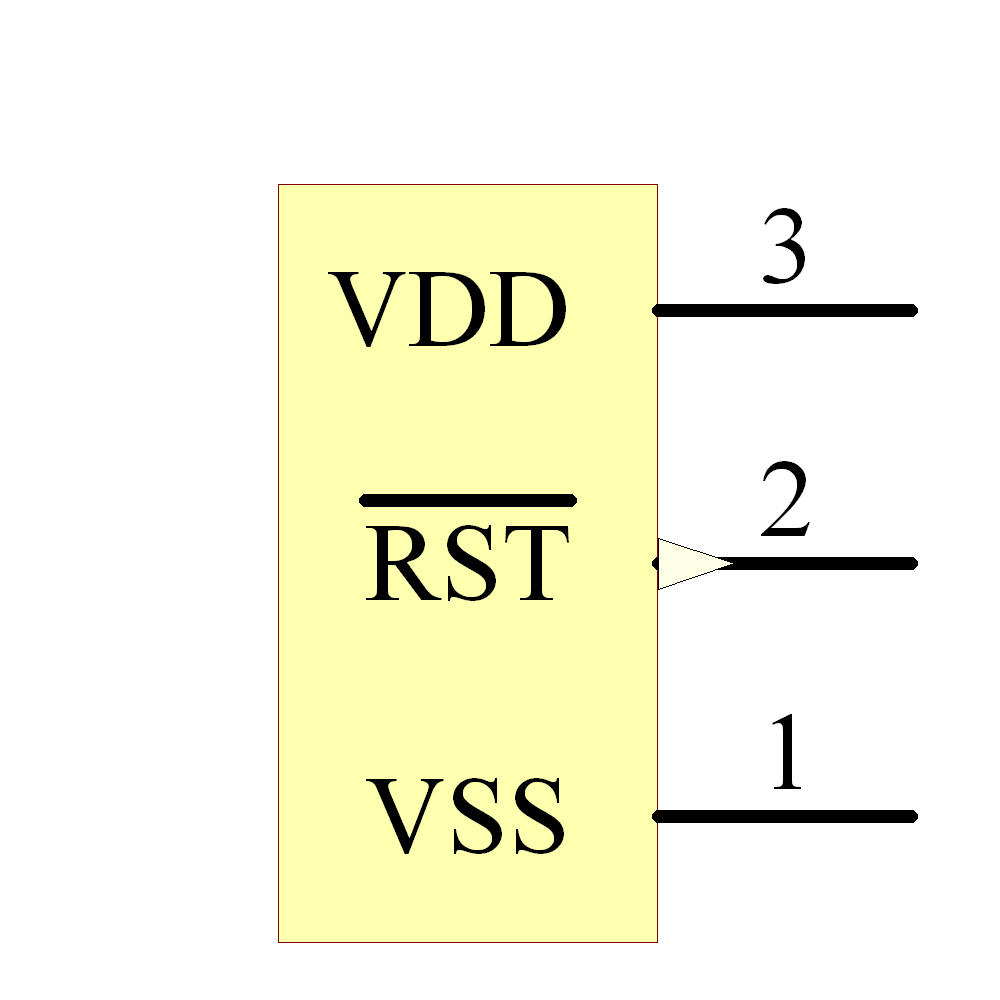

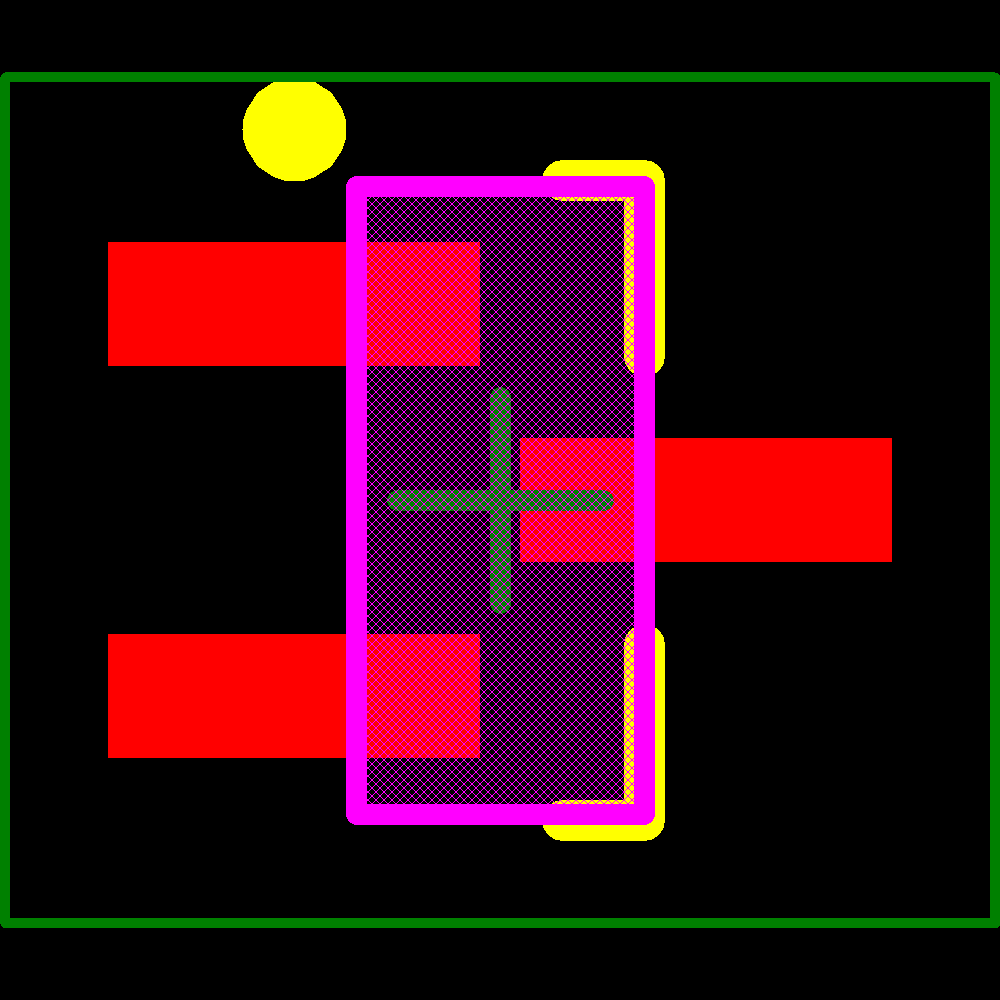

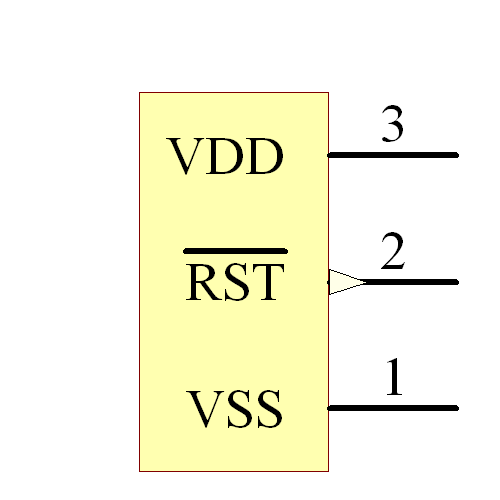

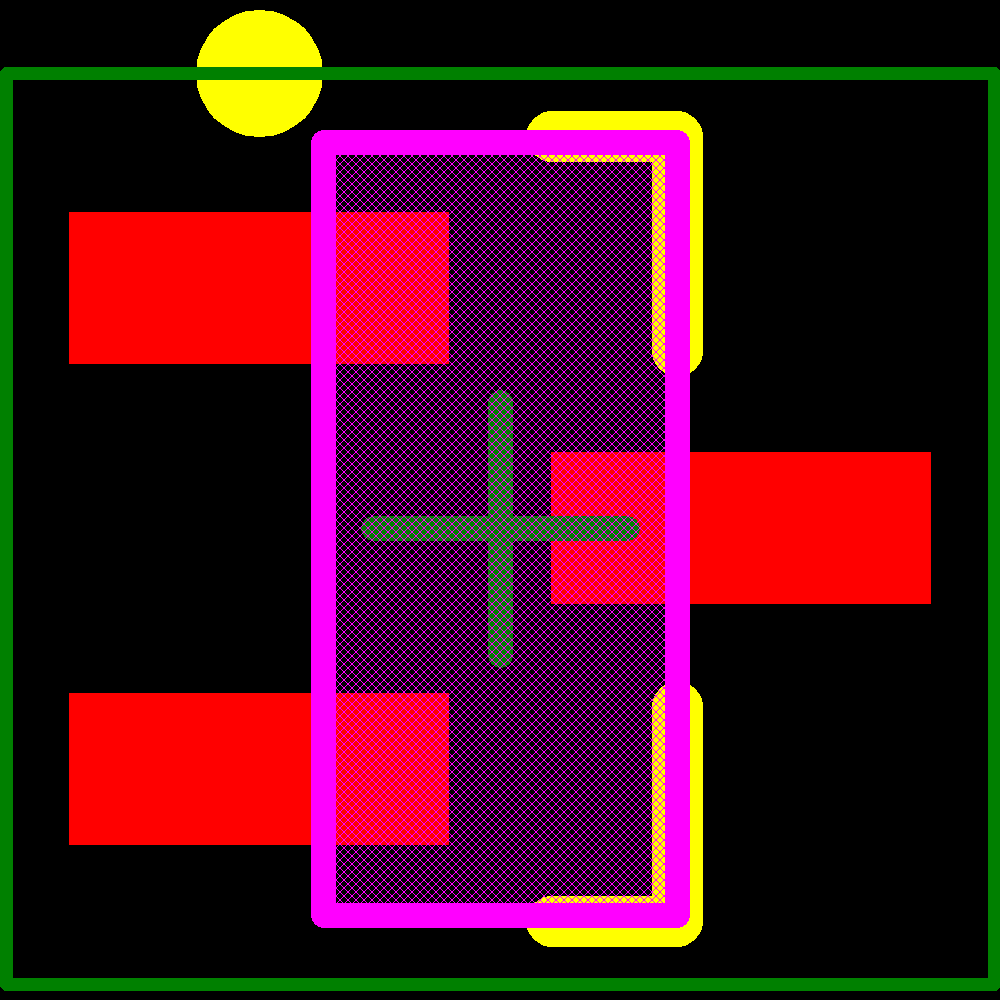

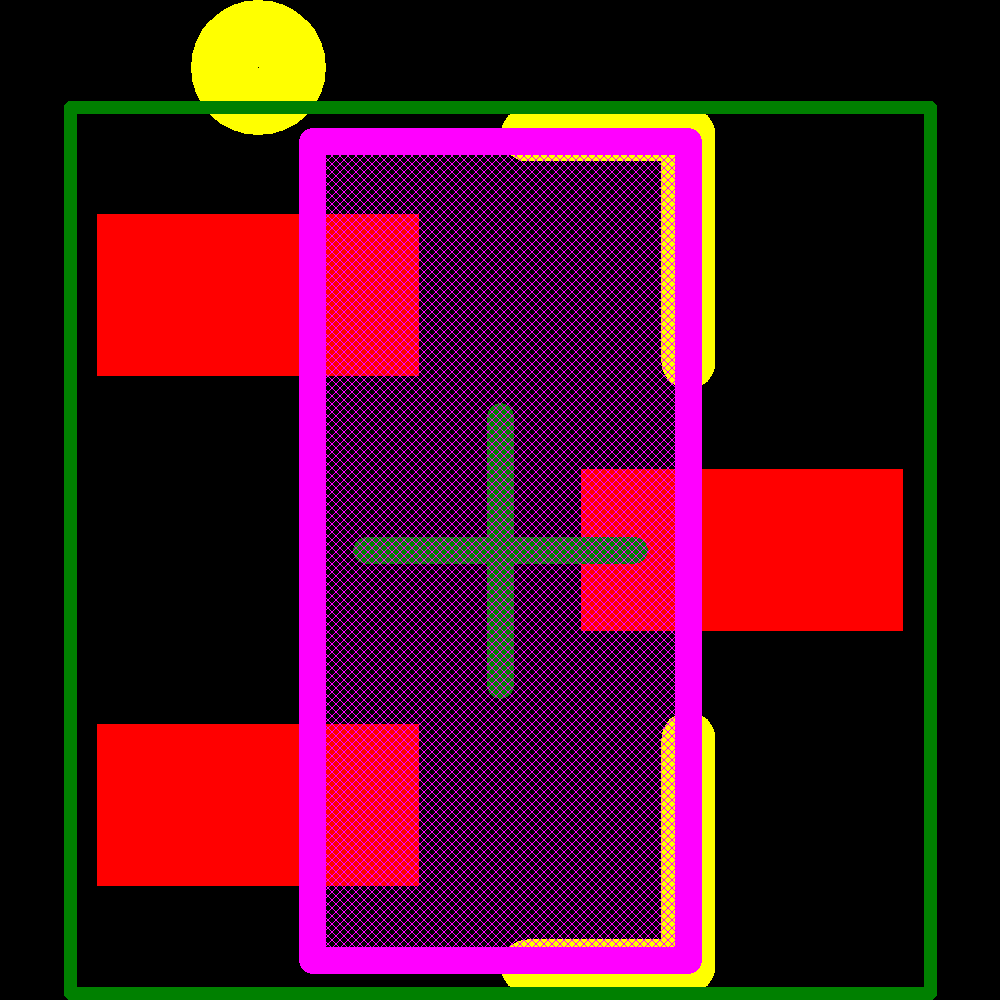

Images
Microchip
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| onsemi | Obsolete | ||
| Analog Devices | Production | ||
| onsemi | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Analog Devices | Unknown |
