Integrated Circuits (ICs)  >  Power Management ICs  >  Voltage Supervisors

Microchip - MCP120-315DI/TO

MCP120-315DI/TO - Microchip

Microchip MCP120-315DI/TO; Voltage Supervisor 3 - 3.15 V; 3-Pin TO-92

 Datasheets

Technical Details

Projected EOL Date 2034-01-01
Case/Package TO-92
Country of Assembly Philippines, Taiwan
Country of Fabrication United States of America
Country of Origin Philippines, Taiwan
Export Control Classification Number (ECCN) Code EAR99
Height 4.95mm
Harmonized Tariff Schedule (HTS) Code 8542.39.0060
Introduction Date 2002-01-01
Lead Free Lead Free
Length 4.95mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Operating Temperature 85°C
Max Reset Threshold Voltage 3.15V
Max Supply Current 60µA
Max Supply Voltage 5.5V
Min Operating Temperature -40°C
Min Reset Threshold Voltage 3V
Min Supply Voltage 1V
Mount Through Hole
Nominal Supply Current 60µA
Number of Elements 1
Number of Pins 3
Number of Voltages Monitored 1
Operating Supply Current 60µA
Overvoltage Threshold 3.15V
Packaging Bulk
Quiescent Current 45µA
Radiation Hardening No
REACH SVHC No
Reset Active Low
Reset Timeout 150ms
RoHS Compliant
Threshold Voltage 3.075V
Type Simple Reset/Power-On Reset
Undervoltage Threshold 3V
Watchdog Timer No
Width 3.94mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

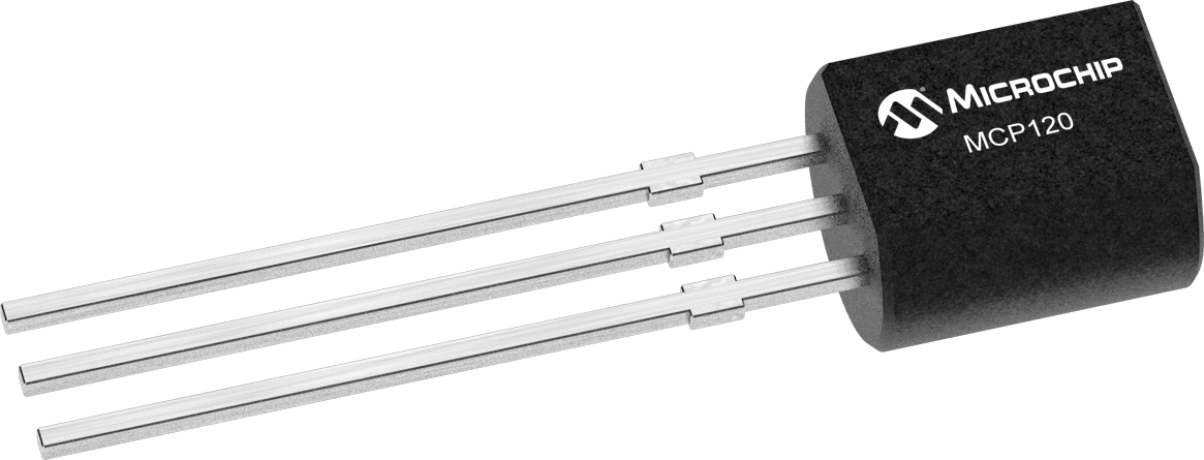

Images

Microchip MCP120-315DI/TO | Future Electronics

Future Electronics

Datasheets

 DigiKey
 Future Electronics
 Mouser

Lifecycle Status Indicator

   Production

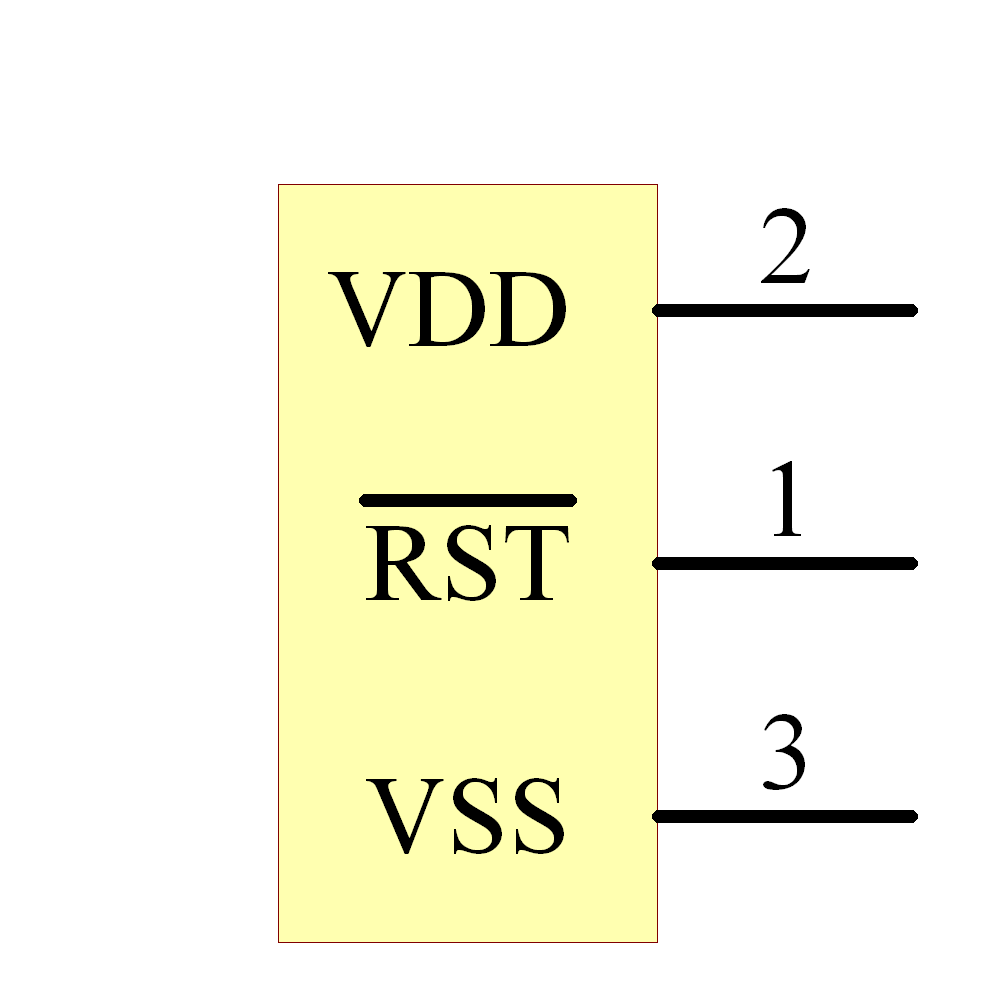

Symbol

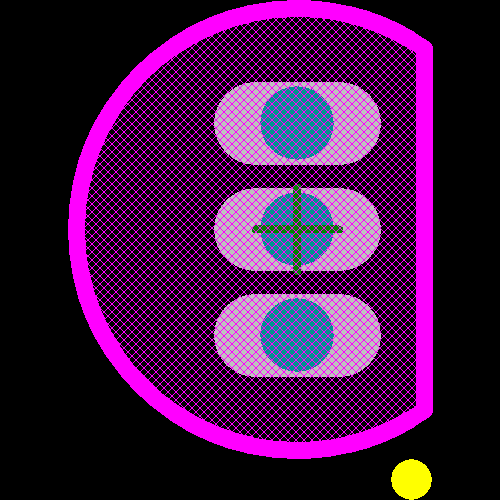

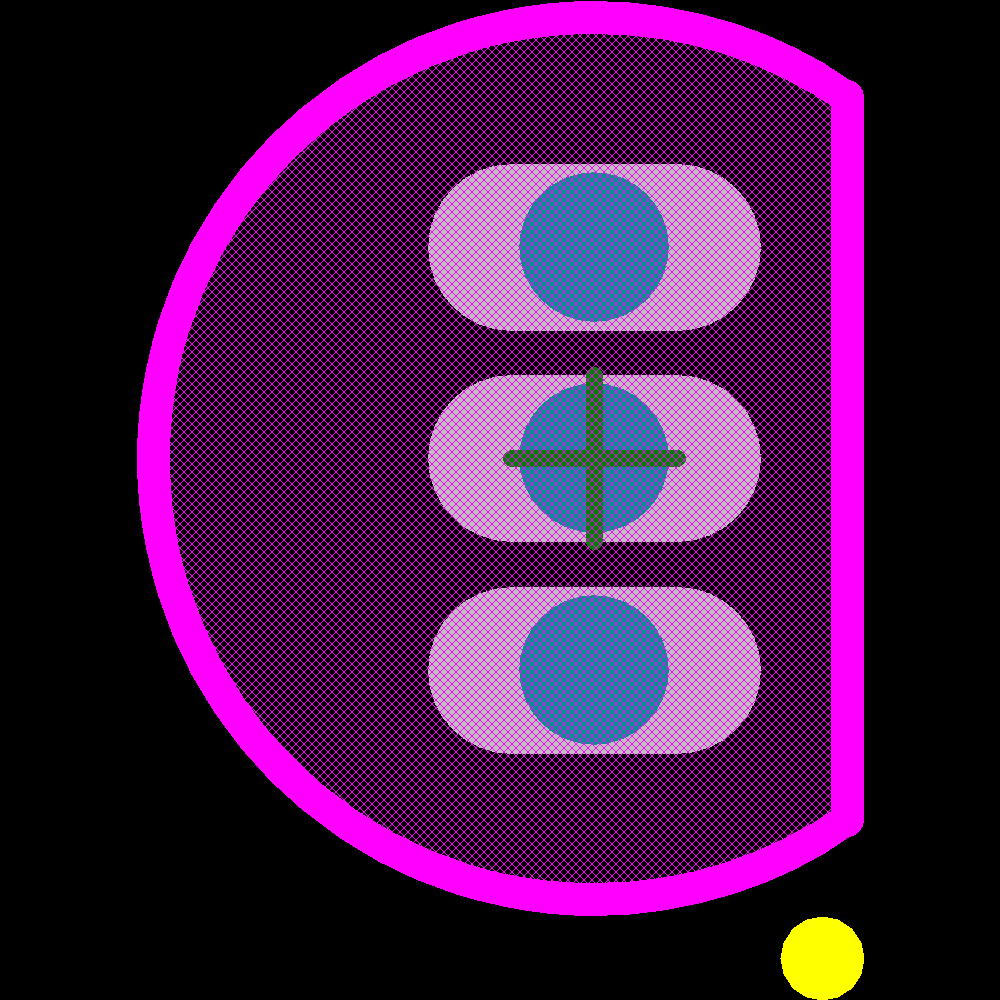

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
MCP130-315DI/TO
Production
Microchip
MCP130-315FI/TO
Production
Microchip
MCP130-315HI/TO
Production
Microchip
MCP130-315I/SN
Production
Microchip
MCP130T-315I/SN
Production
Microchip
MCP120T-315I/SN
Production
Microchip
MCP120-315GI/TO
Production
Microchip
MCP120T-315I/TT
Production
Microchip
MCP120-315HI/TO
Production
Microchip
MCP120-315I/SN
Production

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
DigiKey
MCP120-315DI/TO-ND
DE: 645
 $ 0.6287 0.6287 0.5276 0.6287 0.6287 0.6287
 Historical Pricing  Historical Stock Levels
Quantity
Location
Future Electronics
7840598
CA: 2000
 $ 0.235 0.225 0.215
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
579-MCP120-315DI/TO
US: 1894
 $ 0.60 0.60 0.50 0.46 0.46 0.46
 Historical Pricing  Historical Stock Levels
Quantity
Location
Microchip
MCP120-315DI/TO
US: 11850
 $ 0.60 0.60 0.50 0.46 0.37 0.35
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
3020915
GB: 0
 $ 0.6097 0.4736 0.4736 0.4328 0.3538 0.3538
 Historical Pricing  Historical Stock Levels
Quantity
Location
EBV Elektronik
MCP120-315DI/TO
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet Silica
MCP120-315DI/TO
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Onlinecomponents.com
MCP120-315DI/TO
US: 0
 $ 0.3433 0.3433 0.3103 0.2868
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
MCP120-315DI/TO
US: 0
 $ 0.2668
 Historical Pricing  Historical Stock Levels
Quantity
Location
Master Electronics
MCP120-315DI/TO
US: 0
 $ 0.3433 0.3433 0.3103 0.2868
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
MCP120-315DI/TO
US: 0
 $ 0.3269
 Historical Pricing  Historical Stock Levels
Quantity
Location
NAC Semi
MCP120-315DI/TO
US: 10000
 $ 0.29
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
MCP120-315DI/TO
US: 0
 $ 0.474
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Worldway Electronics
MCP120-315DI/TO
HK: 43573
 $ 0.1179 0.1179 0.1143 0.1083 0.1083
 Historical Pricing  Historical Stock Levels
Quantity
Location
AAA CHIPS
MCP120-315DI/TO
HK: 1205
 $ 0.3059 0.2969 0.2969 0.2879 0.2879 0.2879
 Historical Pricing  Historical Stock Levels
Quantity
Location
SHENGYU ELECTRONICS
MCP120-315DI/TO
CN: 12686
 $ 0.3415 0.3347 0.3347 0.32 0.31 0.30
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bettlink
MCP120-315DI/TO
HK: 641
 $ 0.51 0.4435 0.4435 0.396 0.3701 0.3325
 Historical Pricing  Historical Stock Levels
Quantity
Location
Suntronic
MCP120-315DI/TO
CN: 44210
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lingto Electronic Ltd.
MCP120-315DI/TO
CN: 16245
 $ 0.55 0.5225 0.5225 0.495 0.4895 0.484
 Historical Pricing  Historical Stock Levels
Quantity
Location
Abacus Technologies
MCP120-315DITO
US: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
