MCP120-485I/SN - Microchip
IC SUPERVISOR 1 CHANNEL 8SOIC Supervisor Open Drain or Open Collector 1 Channel 8-SOIC
Technical Details
| Projected EOL Date | 2034-01-01 |
| Case/Package | SOIC |
| Country of Assembly | Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Thailand |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Introduction Date | 2002-01-01 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Operating Temperature | 85°C |
| Max Reset Threshold Voltage | 4.85V |
| Max Supply Current | 60µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 4.6V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Nominal Supply Current | 60µA |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 60µA |
| Overvoltage Threshold | 4.85V |
| Packaging | Bulk |
| Quiescent Current | 45µA |
| Radiation Hardening | No |
| Reset | Active Low |
| RoHS | Compliant |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 4.6V |
| Watchdog Timer | No |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

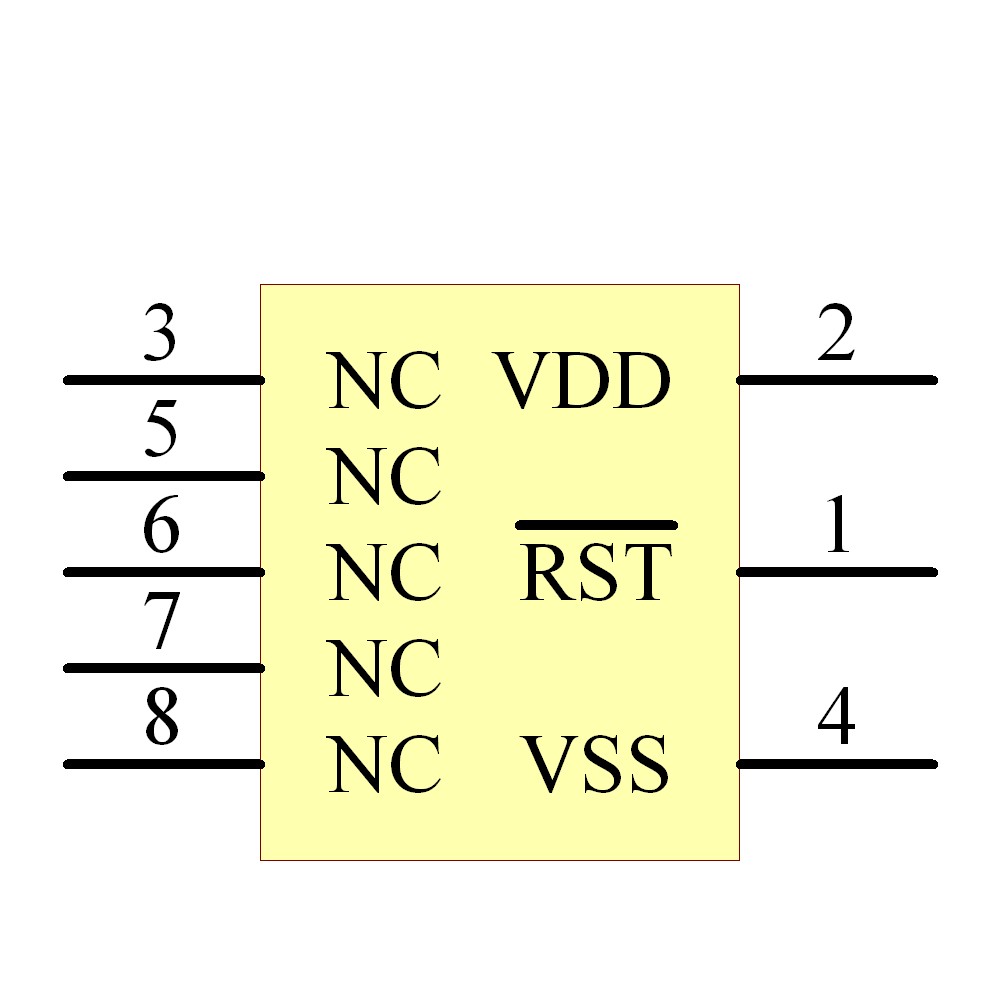

Images
Microchip
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production |
